| MODEL / TON | DCD30 | DCD60 | DCD100 | DCD150 | DCD200 | |
|---|---|---|---|---|---|---|
| Table Size | mm. | 500x500 | 400x600 | 600x800 | 600x900 | 700x1000 |
| Stroke | mm. | 400 | 400 | 400 | 500 | 500 |
| Daylight | mm. | 500 | 500 | 500 | 600 | 600 |
| Main Motor | kW. | 5,5 | 7 | 11 | 15 | 20 |
| Main Pump | lt. | 12 | 18 | 28 | 48 | 60 |
| Descending Speed | mm./sec. | 110 | 110 | 110 | 110 | 110 |
| Pressing Speed | mm./sec. | 10 | 10 | 10 | 10 | 10 |
| Return Speed | mm./sec. | 140 | 140 | 140 | 140 | 140 |

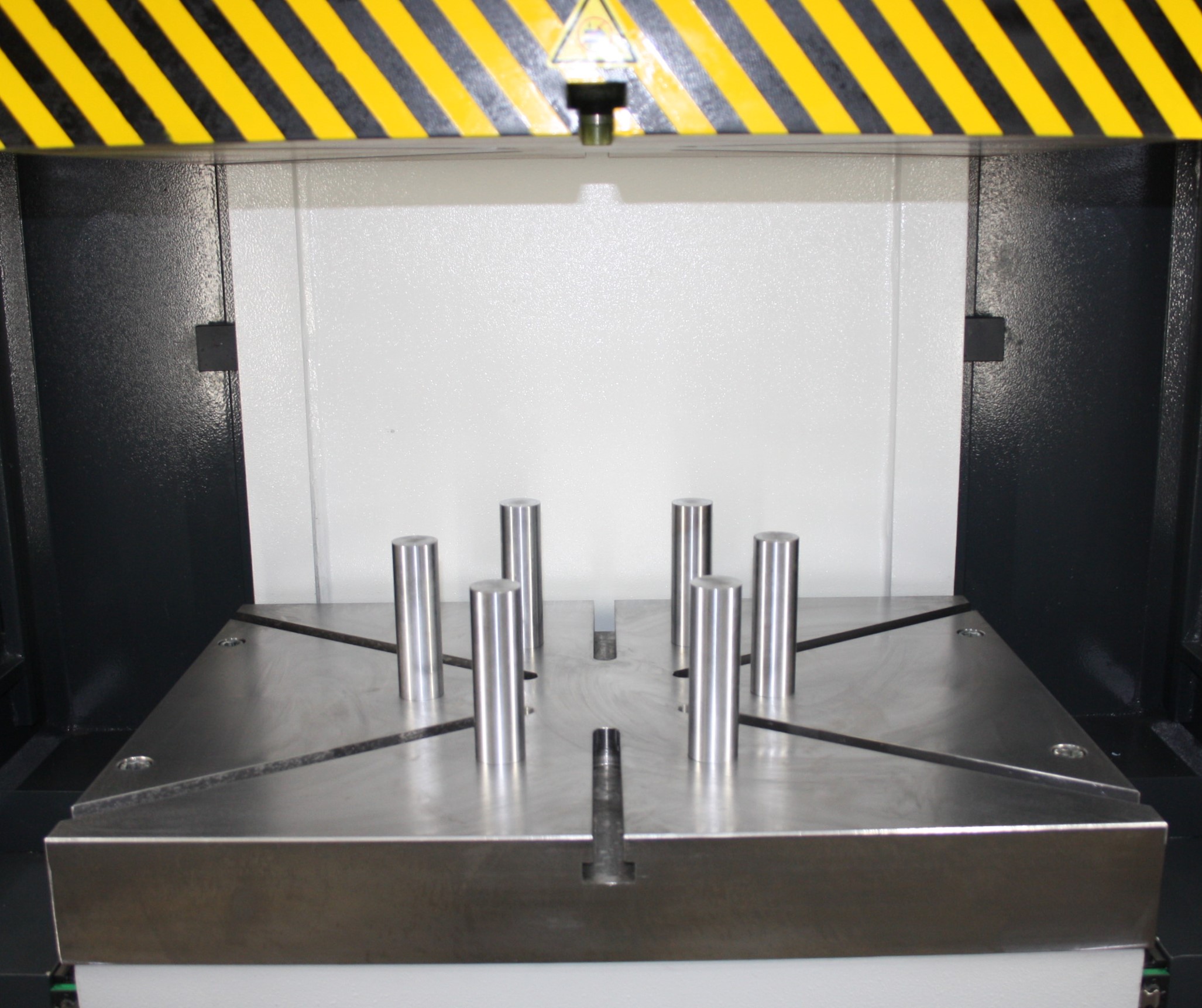

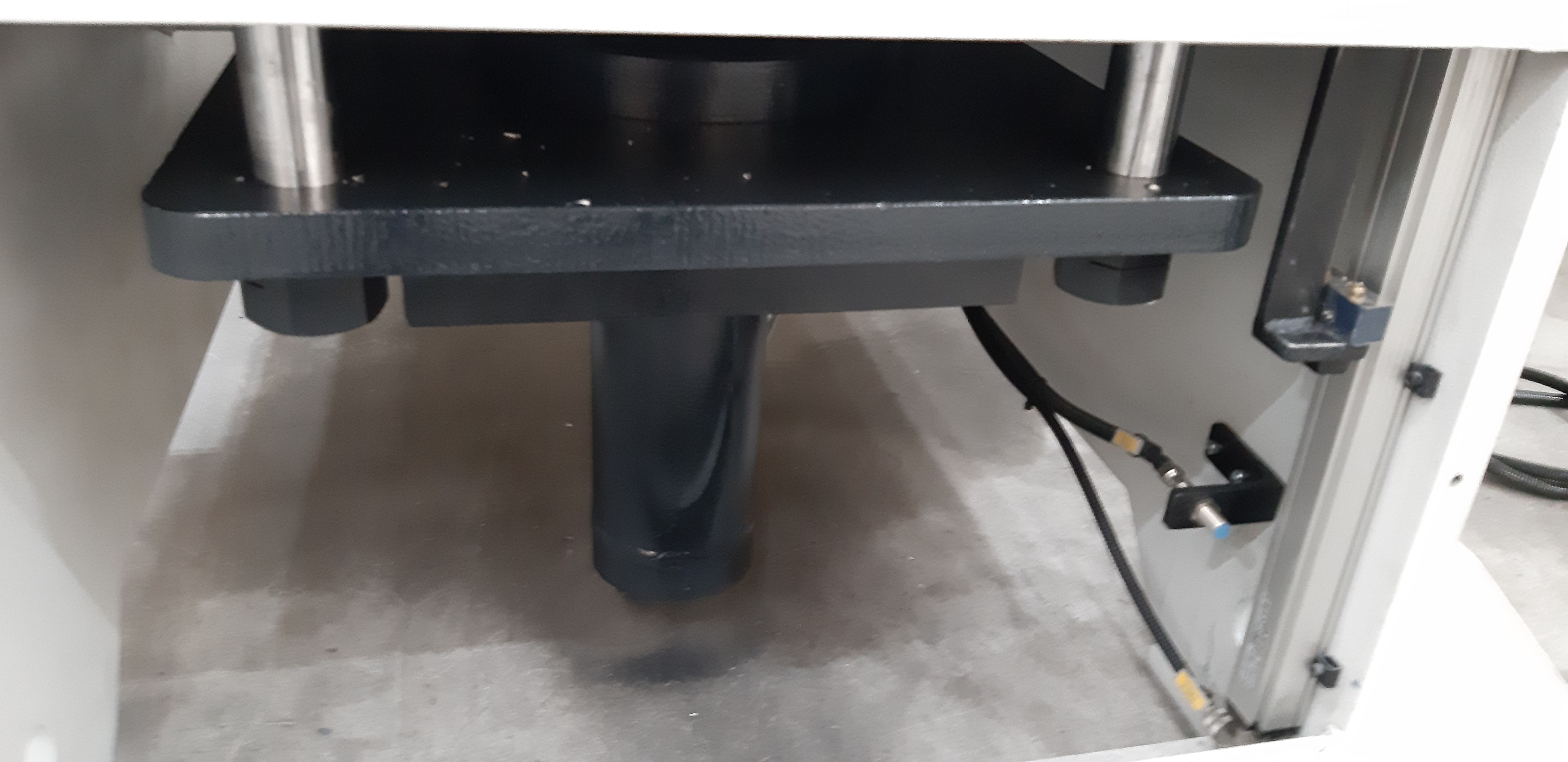

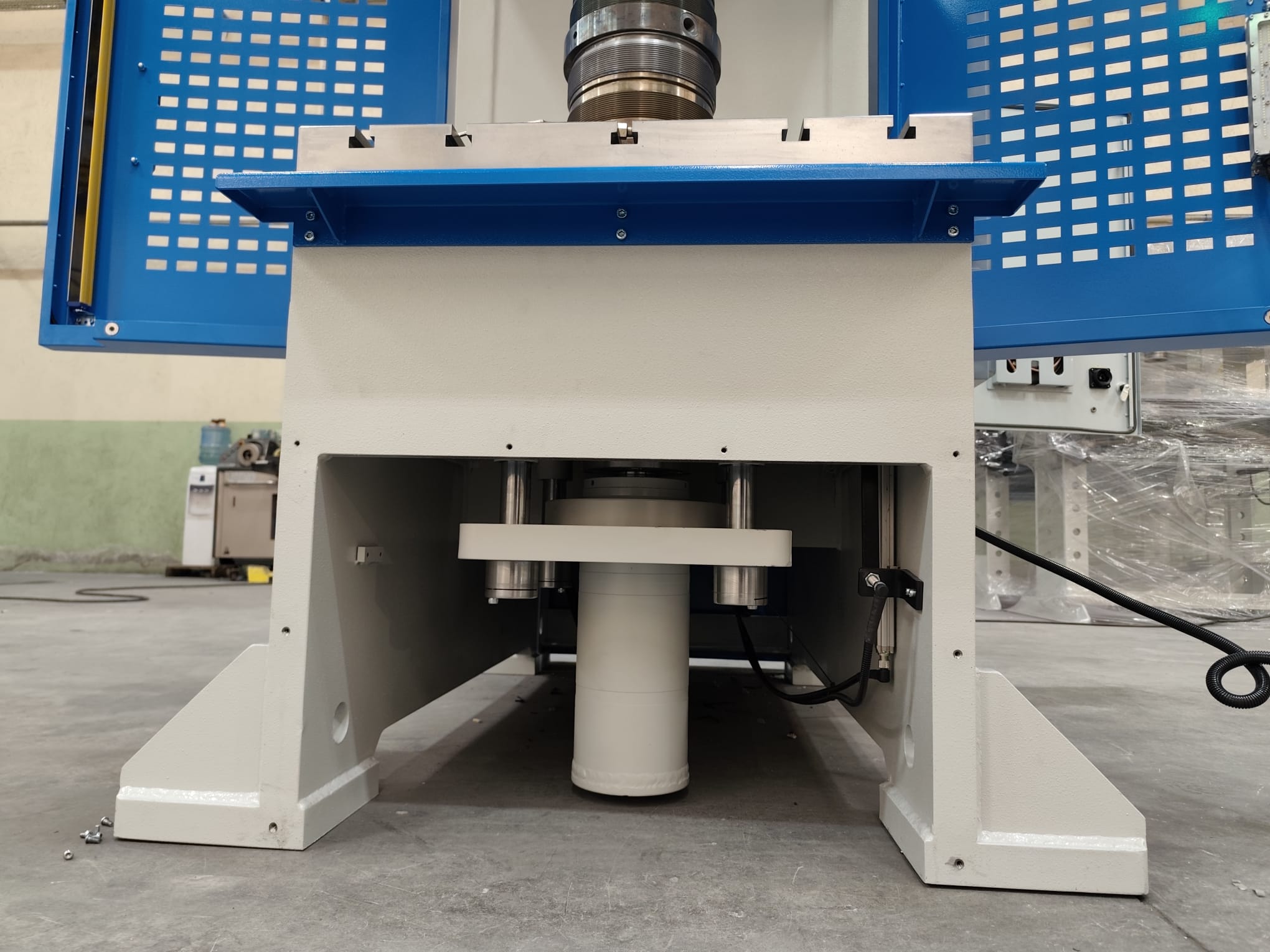

| Cushion Ton | T | 15 | 30 | 50 | 75 | 100 |
| Cushion Strok | mm. | 200 | 200 | 200 | 200 | 200 |
| Weight | kg. | 3000 | 3500 | 5500 | 9000 | 11500 |
| Overall Dimensions | mm. | 2200x2100x4200 | 2200x2100x4200 | 2400x2300x4500 | 2600x2500x4700 | 2600x2500x4900 |
| *For custom specifications or special orders, please contact us directly. | ||||||

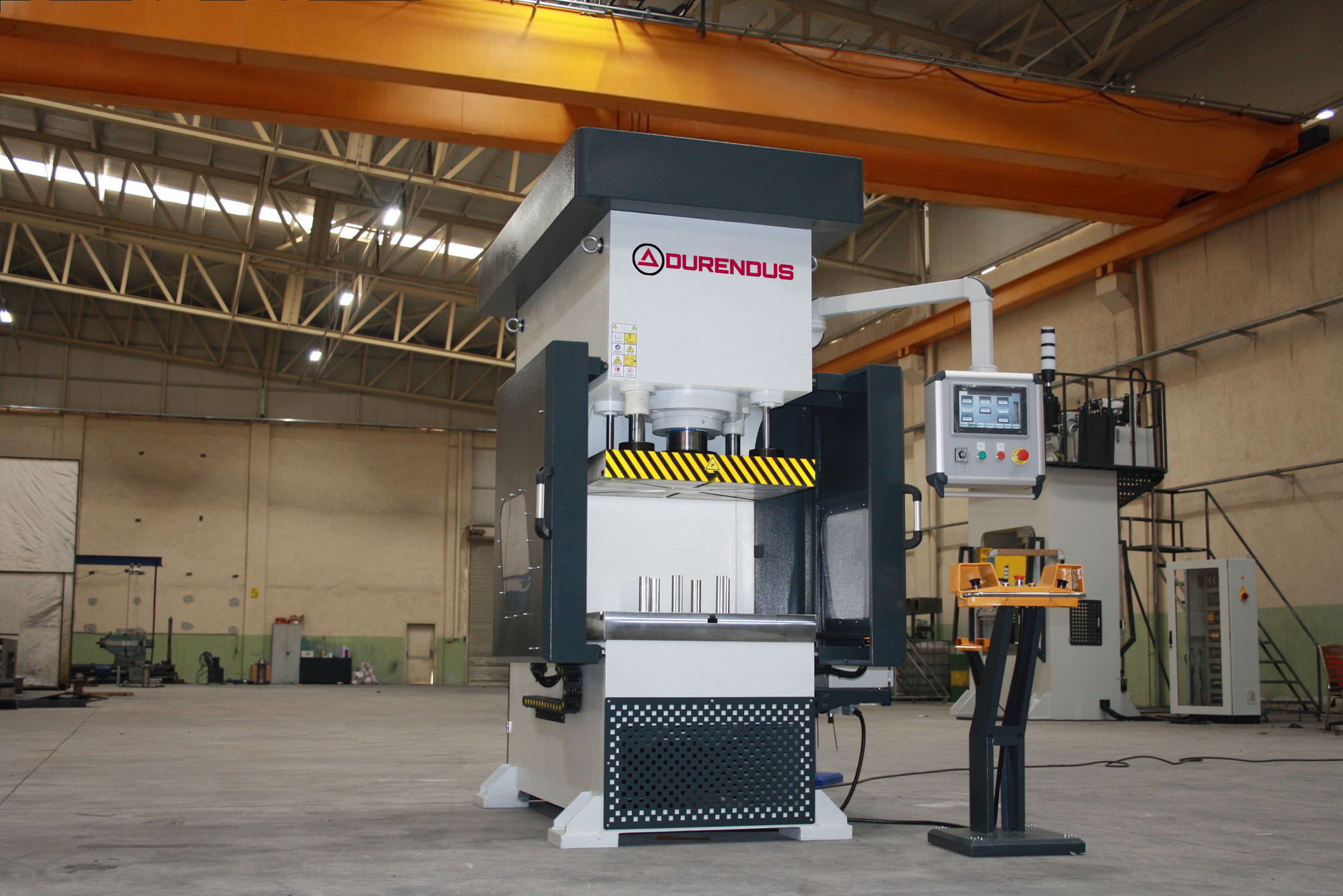

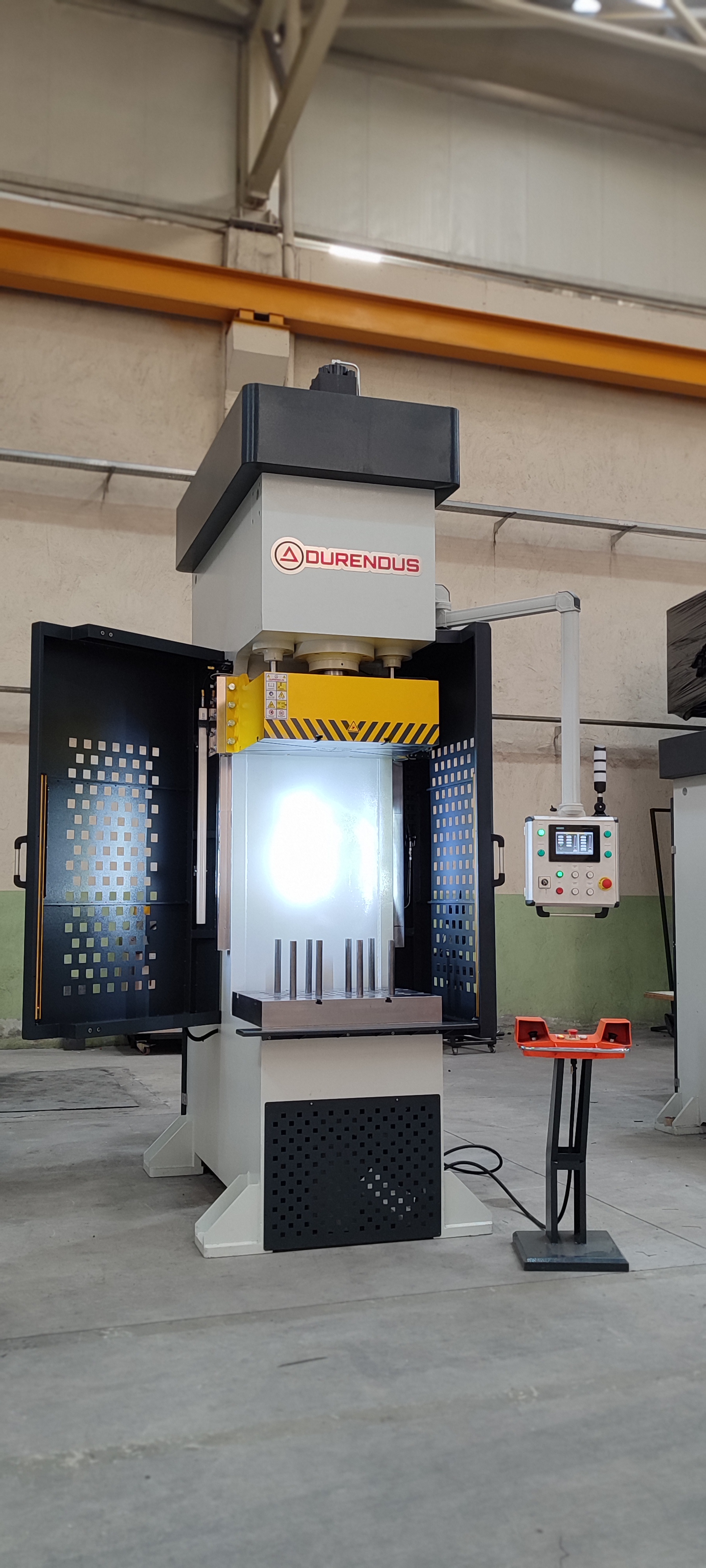

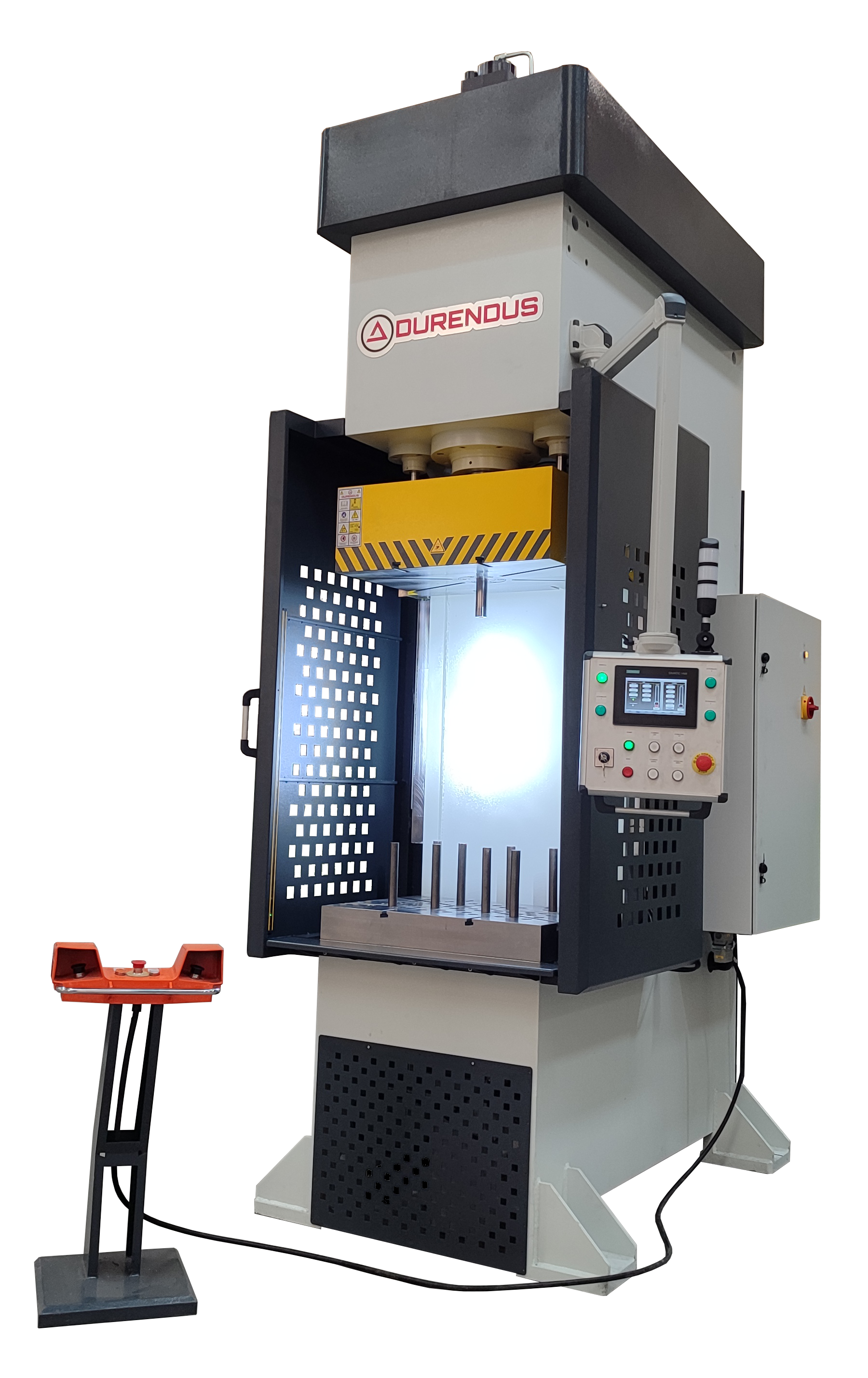

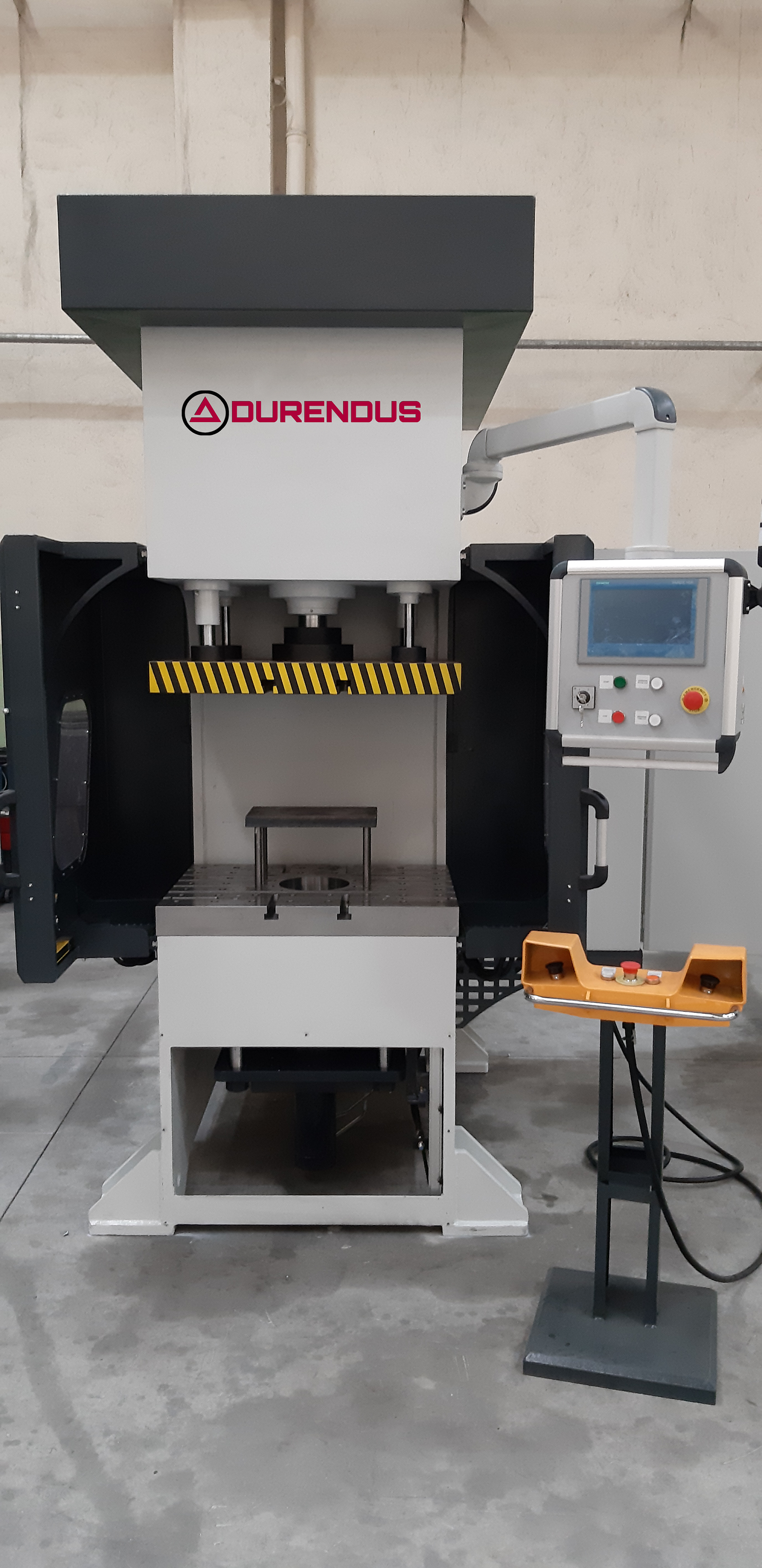

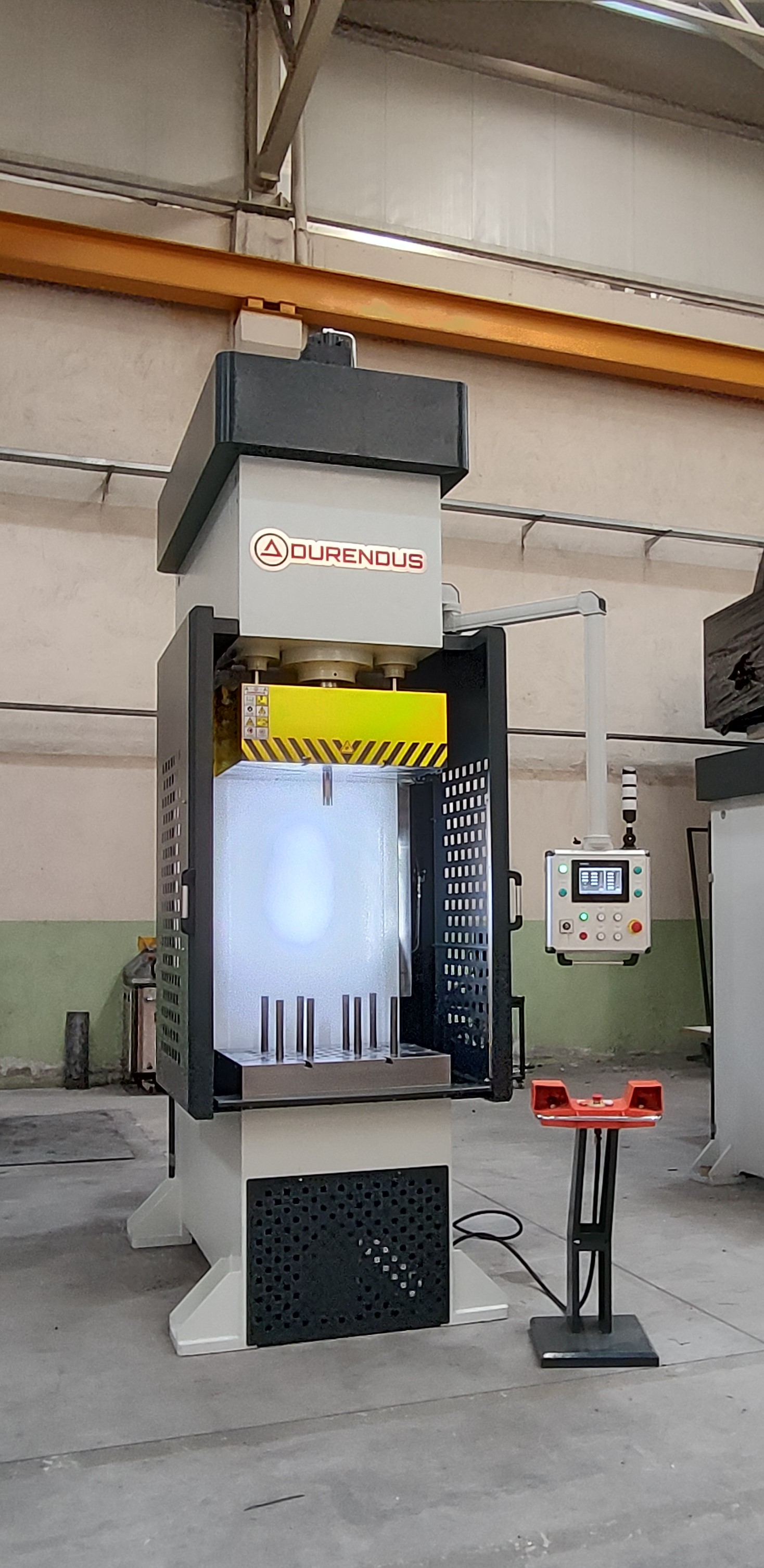

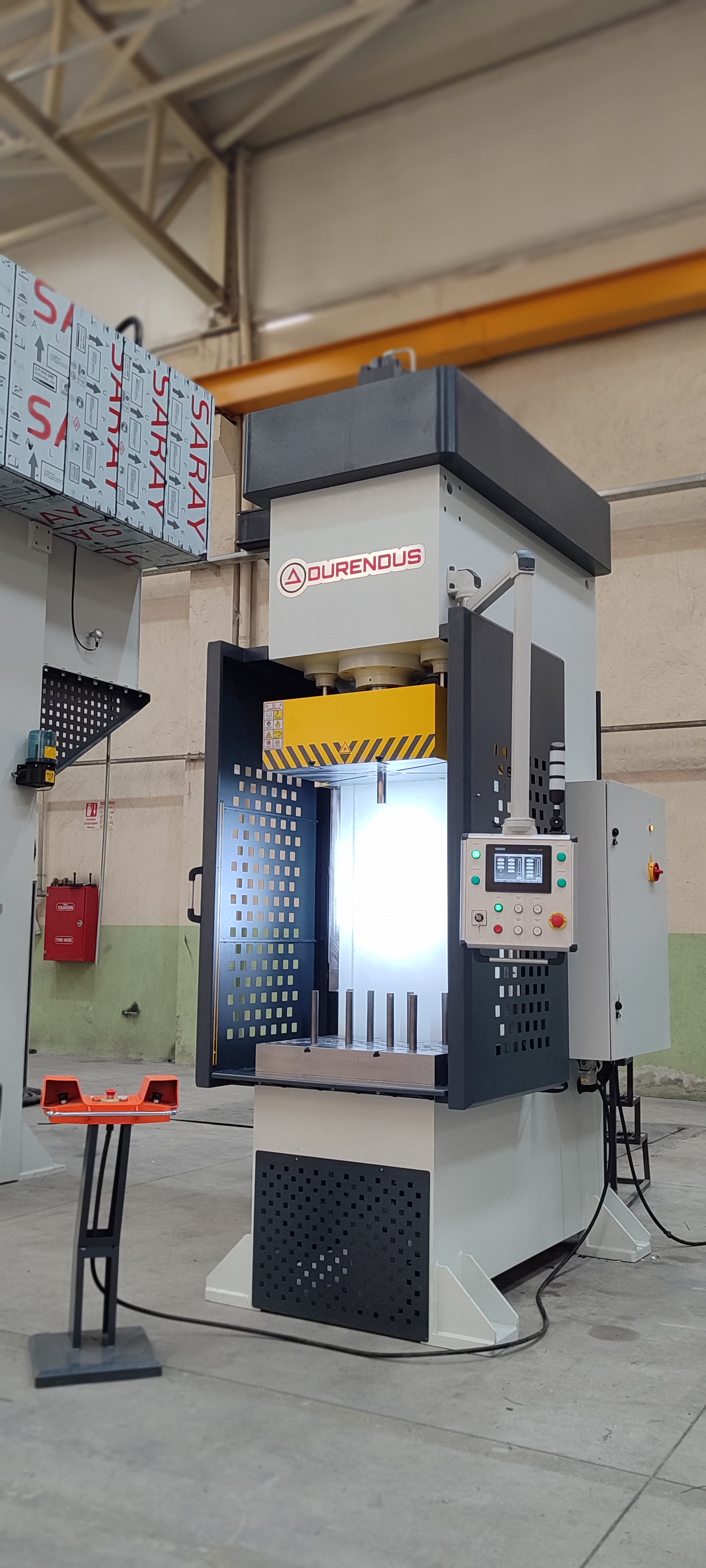

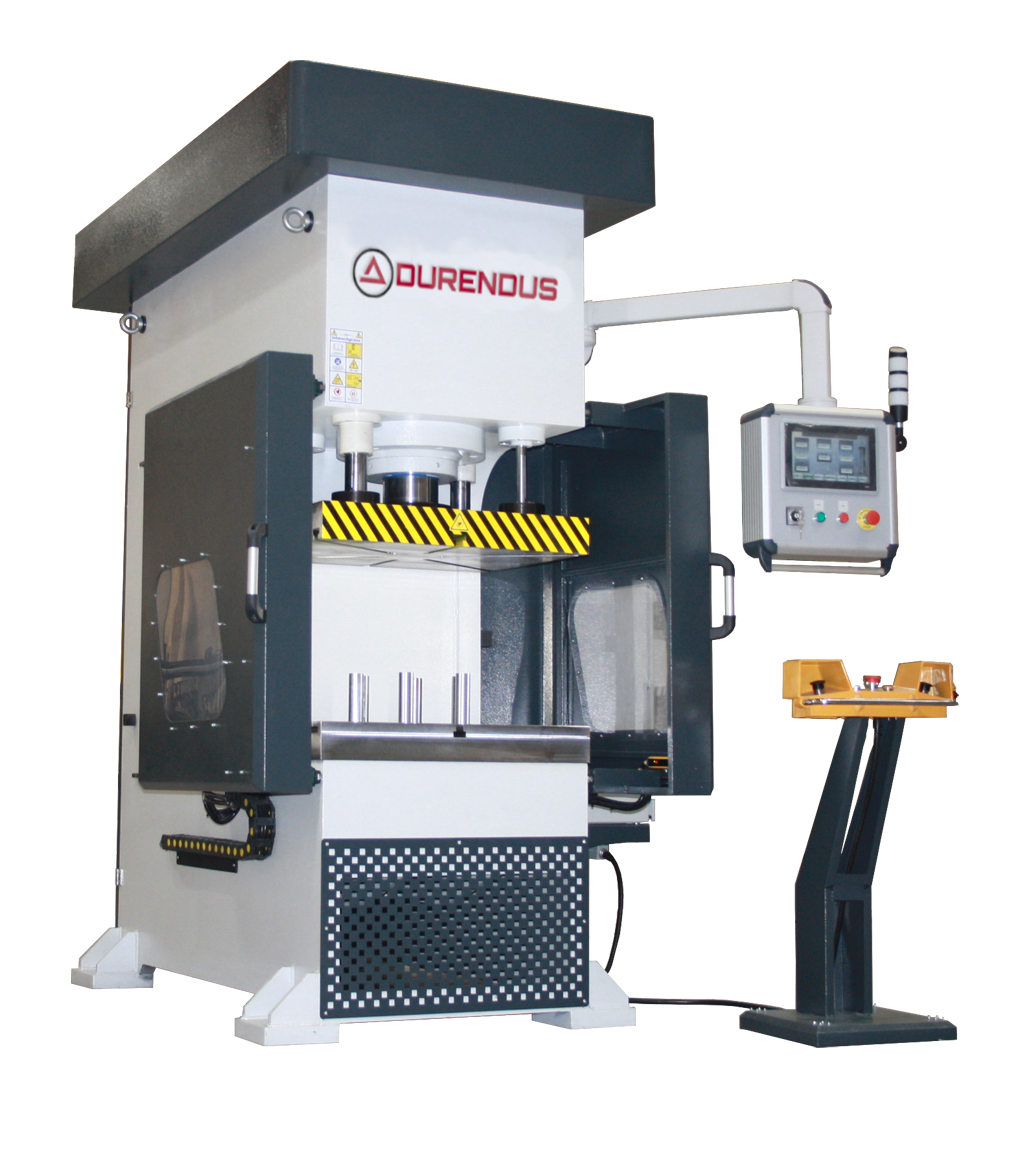

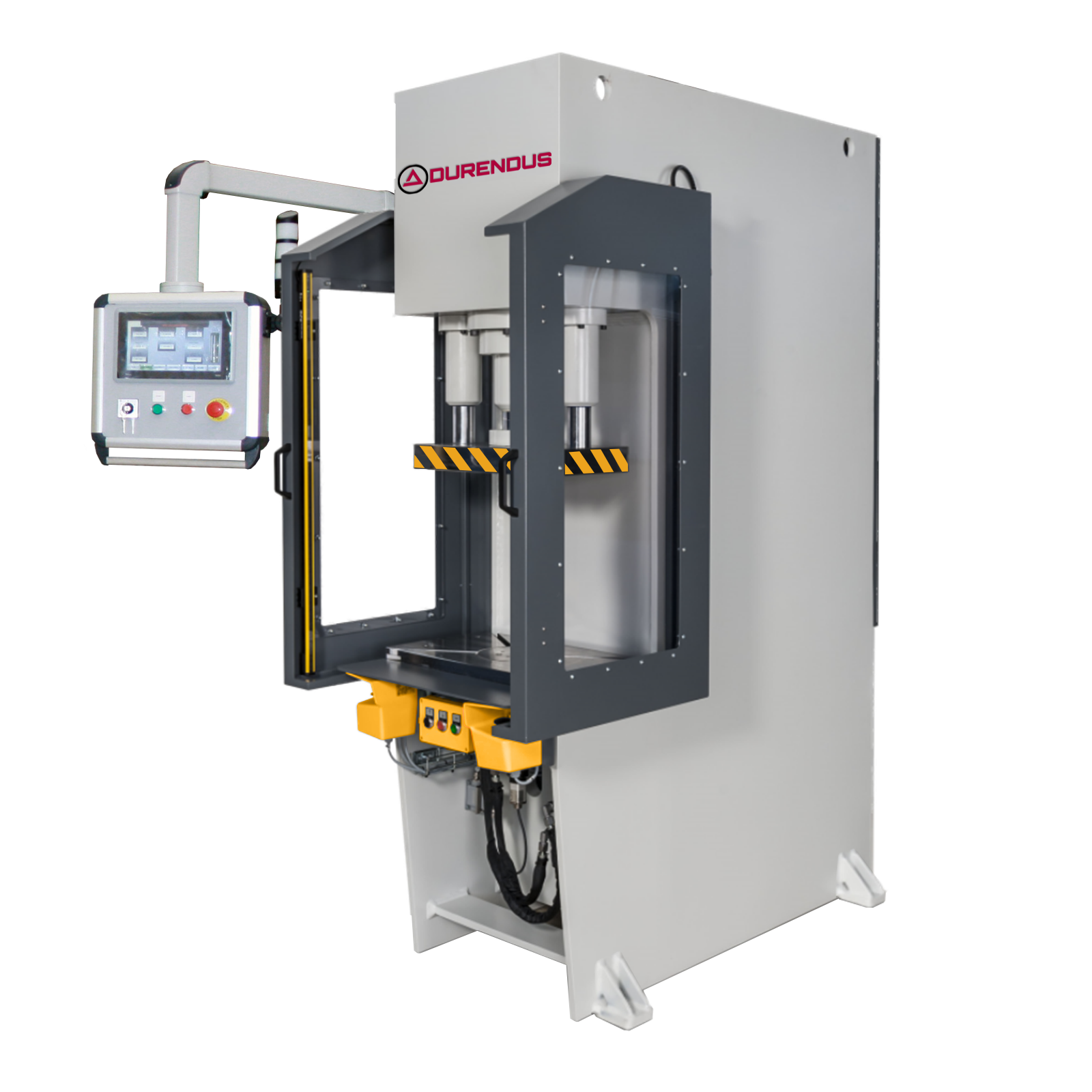

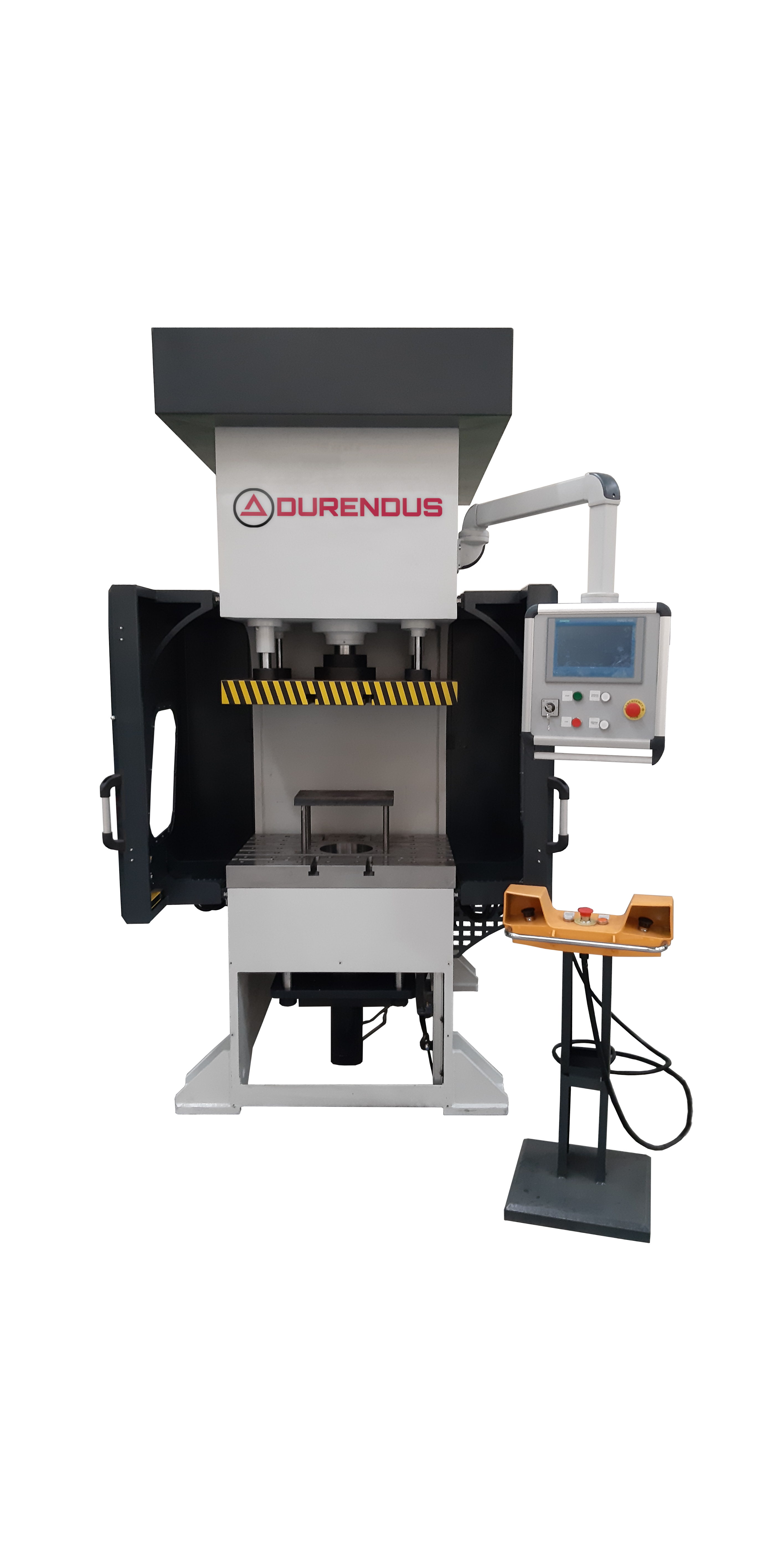

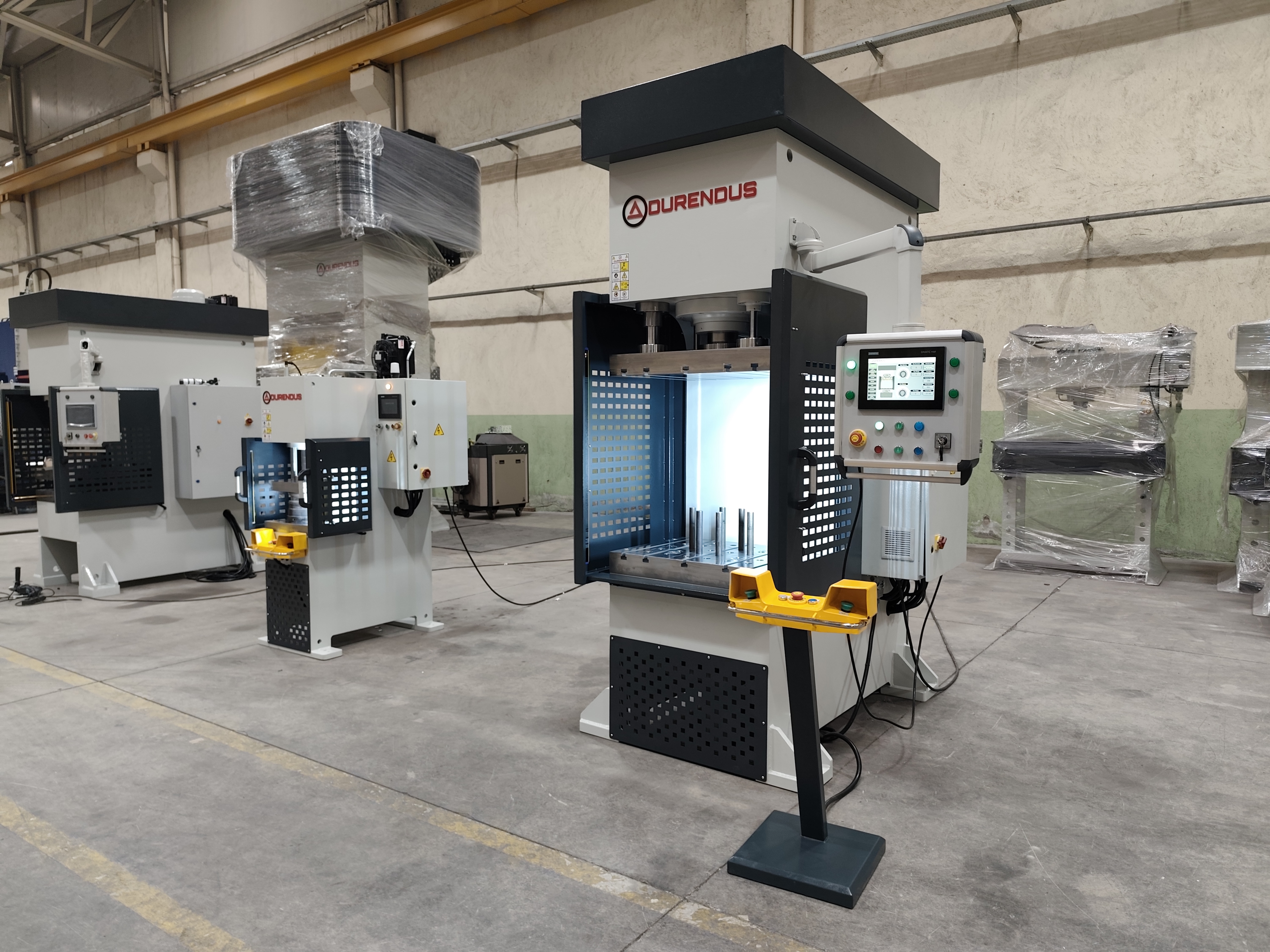

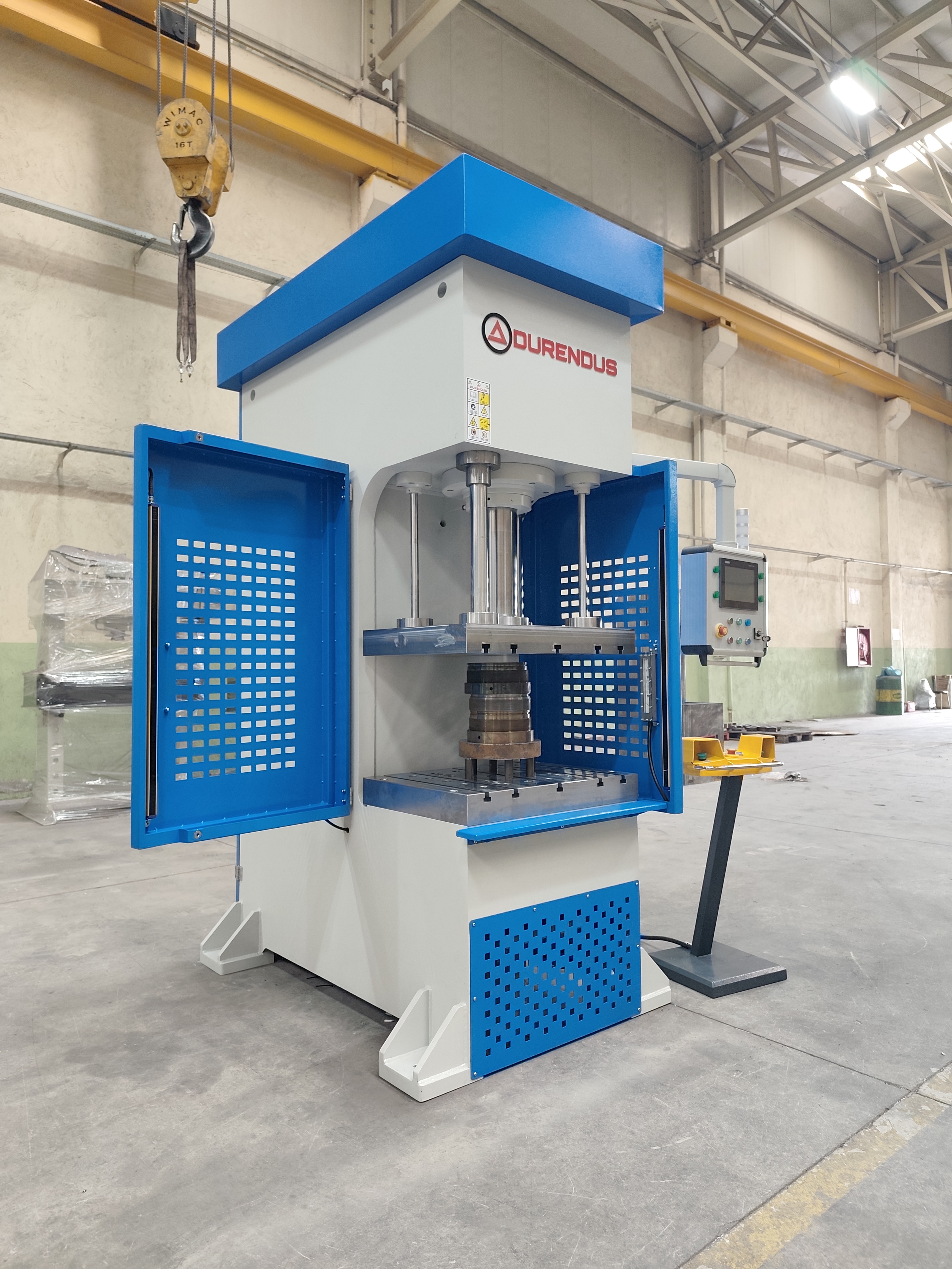

The DCD series offers a versatile deep drawing solution with a production capacity of up to 400 tons, customizable to meet specific customer requirements. Featuring an ejector roller on the upper table, it streamlines post-drawing processes for seamless product handling. Its open configuration on three sides facilitates easy mold mounting and disassembly, enhancing operational efficiency. C type presses within the series cater to users dealing with smaller molds, offering both automatic and manual functionalities for flexibility and ease of use. Designed with innovation and customer satisfaction in mind, the DCD series accommodates unique project demands, providing cutting-edge solutions that enhance efficiency, speed, and precision in deep drawing processes.
