| MODEL / TON | DCS30 | DCS60 | DCS100 | DCS150 | DCS200 | |
|---|---|---|---|---|---|---|
| Table Size | mm. | 500x500 | 400x600 | 600x800 | 600x900 | 700x1000 |
| Stroke | mm. | 400 | 400 | 400 | 500 | 500 |
| Daylight | mm. | 500 | 500 | 500 | 600 | 600 |
| Main Motor | kW. | 5,5 | 7 | 11 | 15 | 20 |
| Main Pump | lt. | 12 | 18 | 28 | 48 | 60 |
| Descending Speed | mm./sec. | 110 | 110 | 110 | 110 | 110 |
| Pressing Speed | mm./sec. | 10 | 10 | 10 | 10 | 10 |
| Return Speed | mm./sec. | 140 | 140 | 140 | 140 | 140 |
| Weight | kg. | 3000 | 3500 | 5500 | 9000 | 11500 |
| Overall Dimensions | mm. | 1500x1400x2300 | 1600x1400x2300 | 1700x1500x2700 | 1700x1600x2900 | 1900x1700x2900 |
| *For custom specifications or special orders, please contact us directly. | ||||||

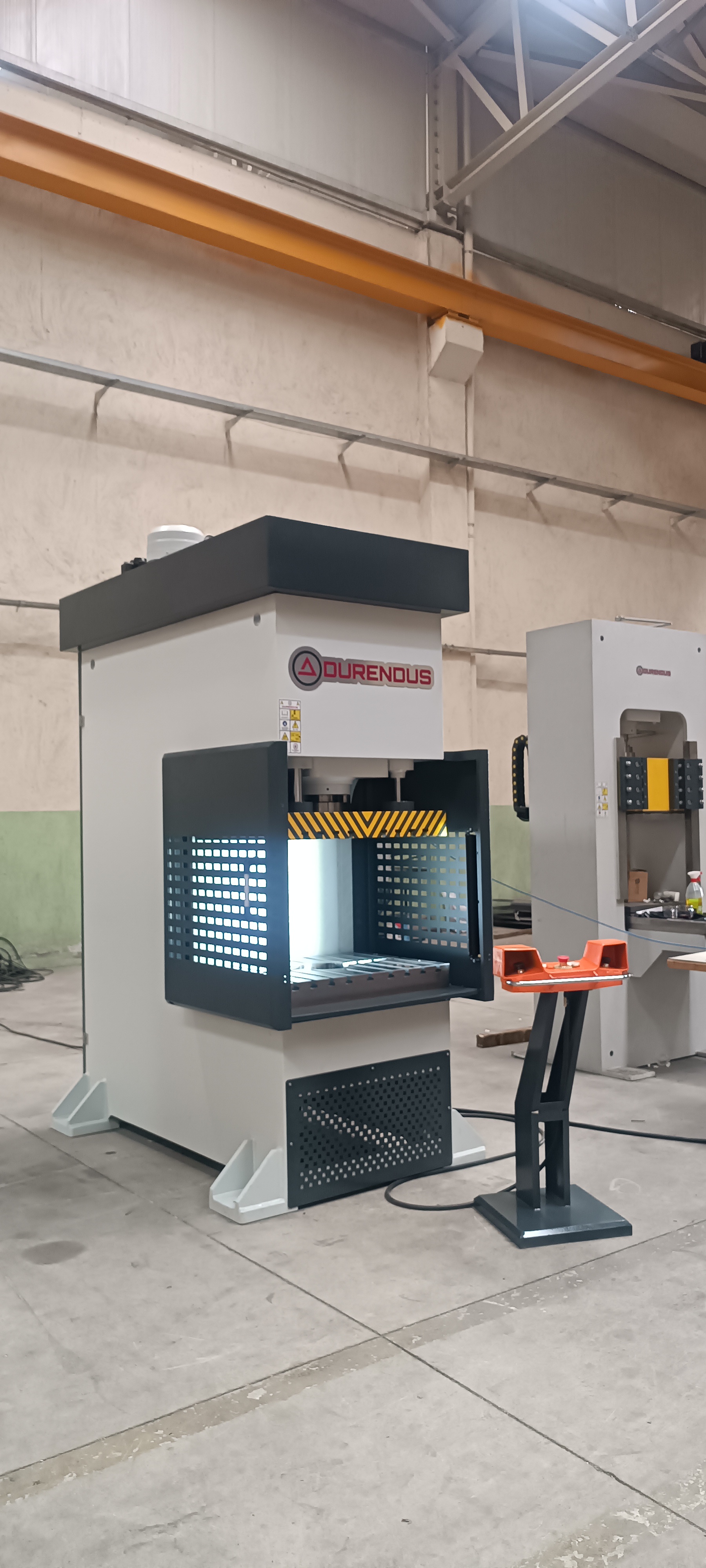

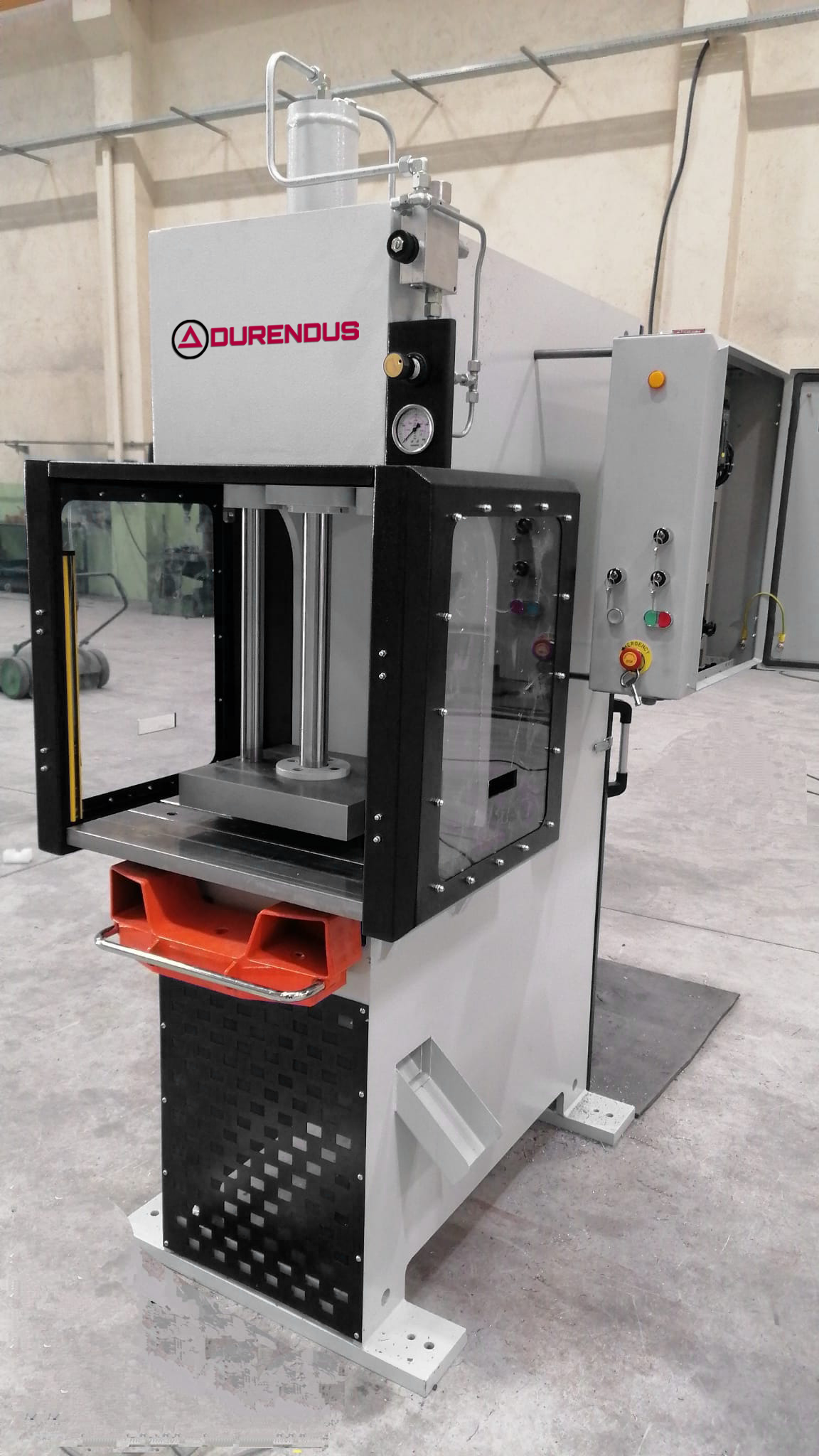

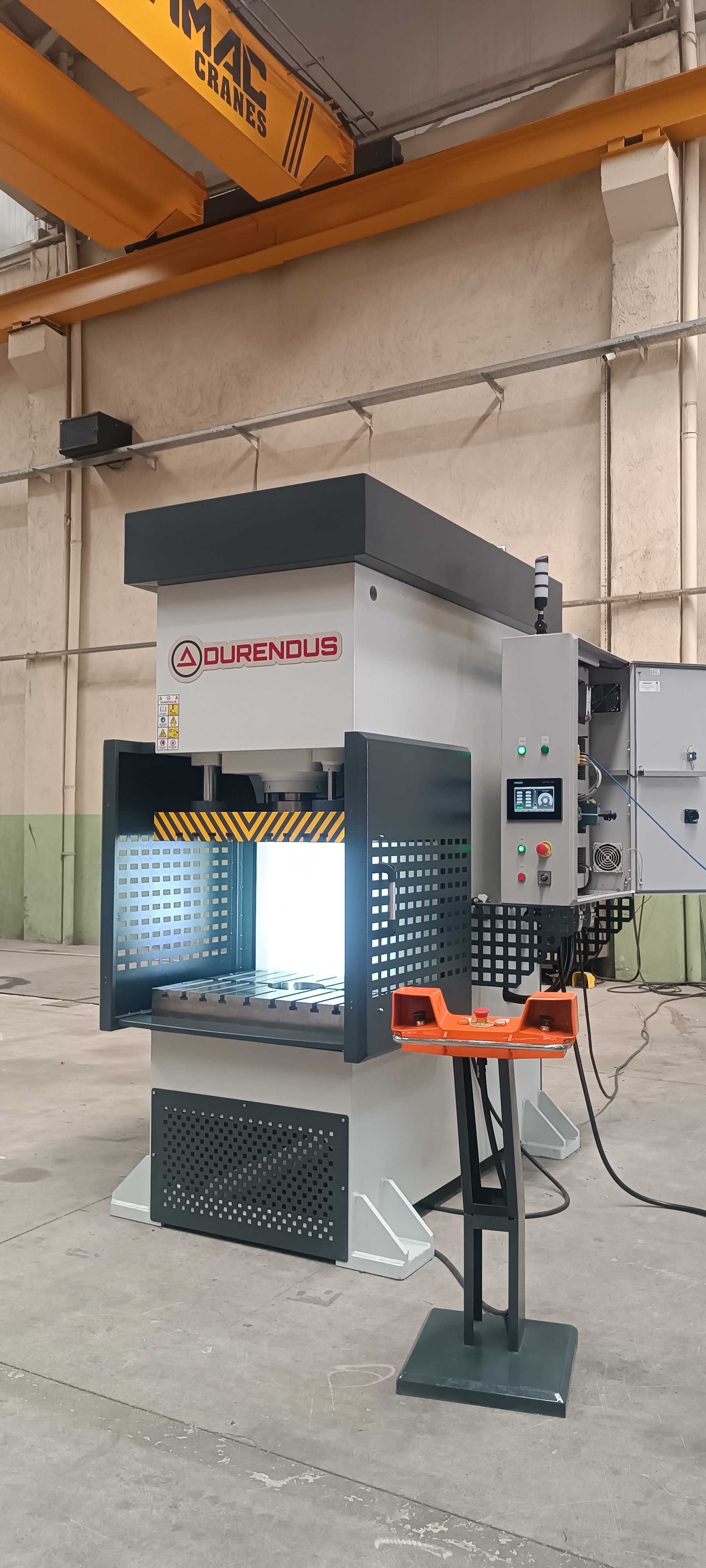

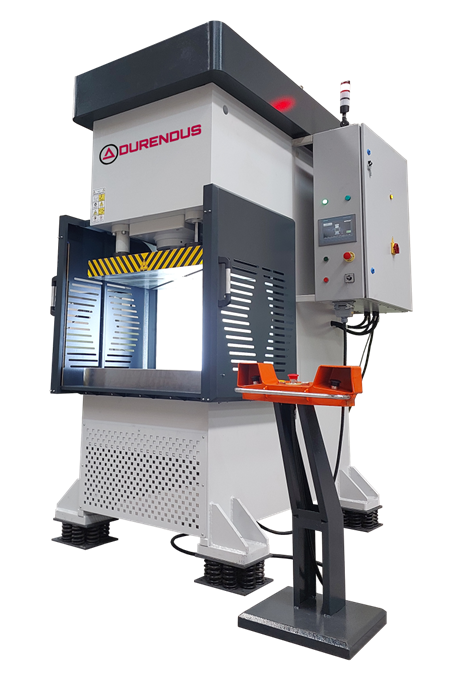

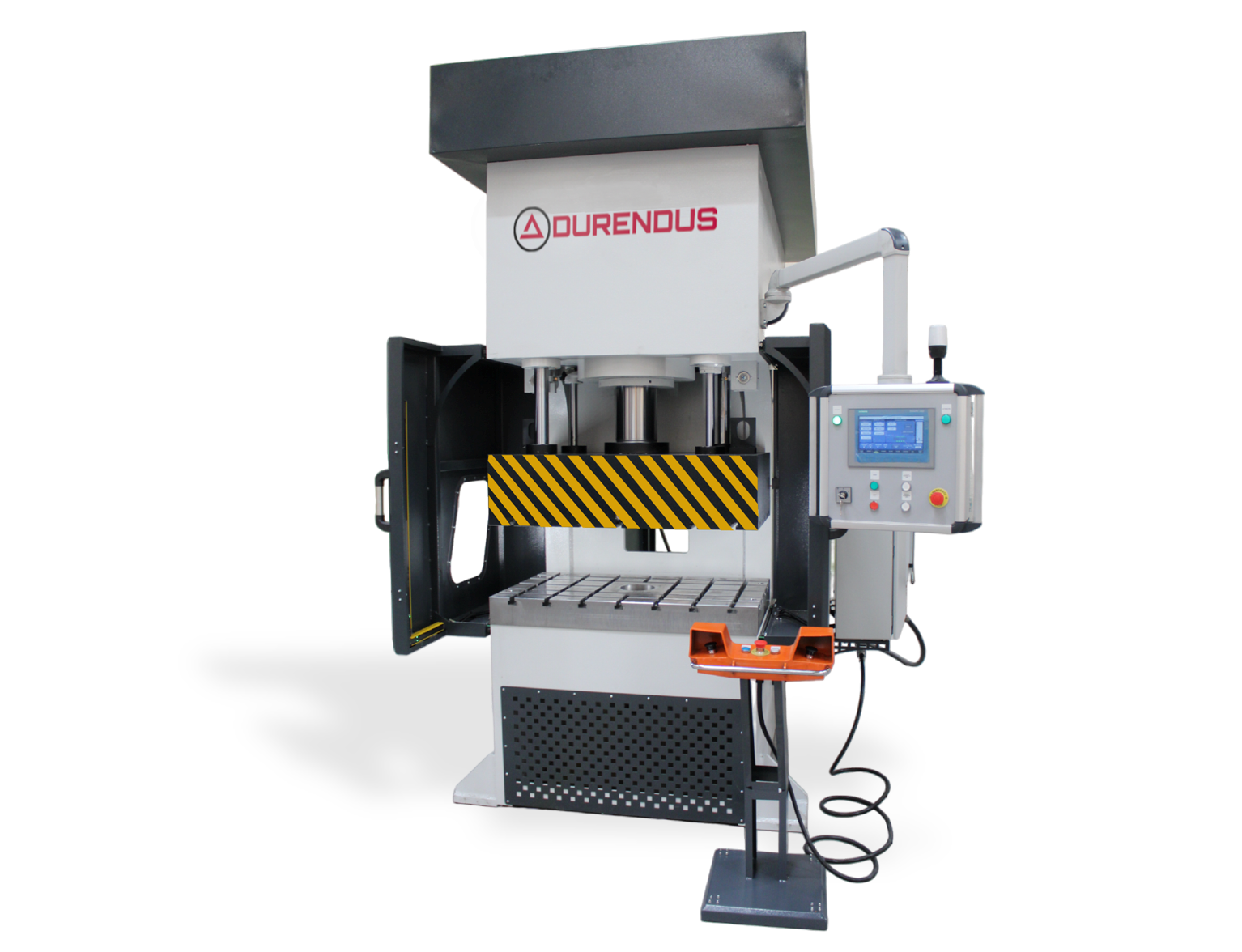

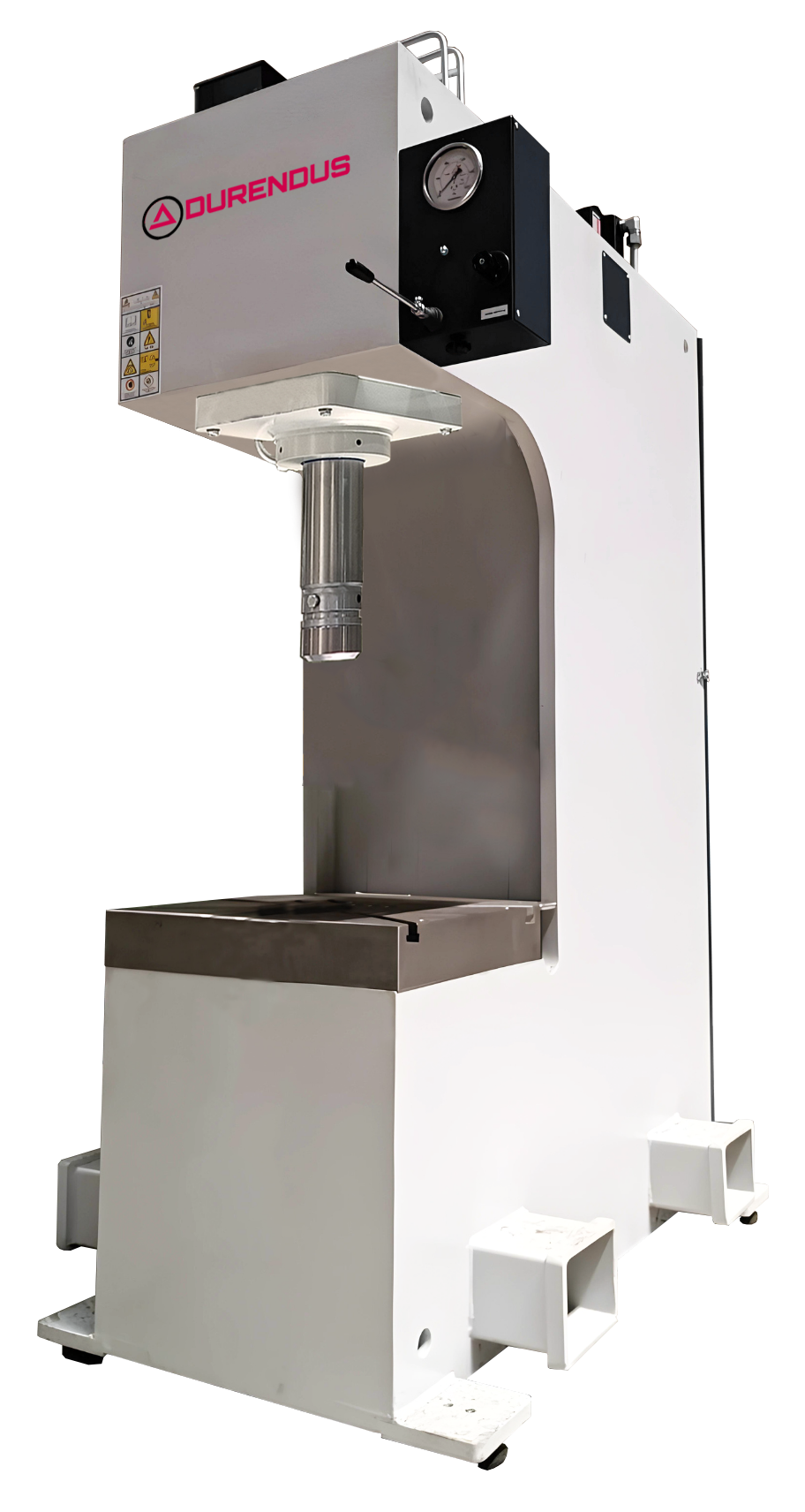

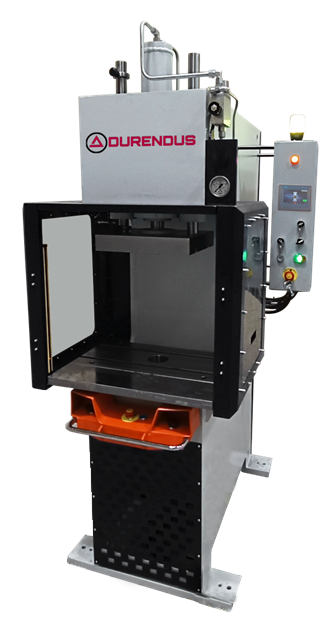

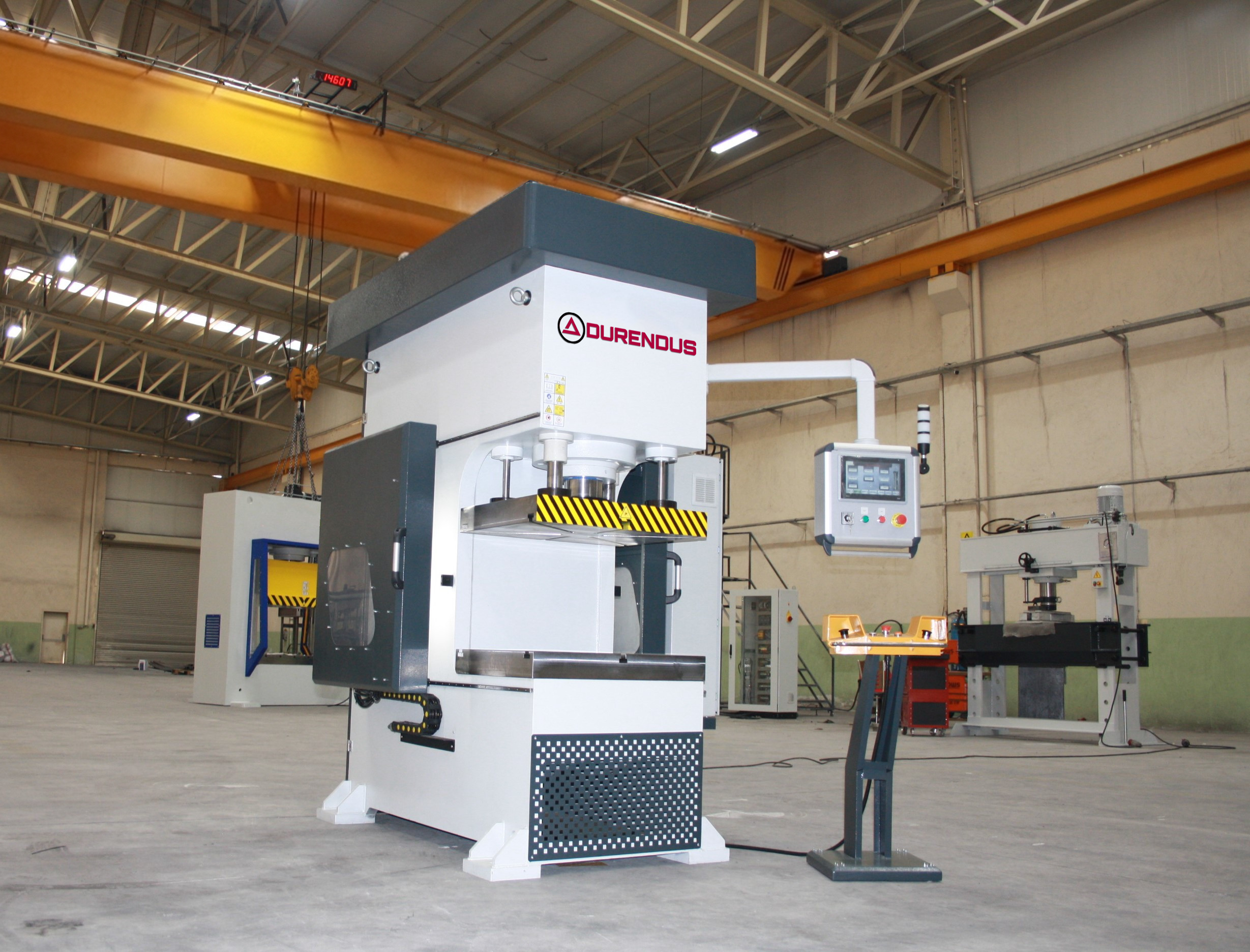

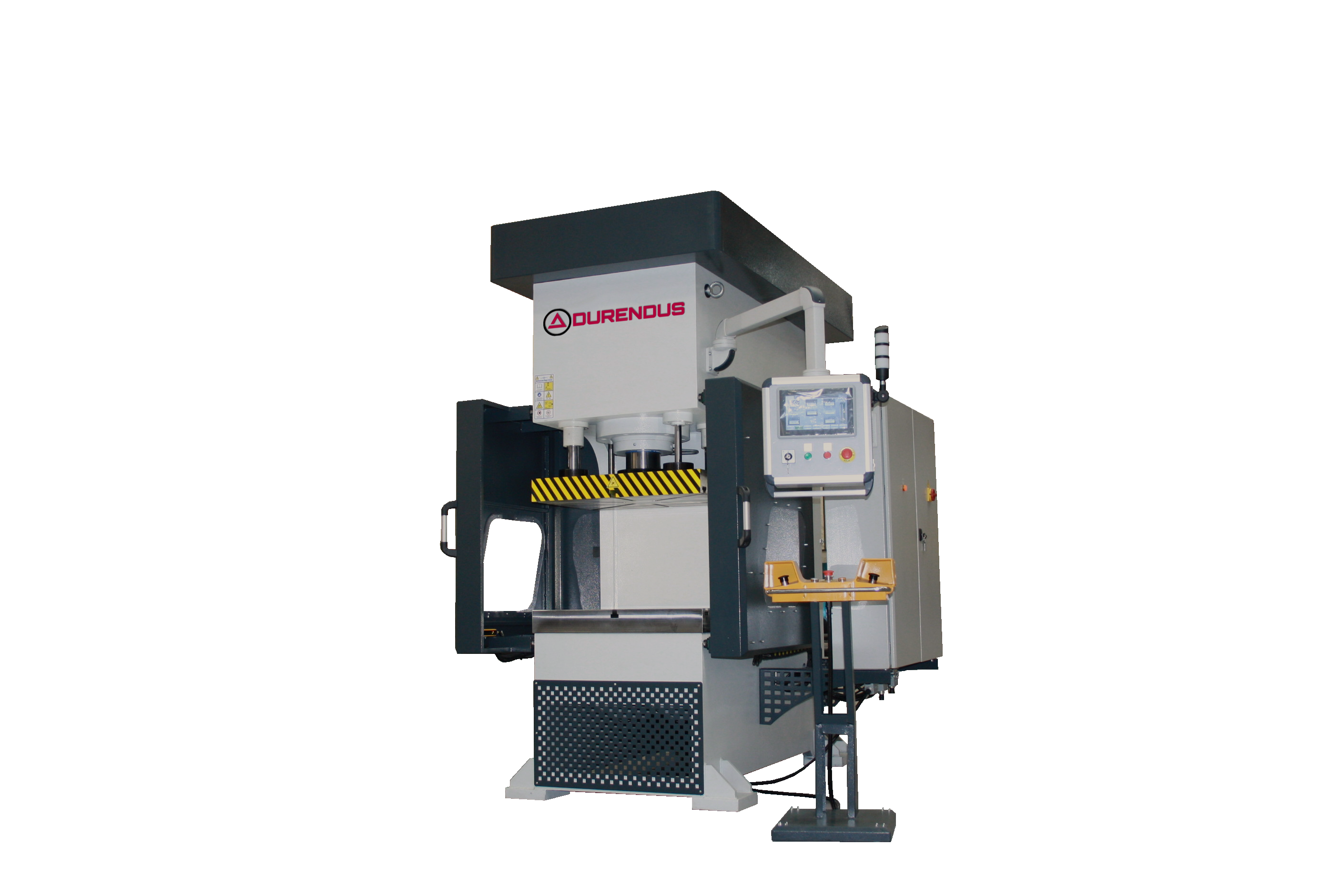

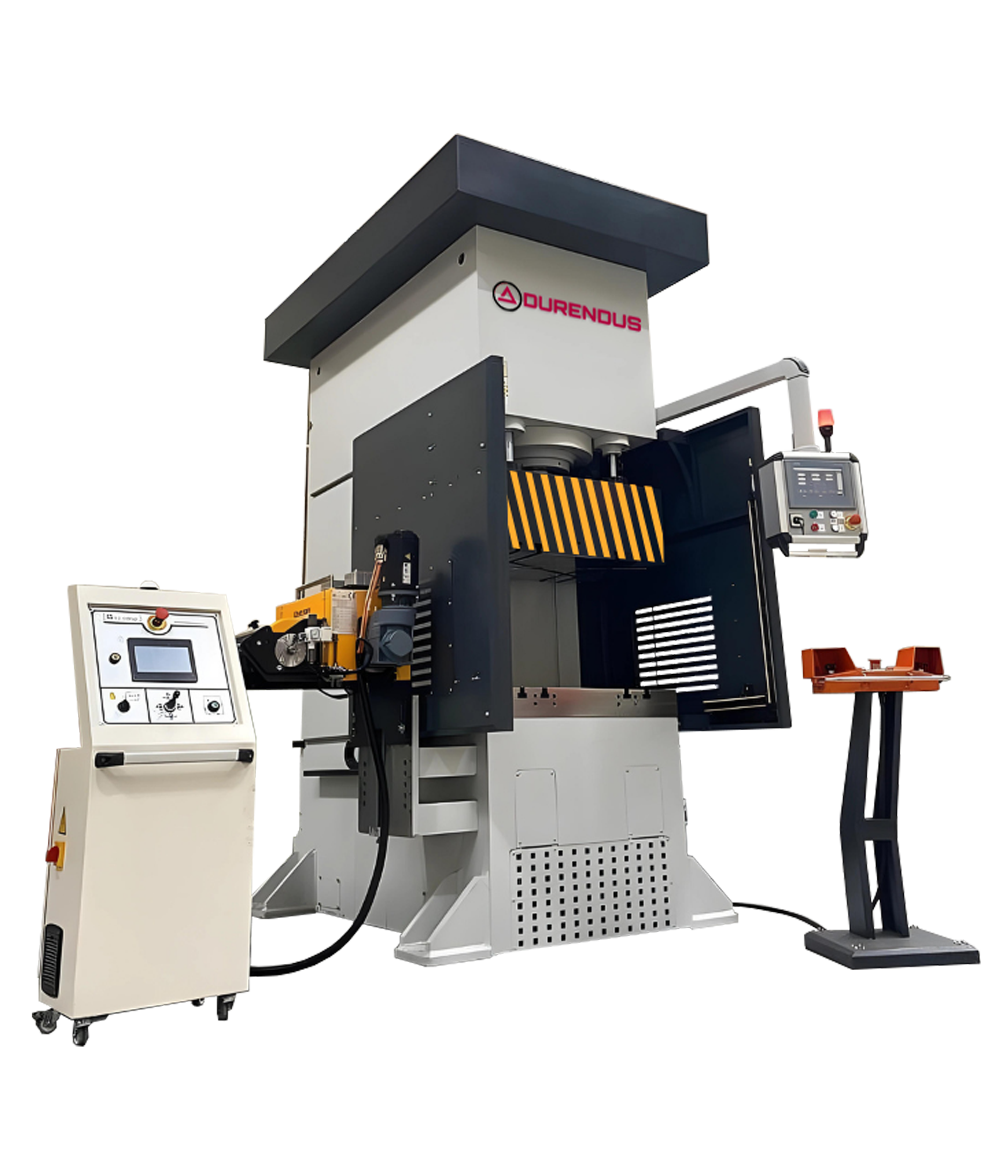

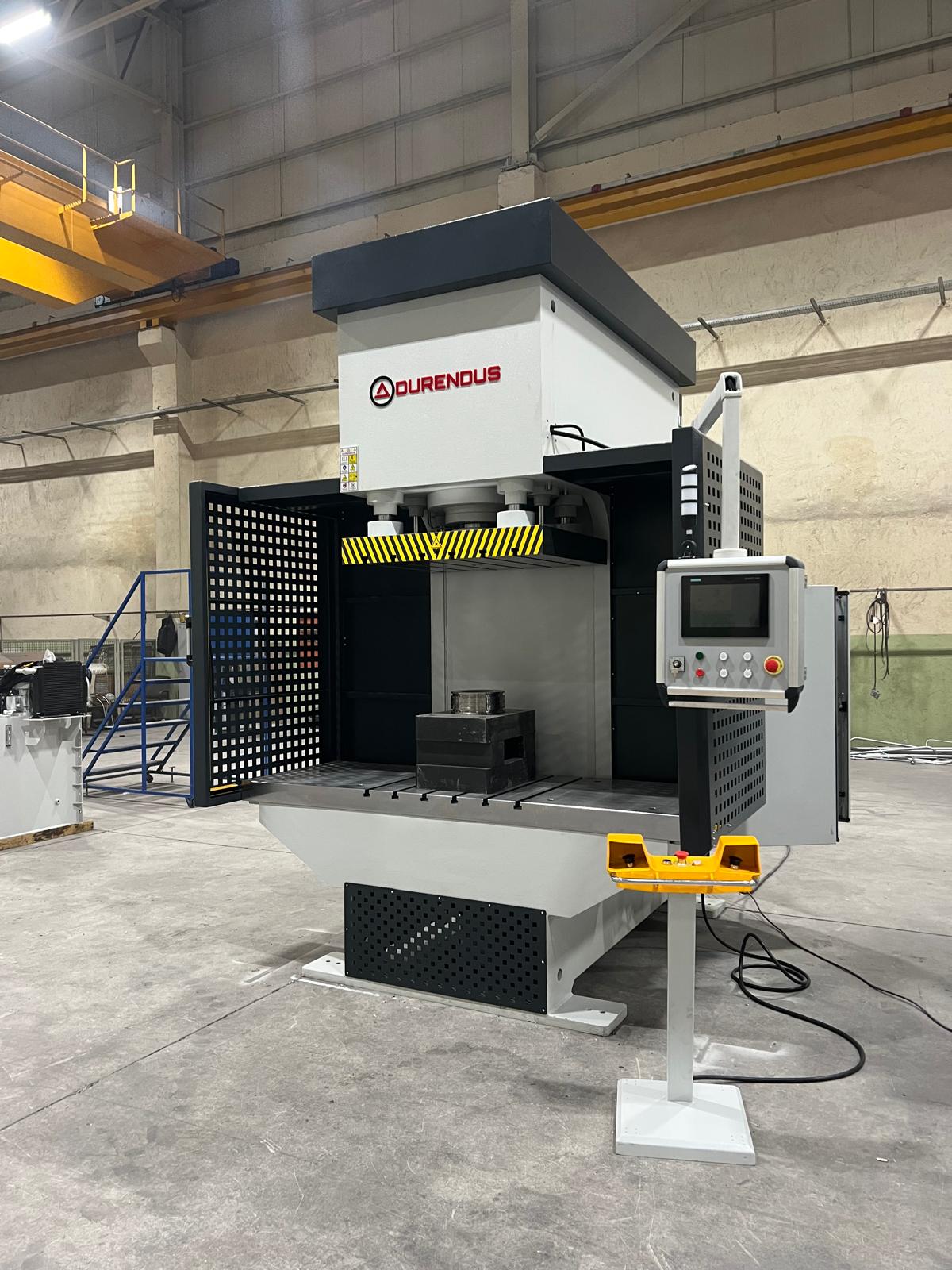

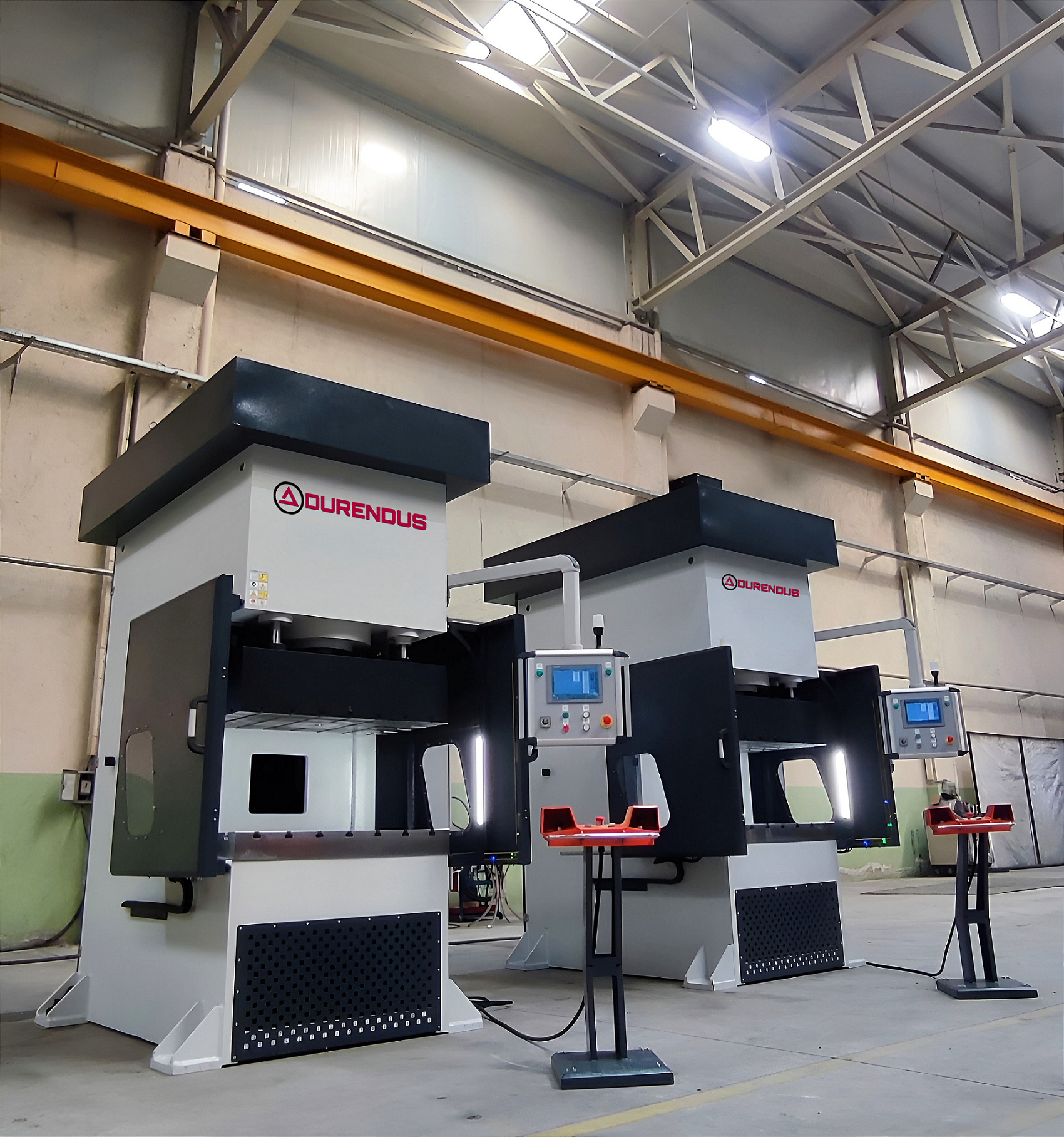

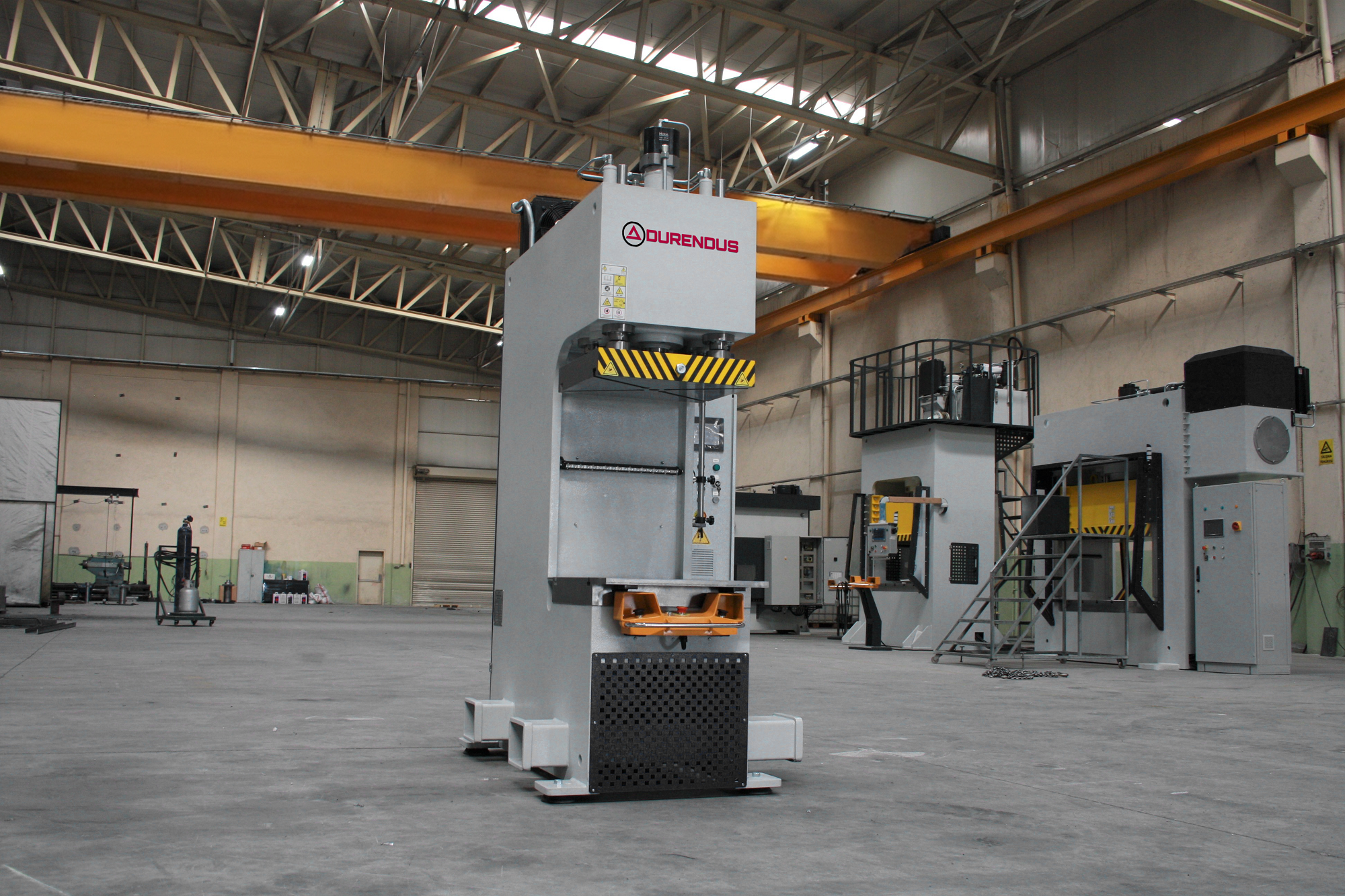

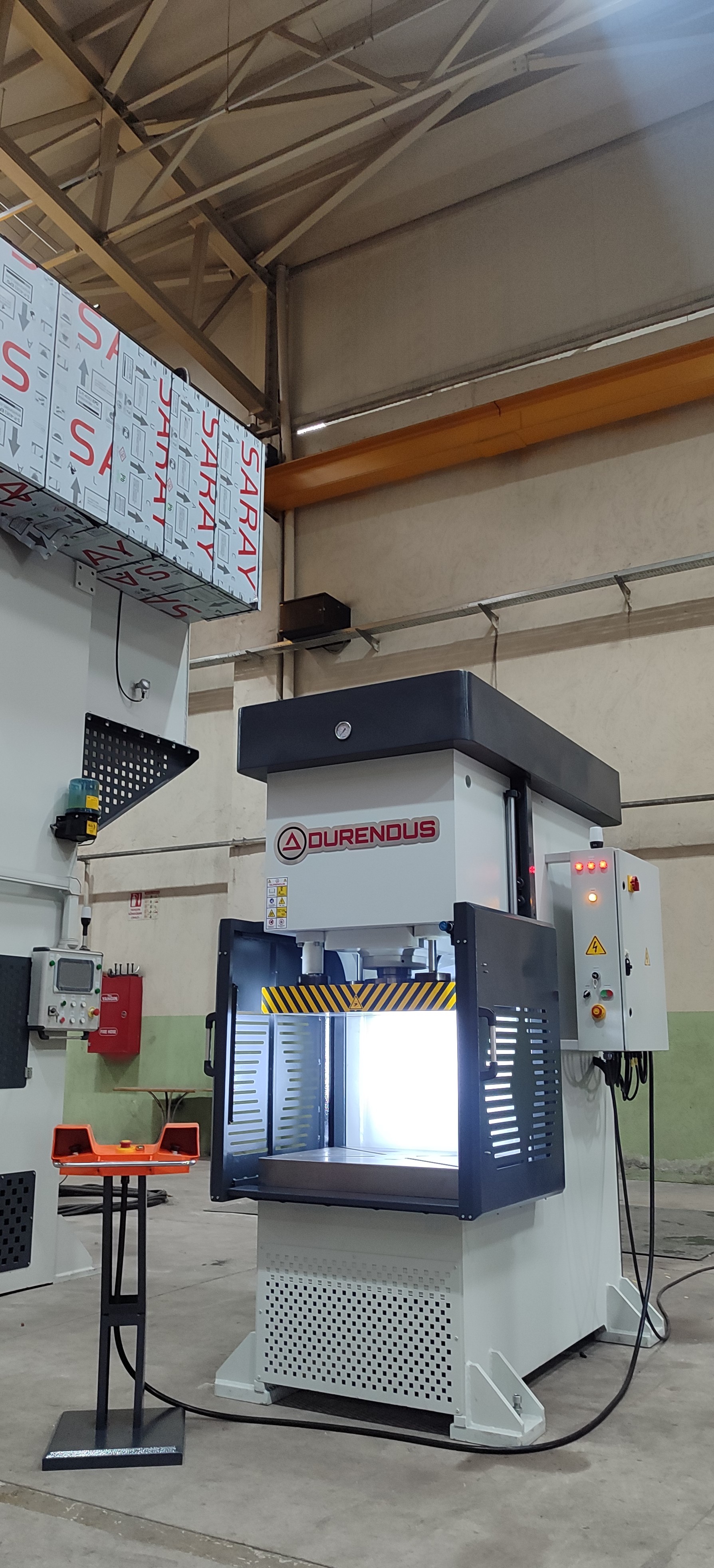

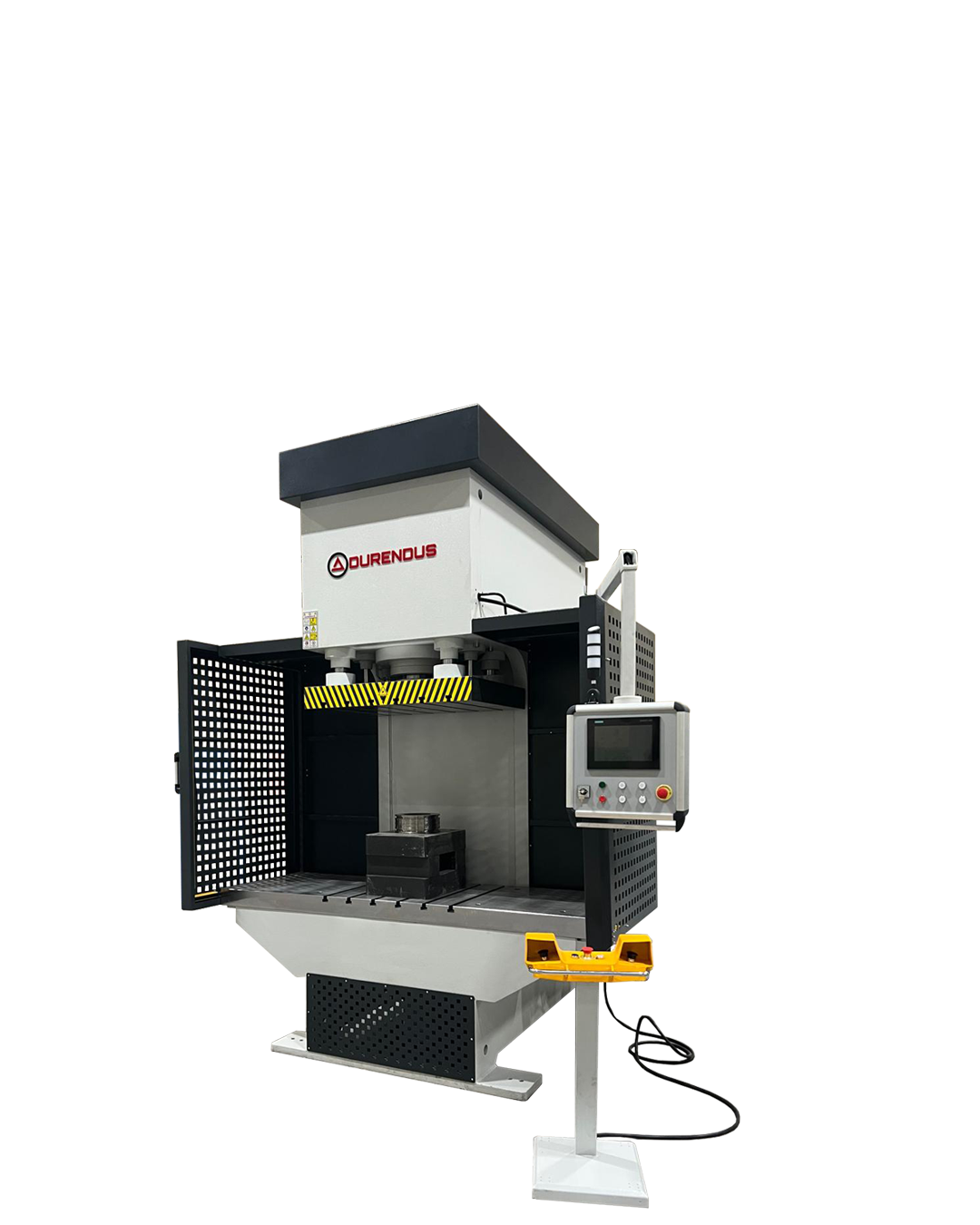

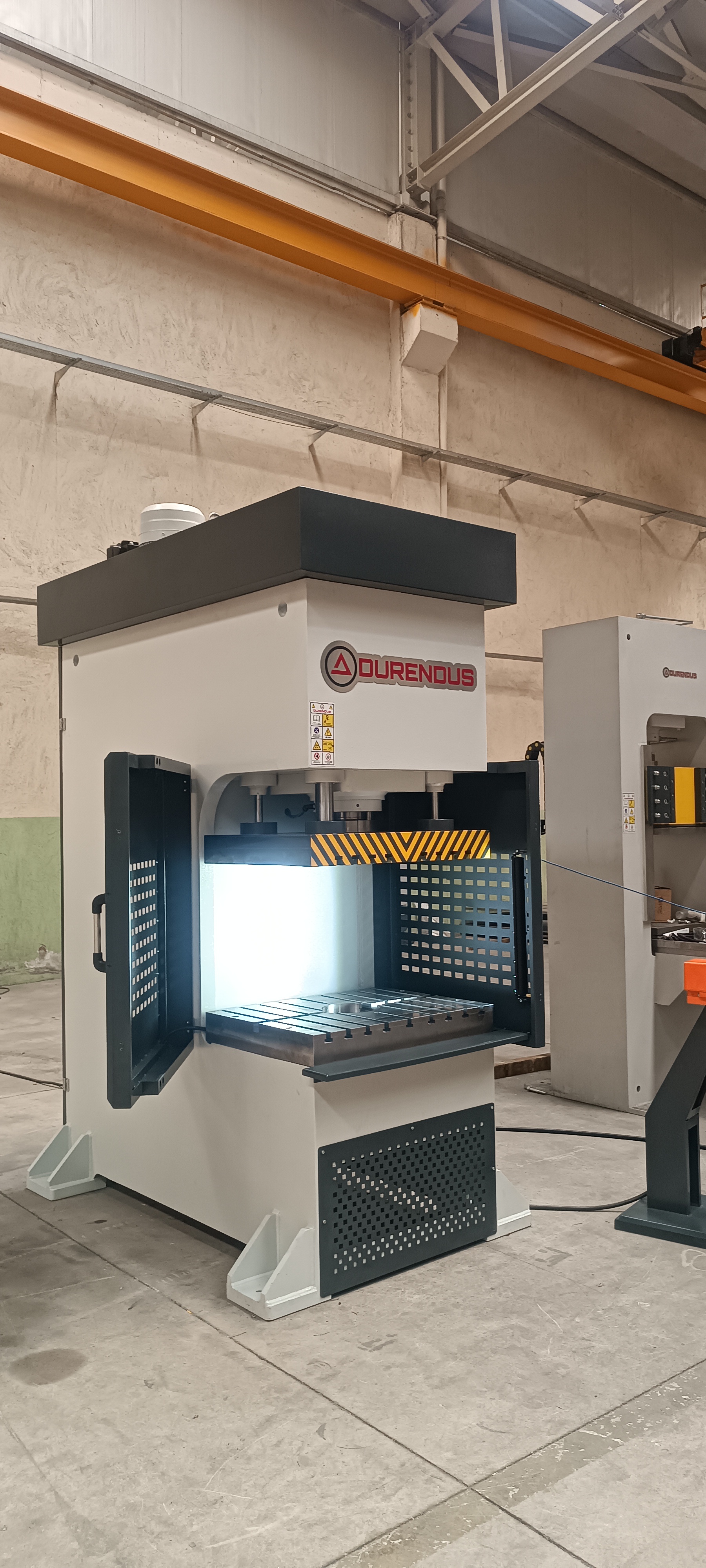

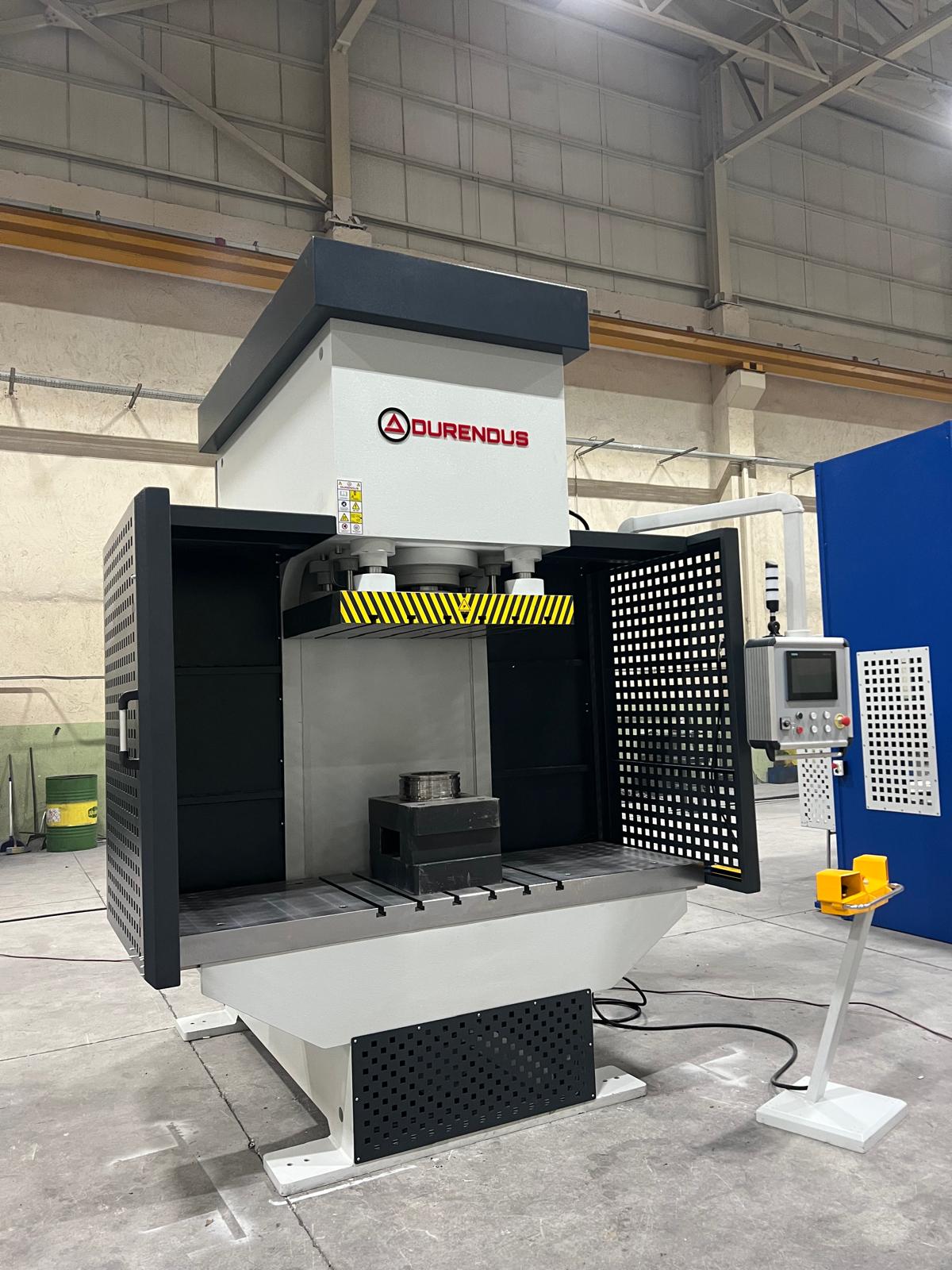

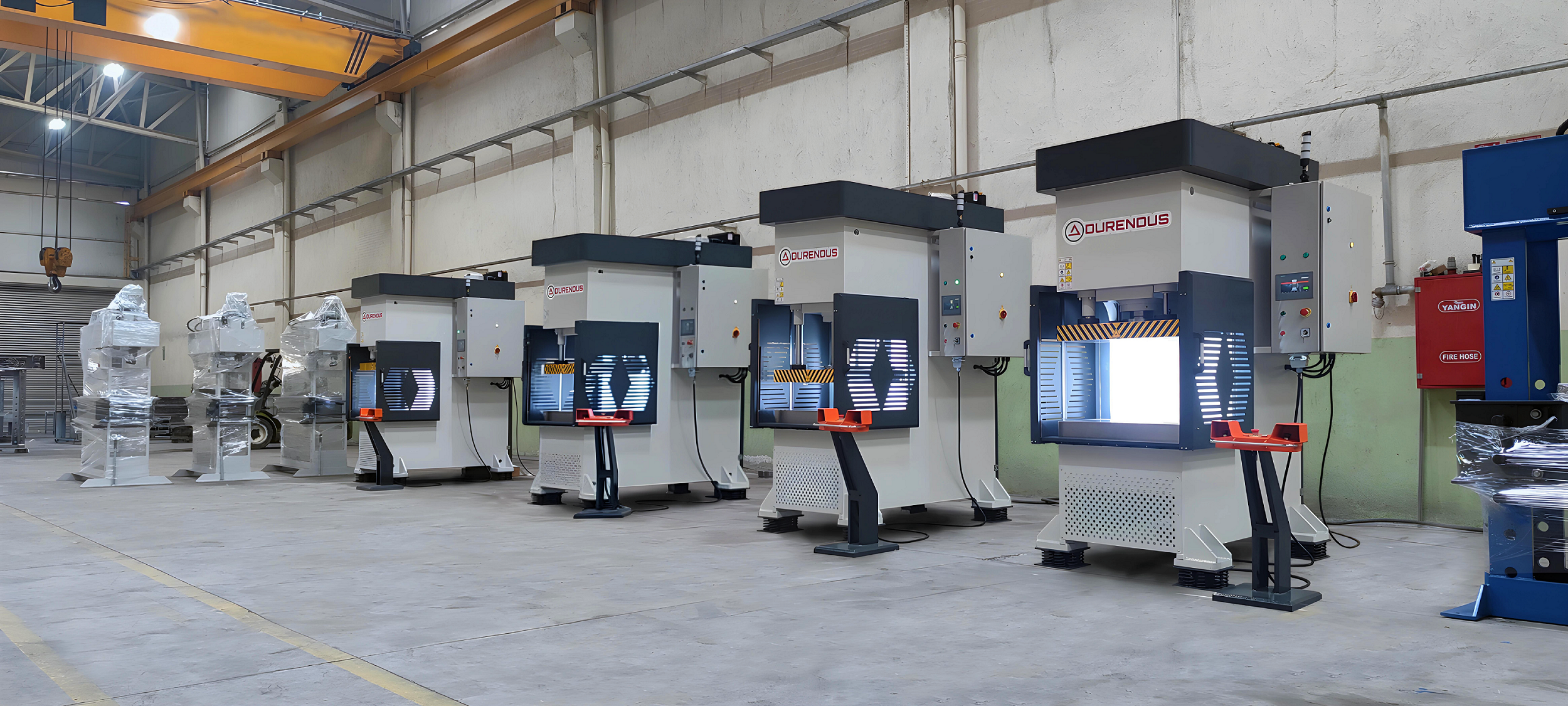

The DCS series presses are primarily used in manufacturing small molded materials, excelling in cutting, drilling, shaping, and drawing operations. The distinctive open design on three edges facilitates easy mold mounting and disassembly, streamlining workflows and enhancing precision. The open front edge allows for placement of materials of diverse sizes, contributing to flexibility in manufacturing processes. Customizable in dimensions, features, and tonnages, the DCS series aligns with individual customer needs. With its open design and precision-engineered table surfaces, it offers a reliable and adaptable solution for various manufacturing applications.

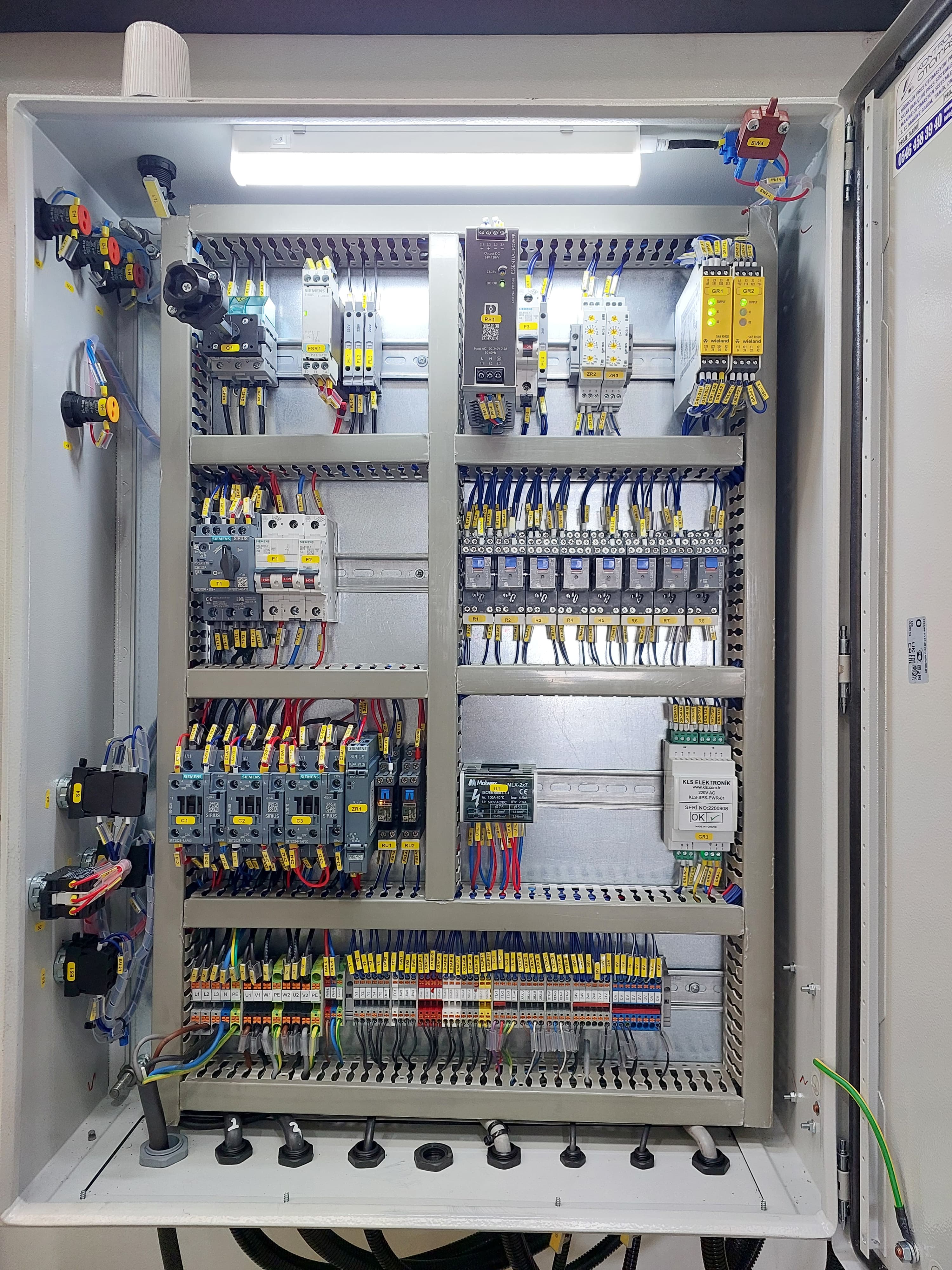

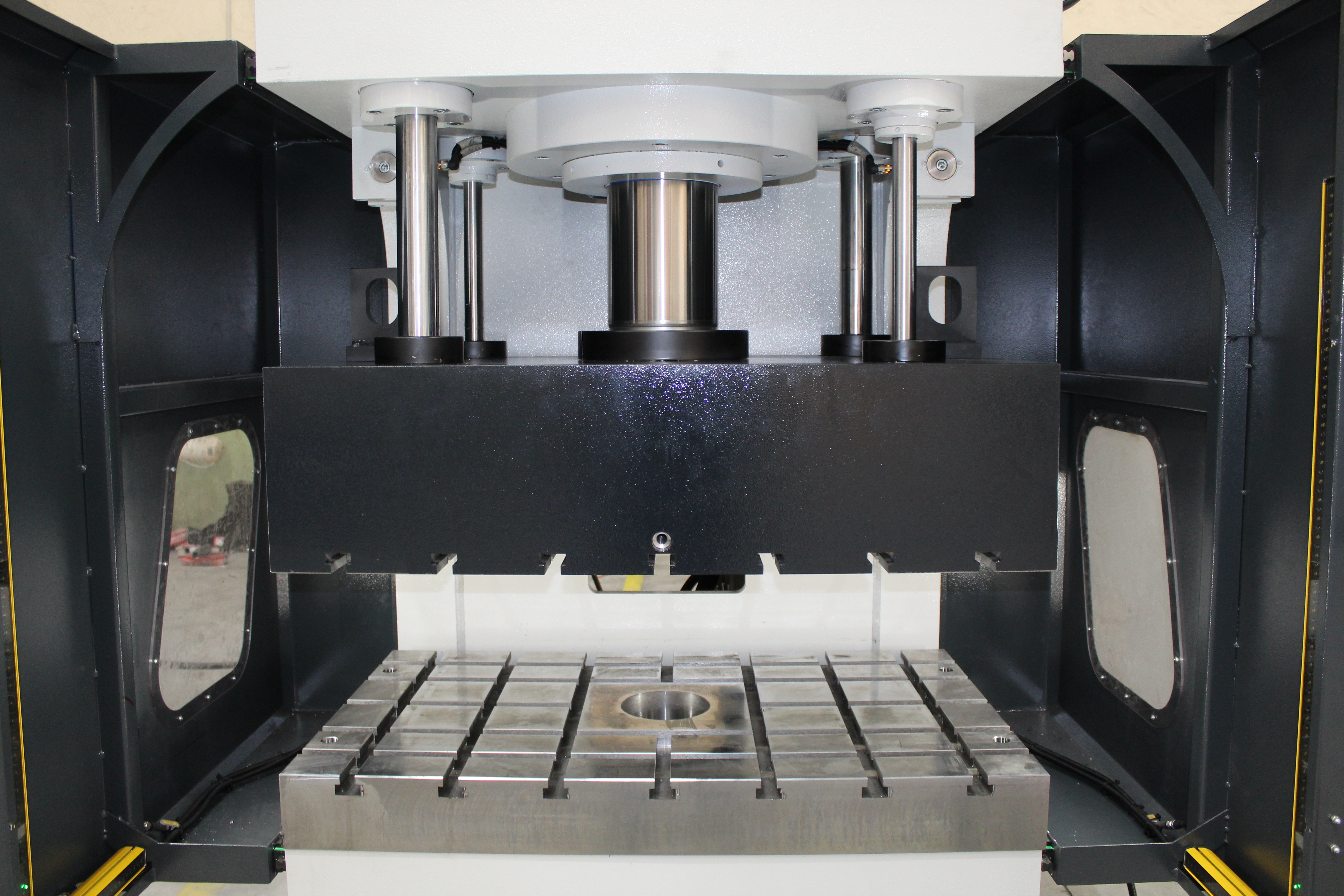

Standard Features
Optional Features
