| MODEL / TON | DHD100 | DHD200 | DHD300 | DHD400 | DHD500 | |
|---|---|---|---|---|---|---|
| Table Size | mm. | 800x1000 | 800x1000 | 1000x1200 | 1200x1400 | 1200x1500 |
| Stroke | mm. | 500 | 500 | 600 | 700 | 800 |
| Daylight | mm. | 600 | 600 | 700 | 900 | 1000 |
| Main Motor | kW. | 22 | 22 | 22 | 30 | 30 |
| Main Pump | lt. | 48 | 48 | 87 | 116 | 116 |
| Descending Speed | mm./sec. | 140 | 140 | 140 | 140 | 140 |
| Pressing Speed | mm./sec. | 13 | 11 | 10 | 13 | 12 |
| Return Speed | mm./sec. | 180 | 180 | 180 | 180 | 180 |

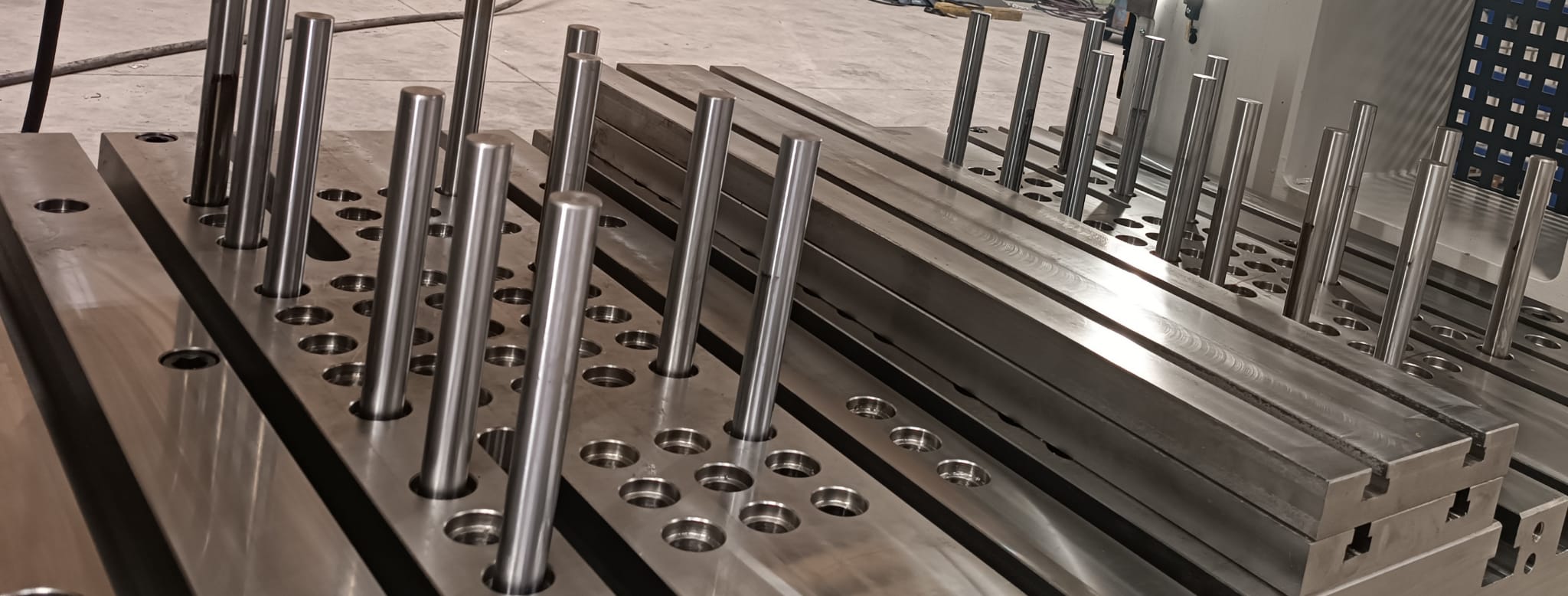

| Cushion Ton | T | 50 | 100 | 150 | 200 | 250 |
| Cushion Stroke | mm. | 250 | 250 | 300 | 350 | 400 |
| Weight | kg. | 8000 | 10000 | 15000 | 20000 | 23000 |
| Overall Dimension | mm. | 2200x2100x4200 | 2200x2100x4200 | 2400x2300x4500 | 2600x2500x4700 | 2600x2500x4900 |
| *For custom specifications or special orders, please contact us directly. | ||||||

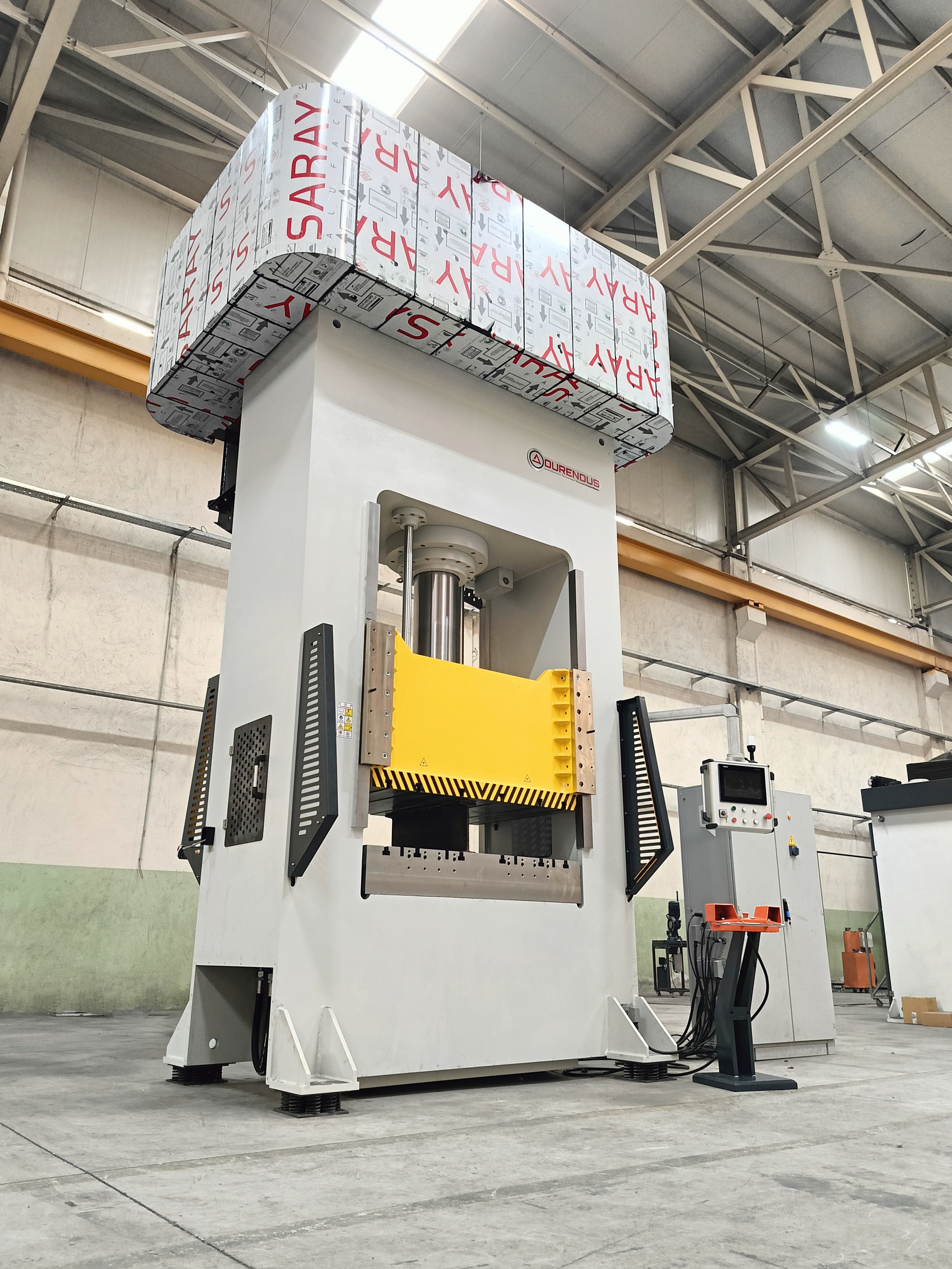

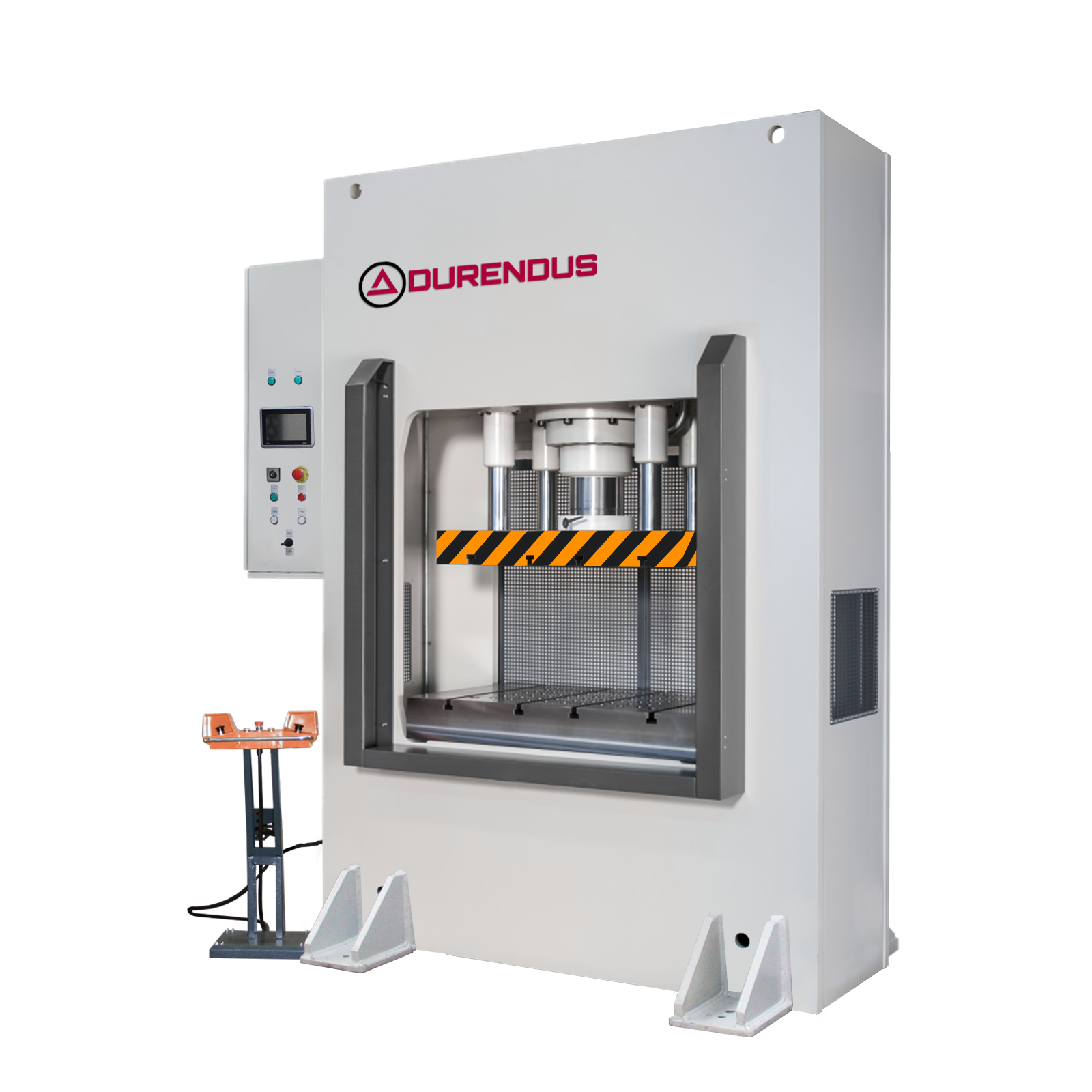

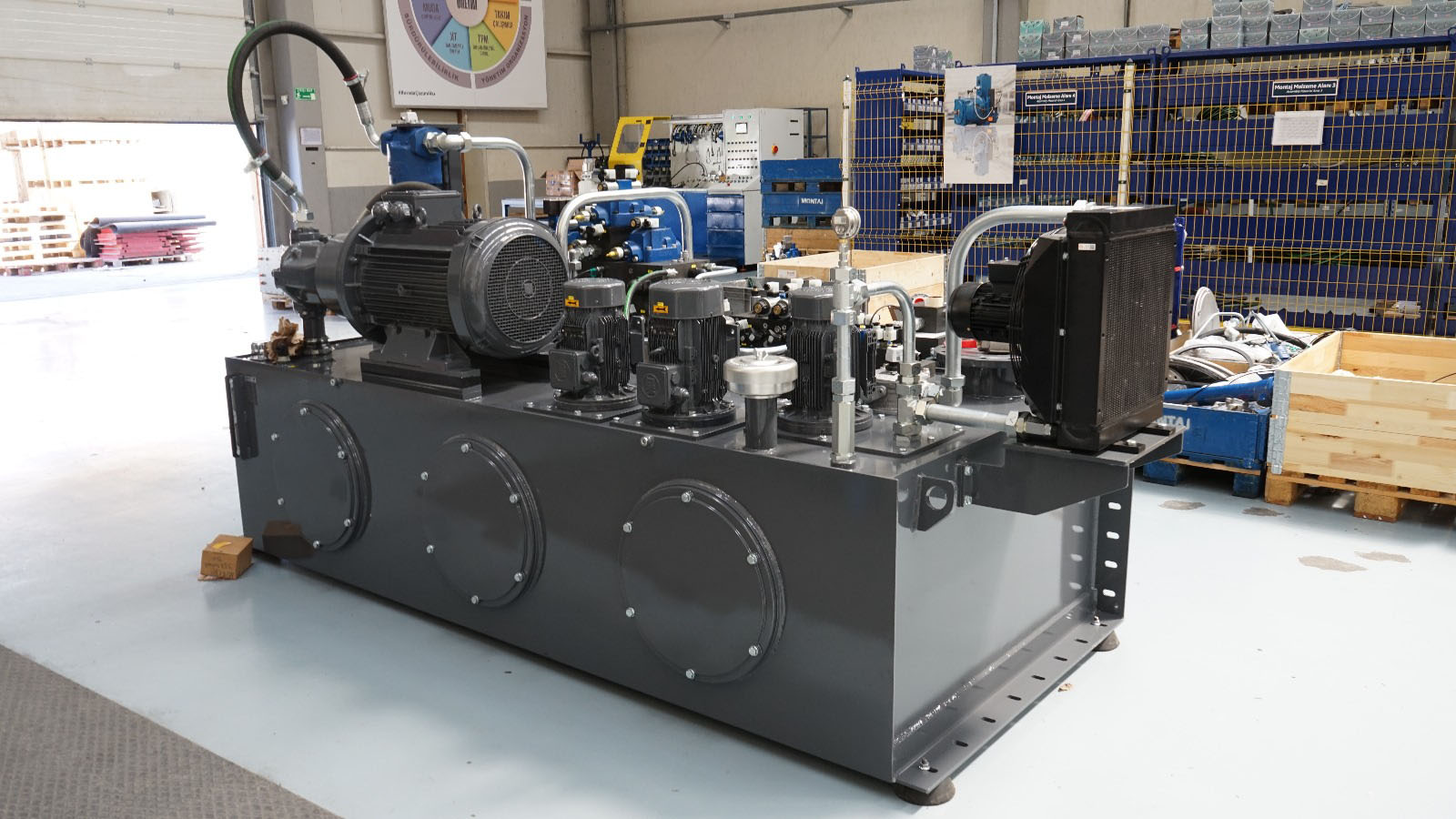

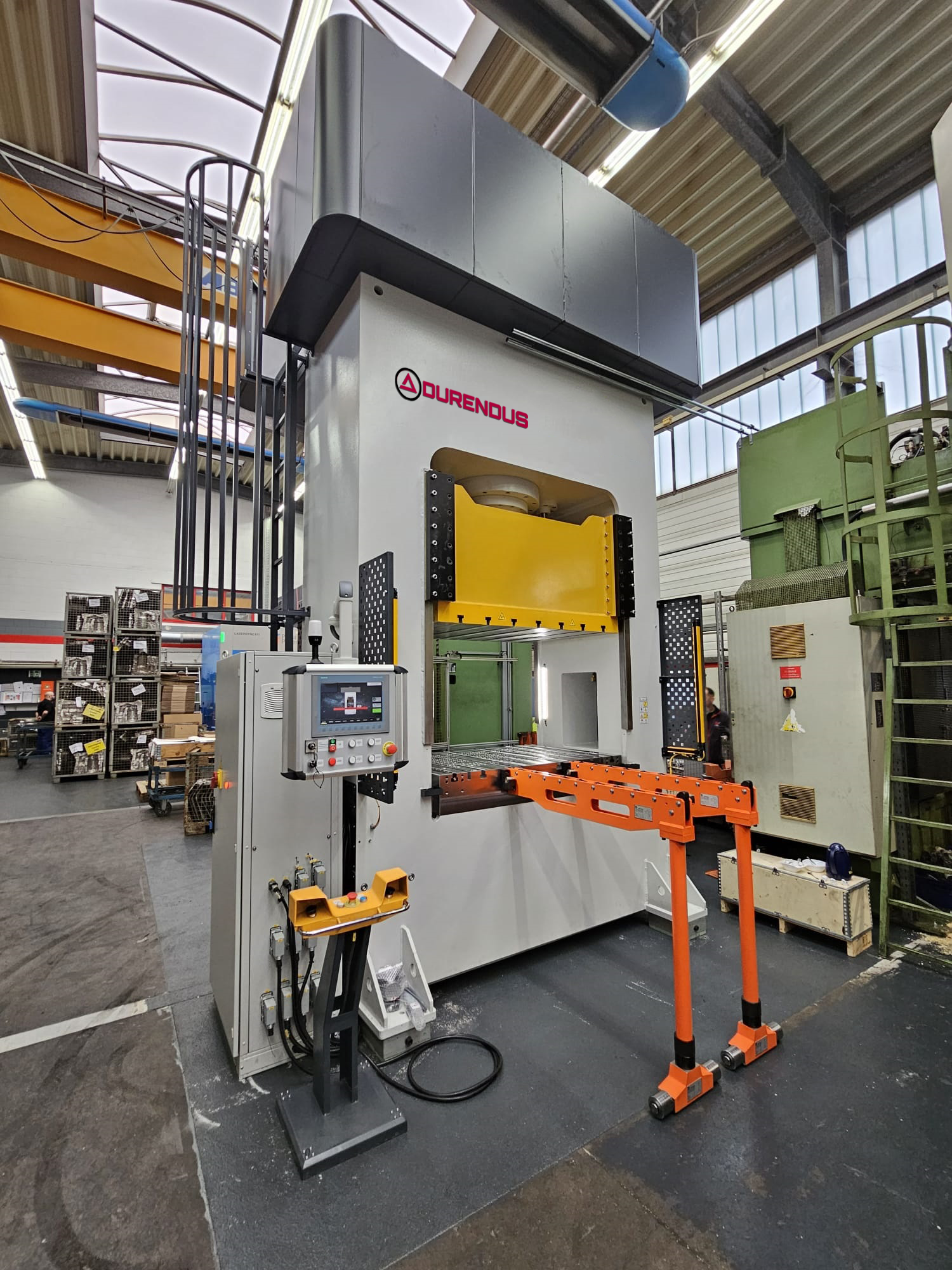

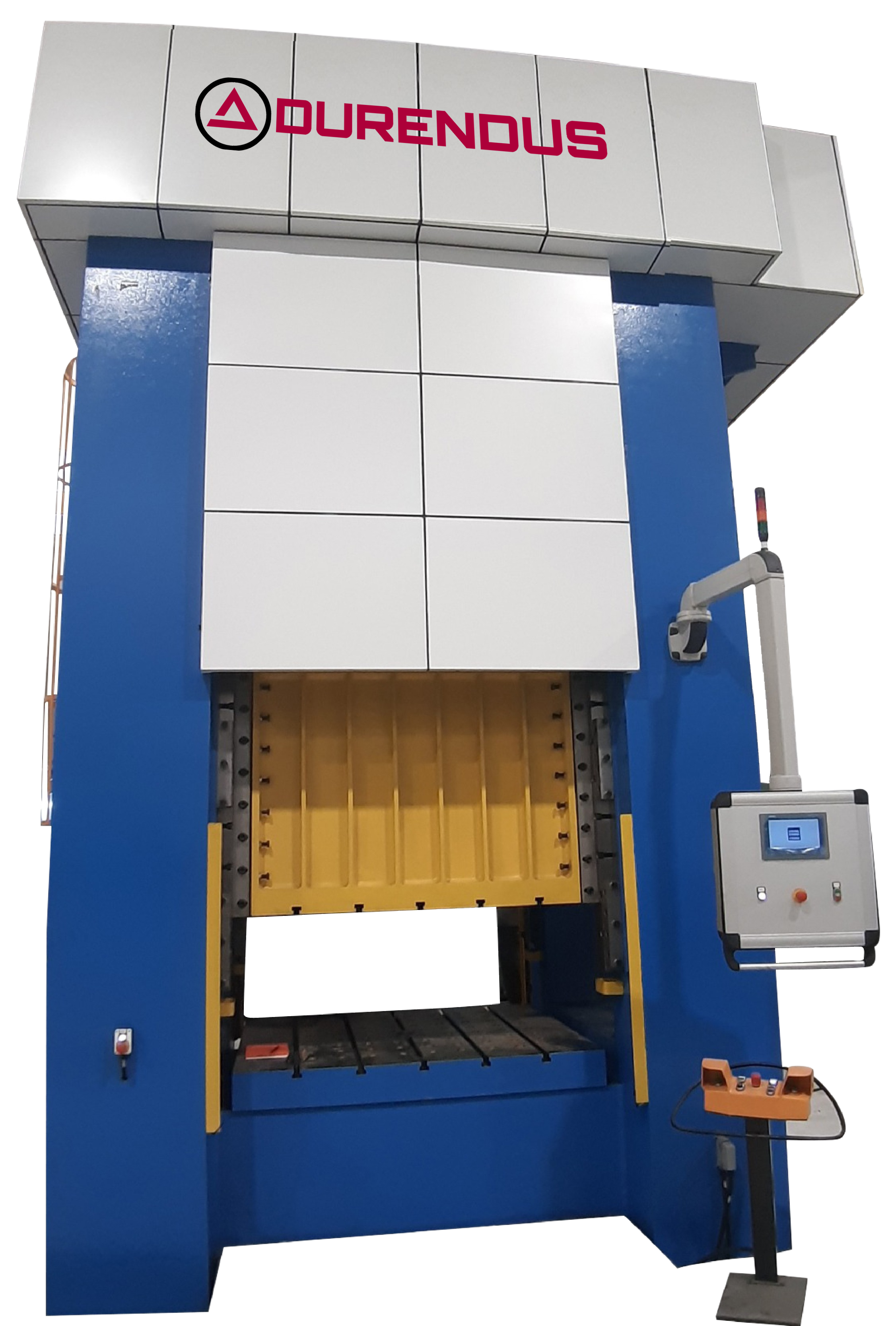

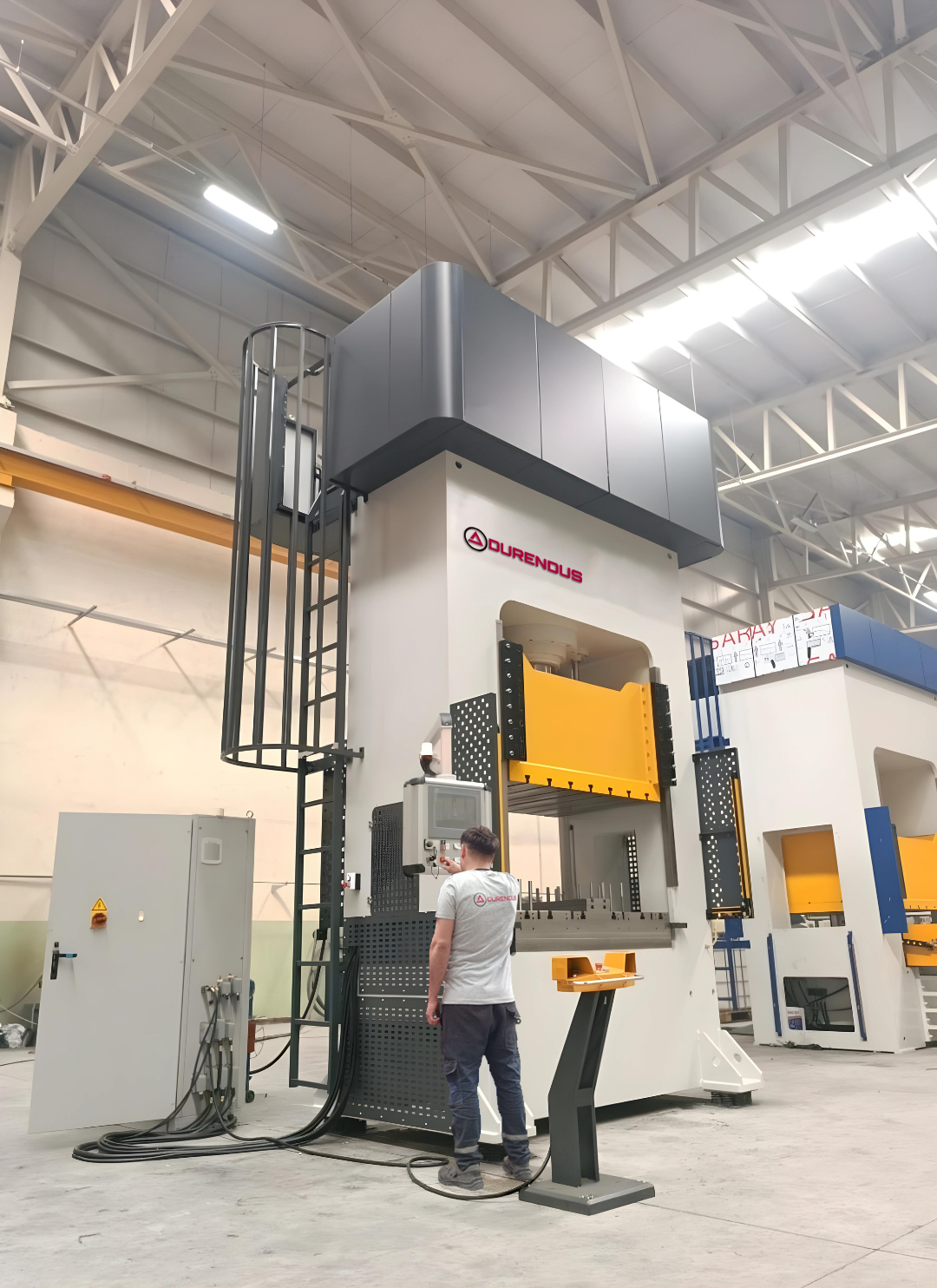

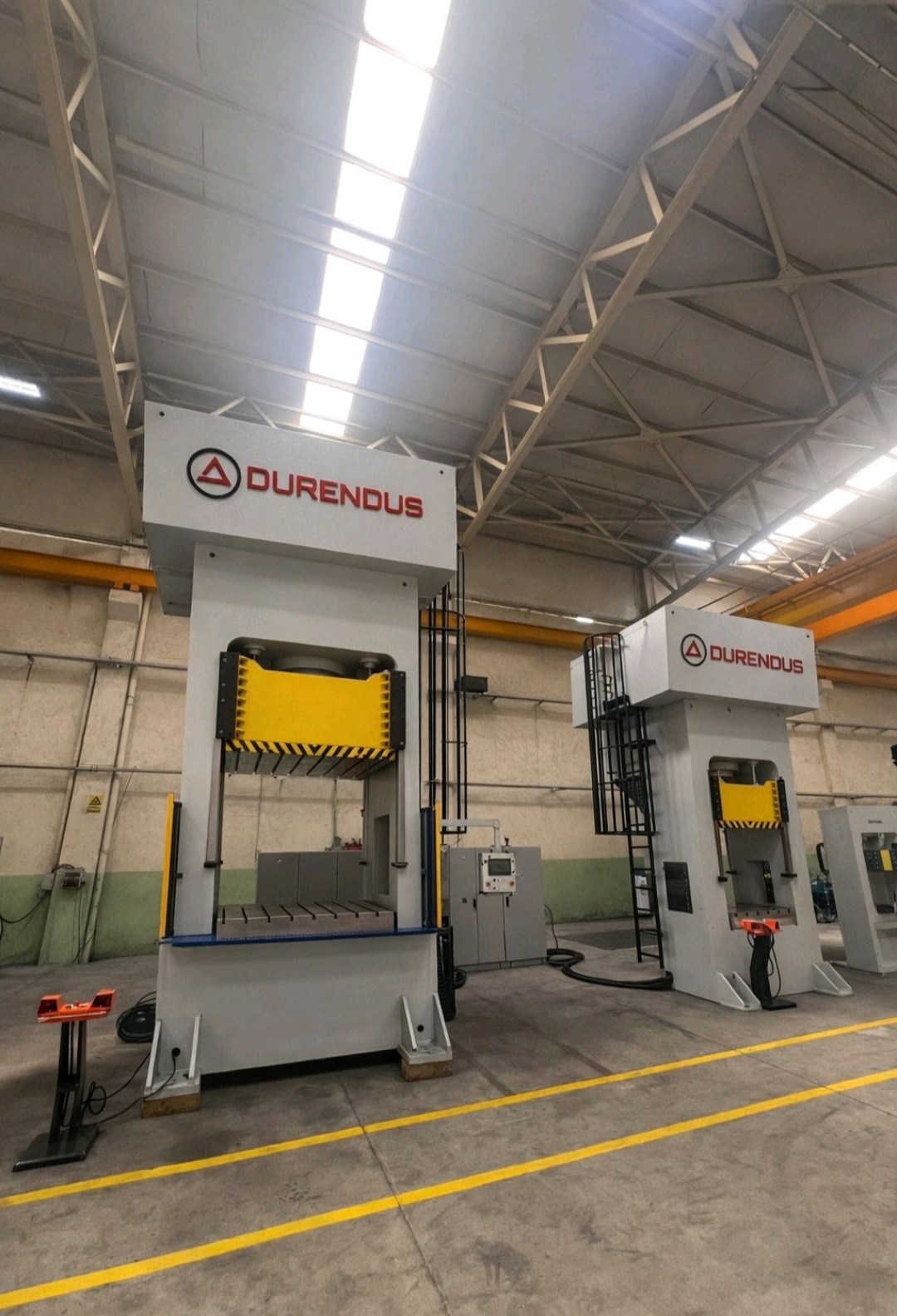

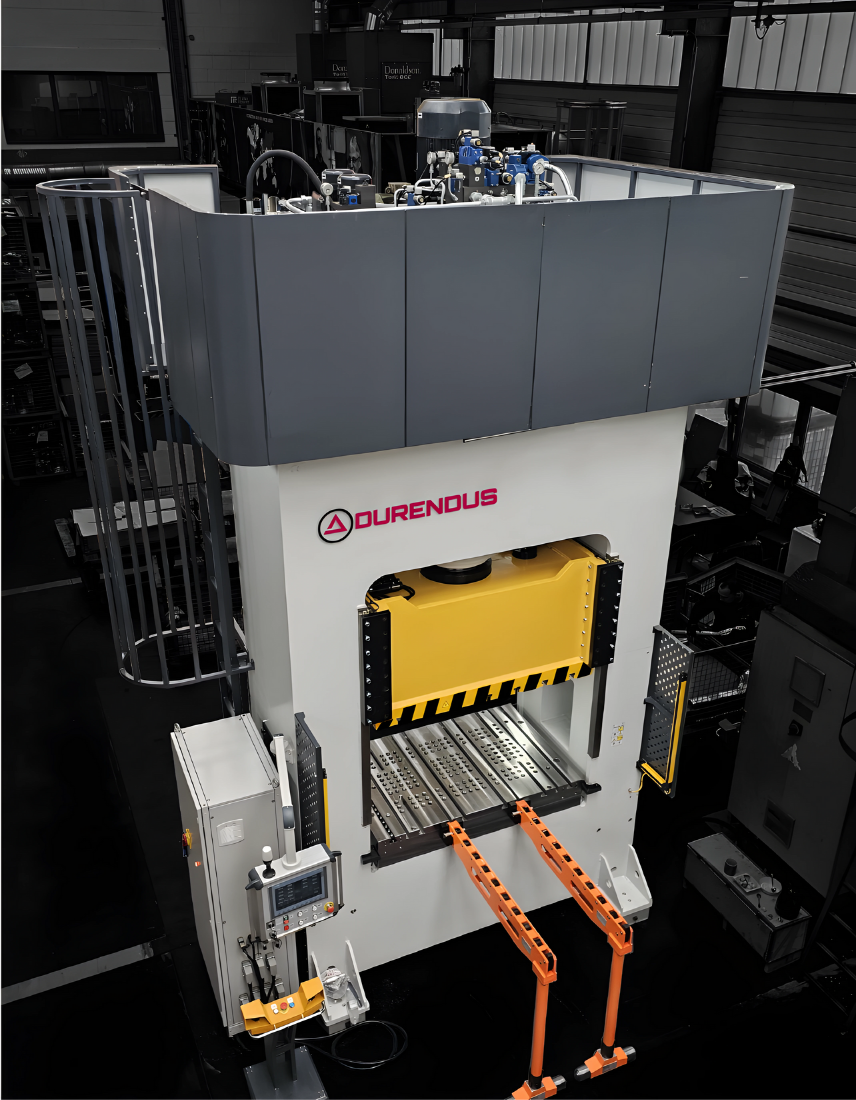

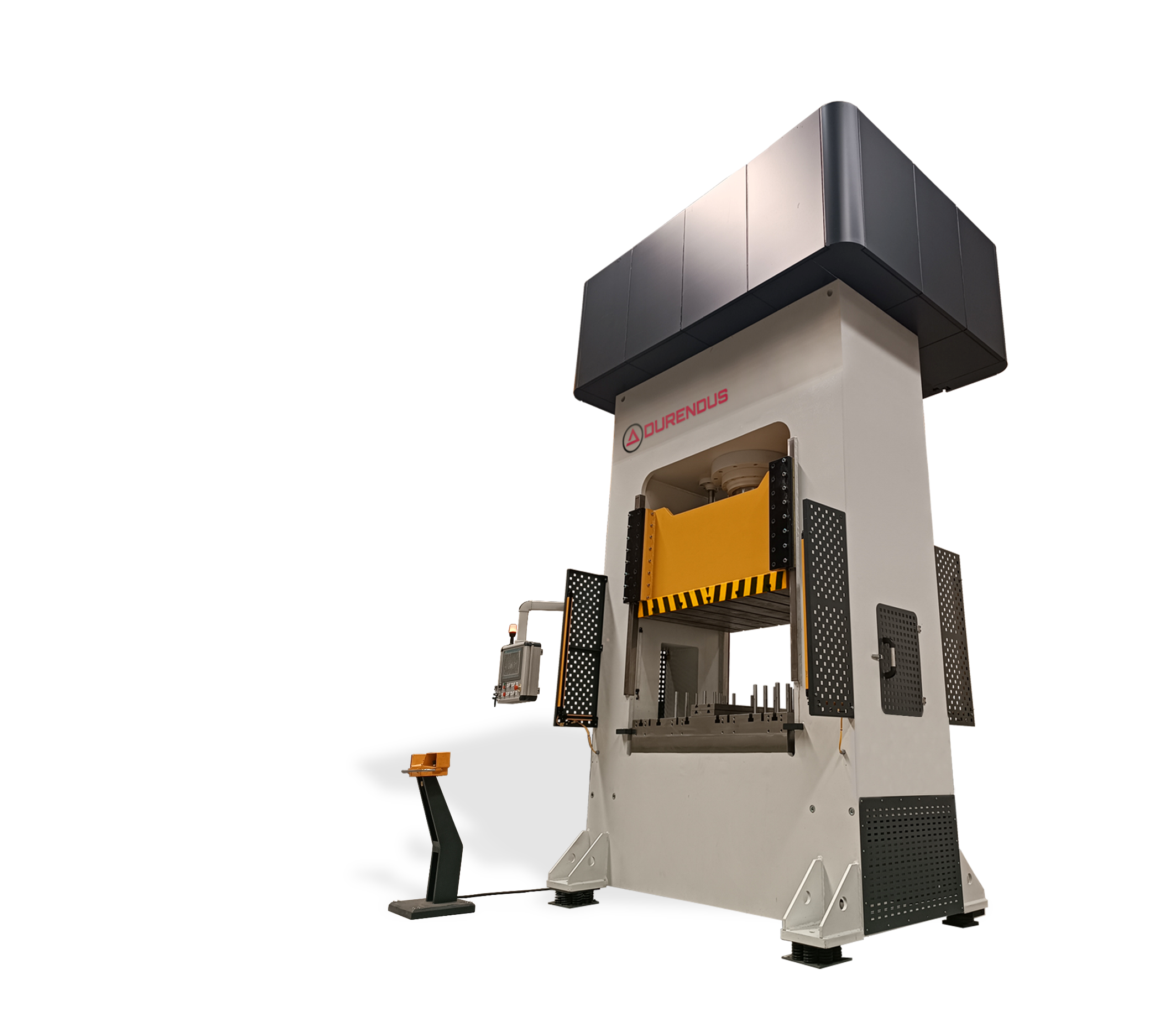

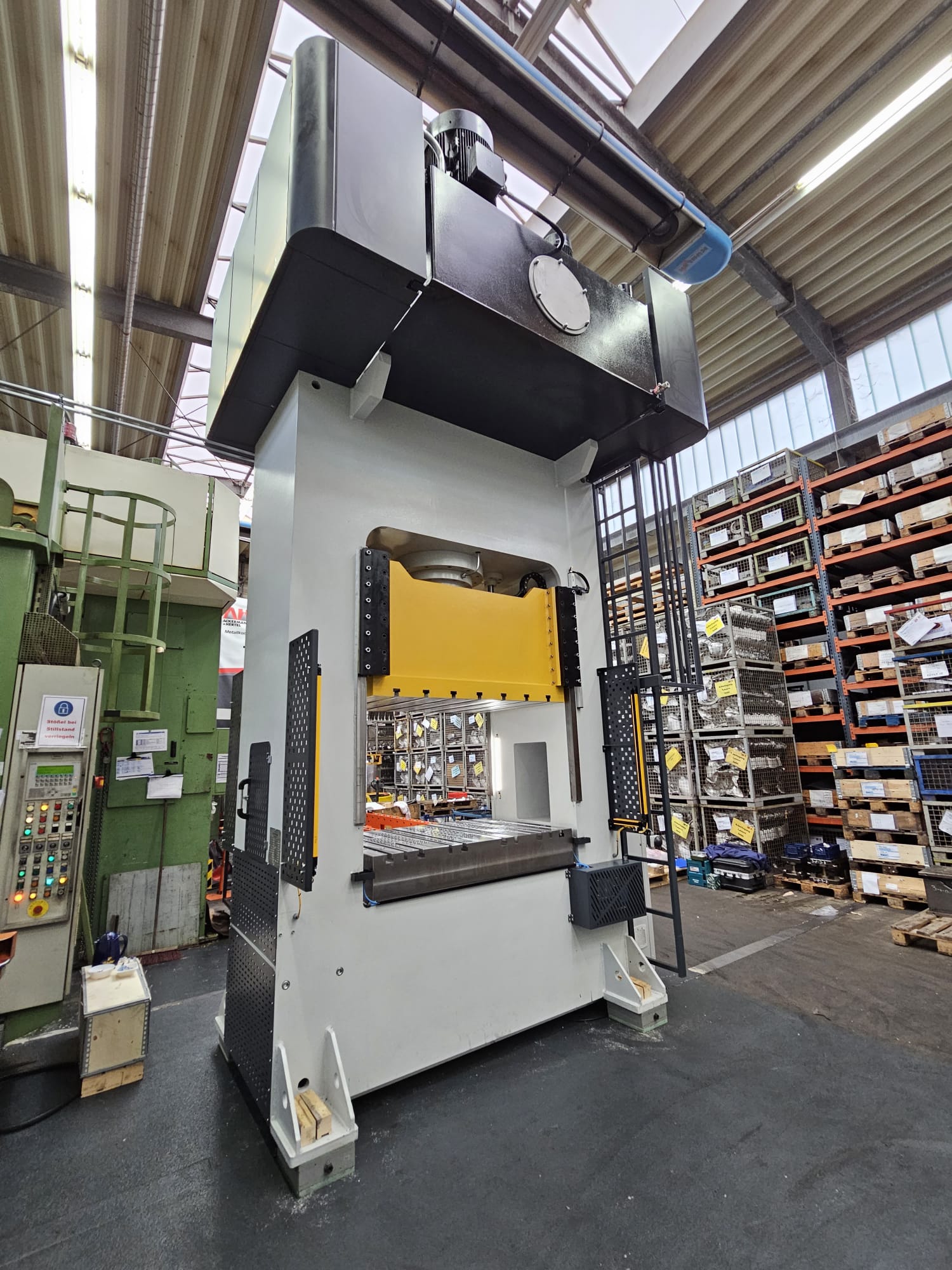

Deep drawing presses are essential in industries like automotive, household appliances, and electronics for producing metal-based components. Available in four body structures - H type, Column type, Workshop type, and C type - these presses can be customized in dimensions and tonnages according to customer requirements. They boast rapid approach speeds ranging from 10 to 400 mm/sec, facilitated by carefully designed hydraulic schemes using high-quality components. The presses' robust and precise structure ensures reliable performance over extended periods. With a commitment to innovation and quality, these presses meet diverse manufacturing needs in sectors like automotive and household appliances, offering speed, precision, and longevity in metal-based productions processes.
Standard Features
Optional Features
