| MODEL / TON | DPS100 | DPS200 | DPS300 | DPS400 | DPS500 | |
|---|---|---|---|---|---|---|
| Table Size (HxJ) | mm. | 750x1000 | 1150x1650 | 1600x2100 | 2100x3100 | 2100x4100 |
| Stroke | mm. | 400 | 500 | 500 | 600 | 600 |
| Daylight | mm. | 500 | 600 | 600 | 700 | 700 |
| Main Motor | kW. | 4 | 7,5 | 22 | 30 | 30 |
| Main Pump | lt. | 12 | 24 | 48 | 116 | 116 |
| Distance Between Columns (D) | mm. | 1050 | 1600 | 2100 | 2600 | 2600 |
| Table Height from Floor (E) | mm. | 800 | 850 | 900 | 950 | 1000 |
| Shut Height (G) | mm. | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm./sec. | 9,8 | 9,8 | 9,8 | 9,8 | 9,8 |
| Return Speed | mm./sec. | 21,5 | 21,5 | 21,5 | 21,5 | 21,5 |
| Weight | kg. | 3000 | 4500 | 9000 | 18000 | 32000 |
| Overall Dimensions (BxCxA) | mm. | 1700x1500x2200 | 2700x2500x2700 | 3300x3000x3000 | 3850x4000x3400 | 3950x5000x3500 |
| *For custom specifications or special orders, please contact us directly. | ||||||

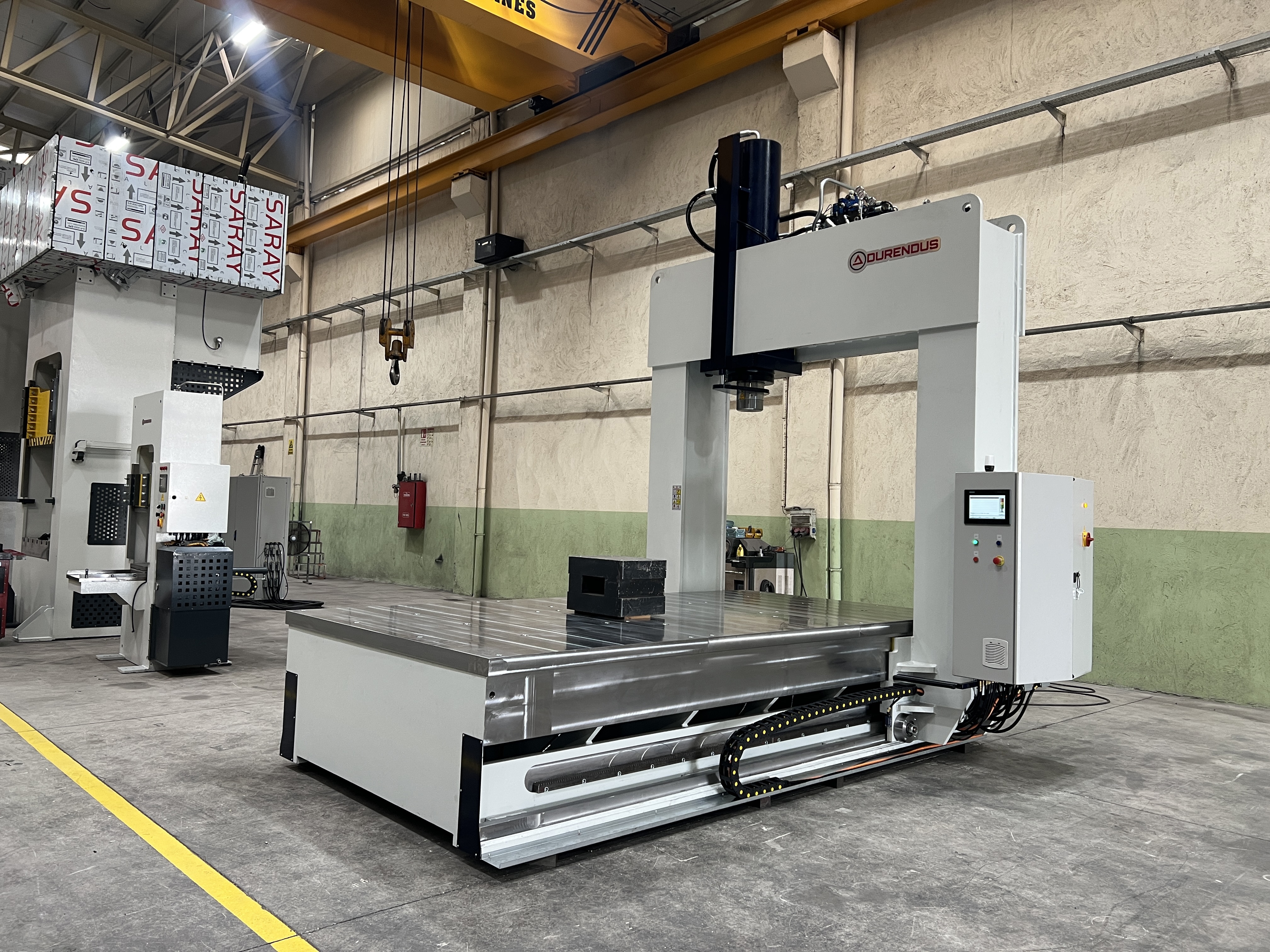

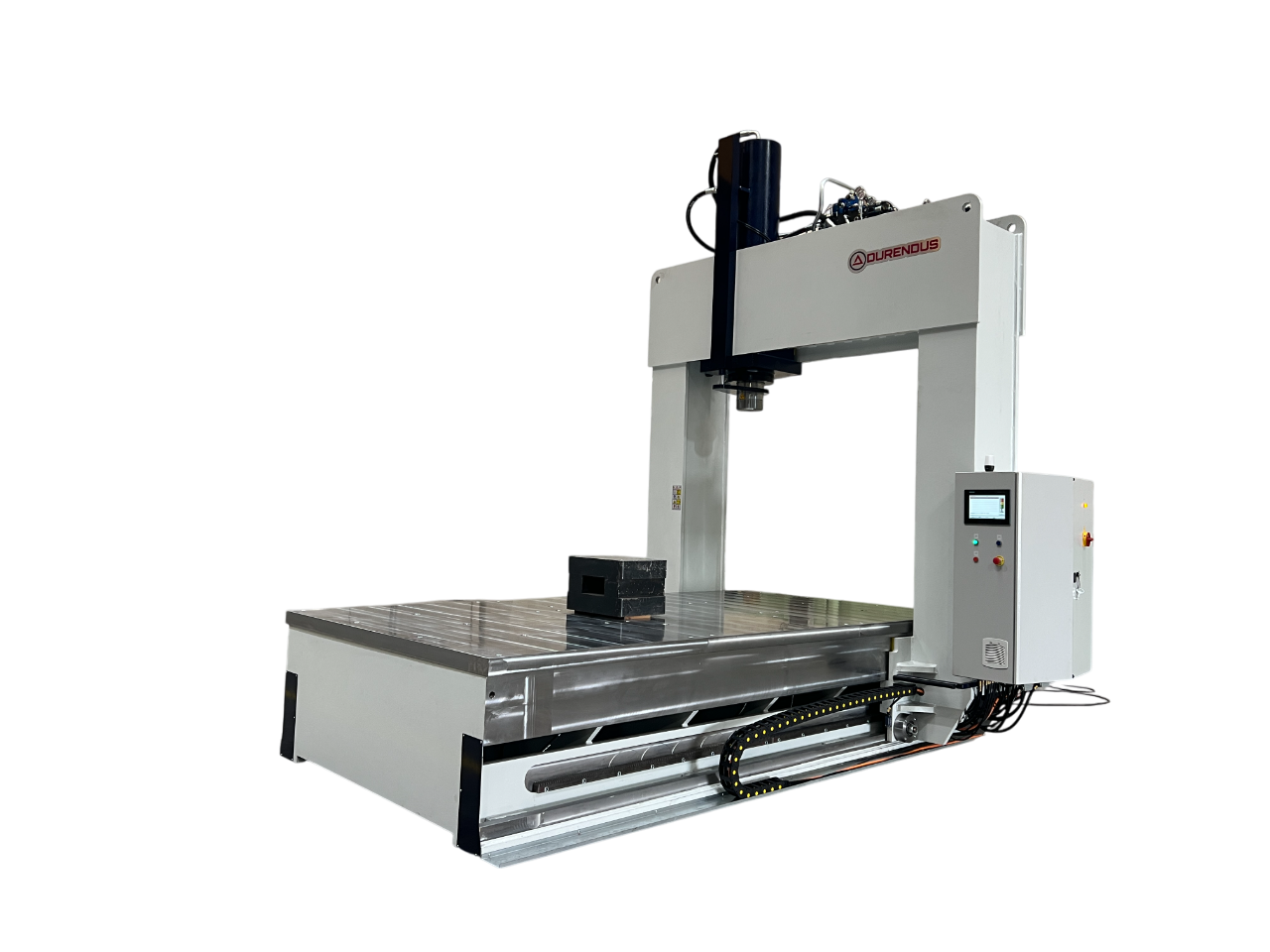

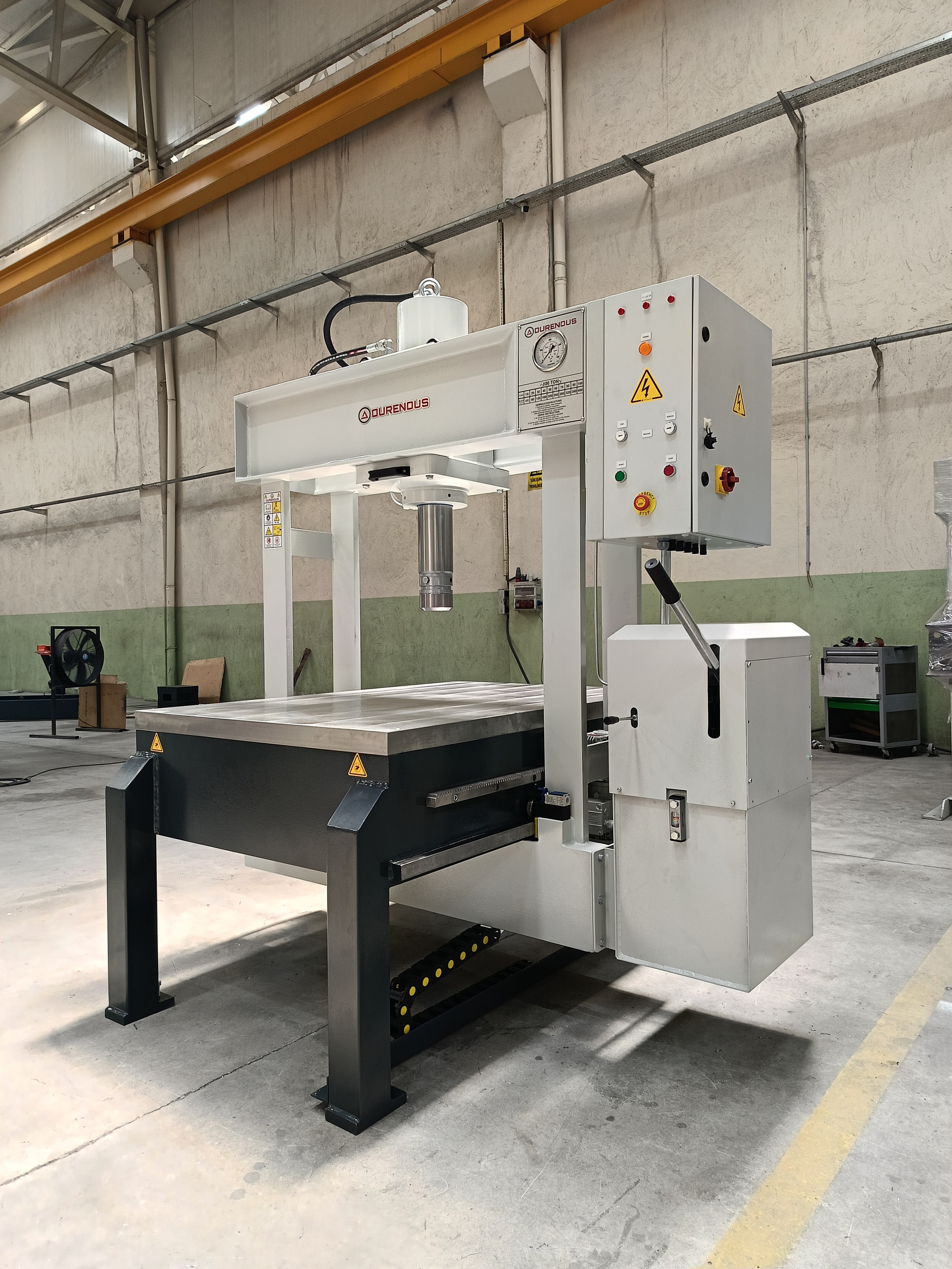

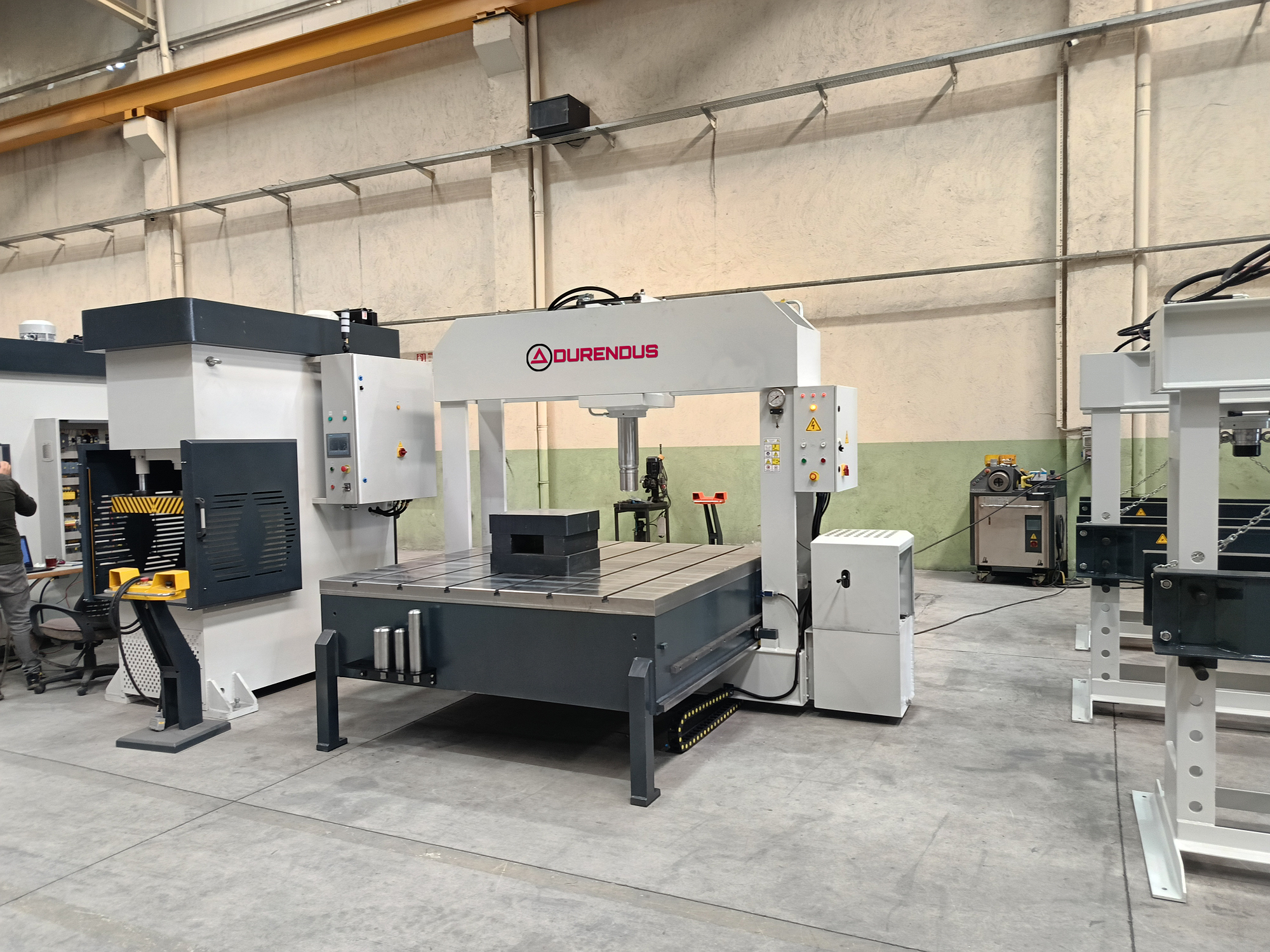

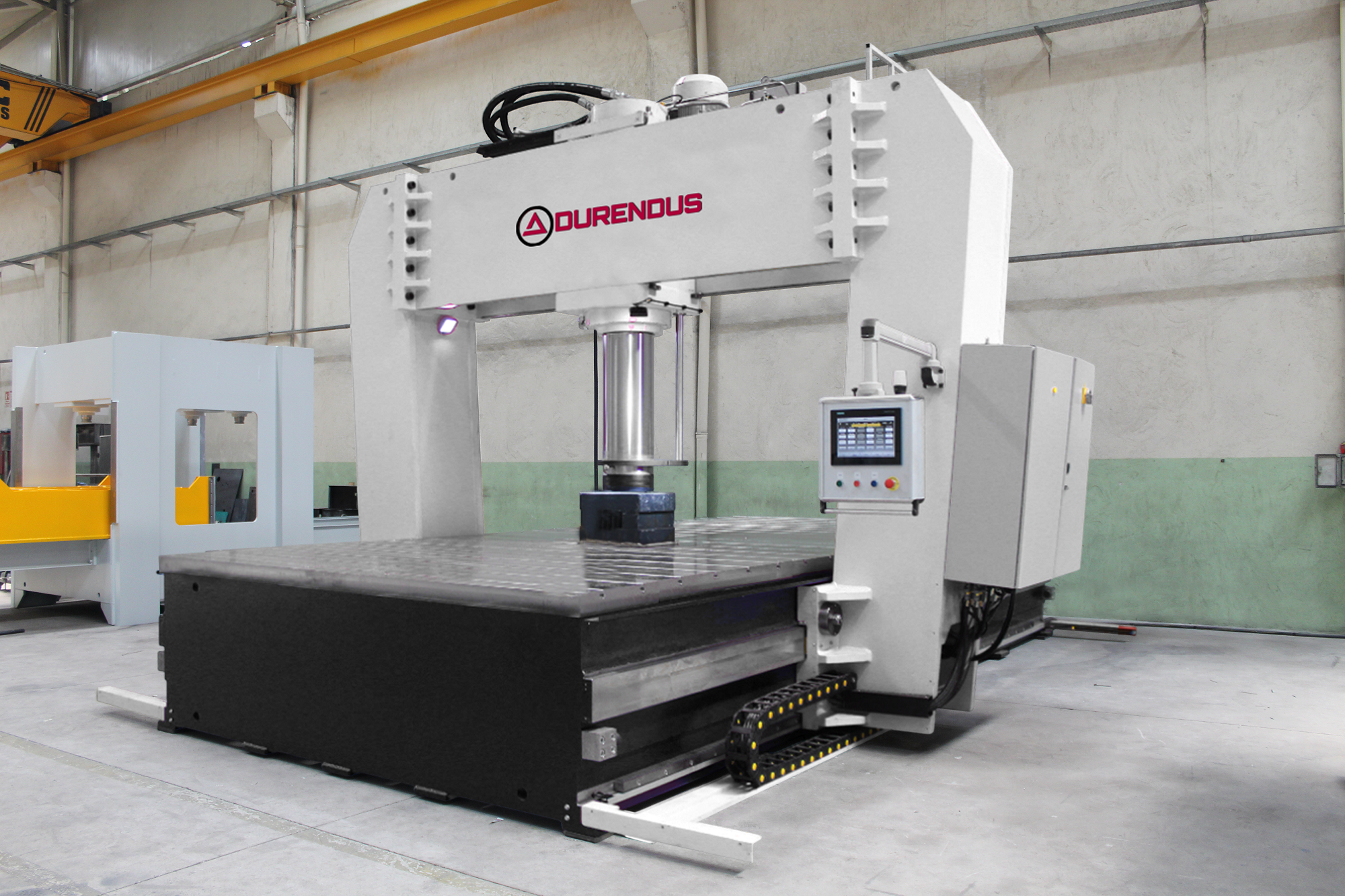

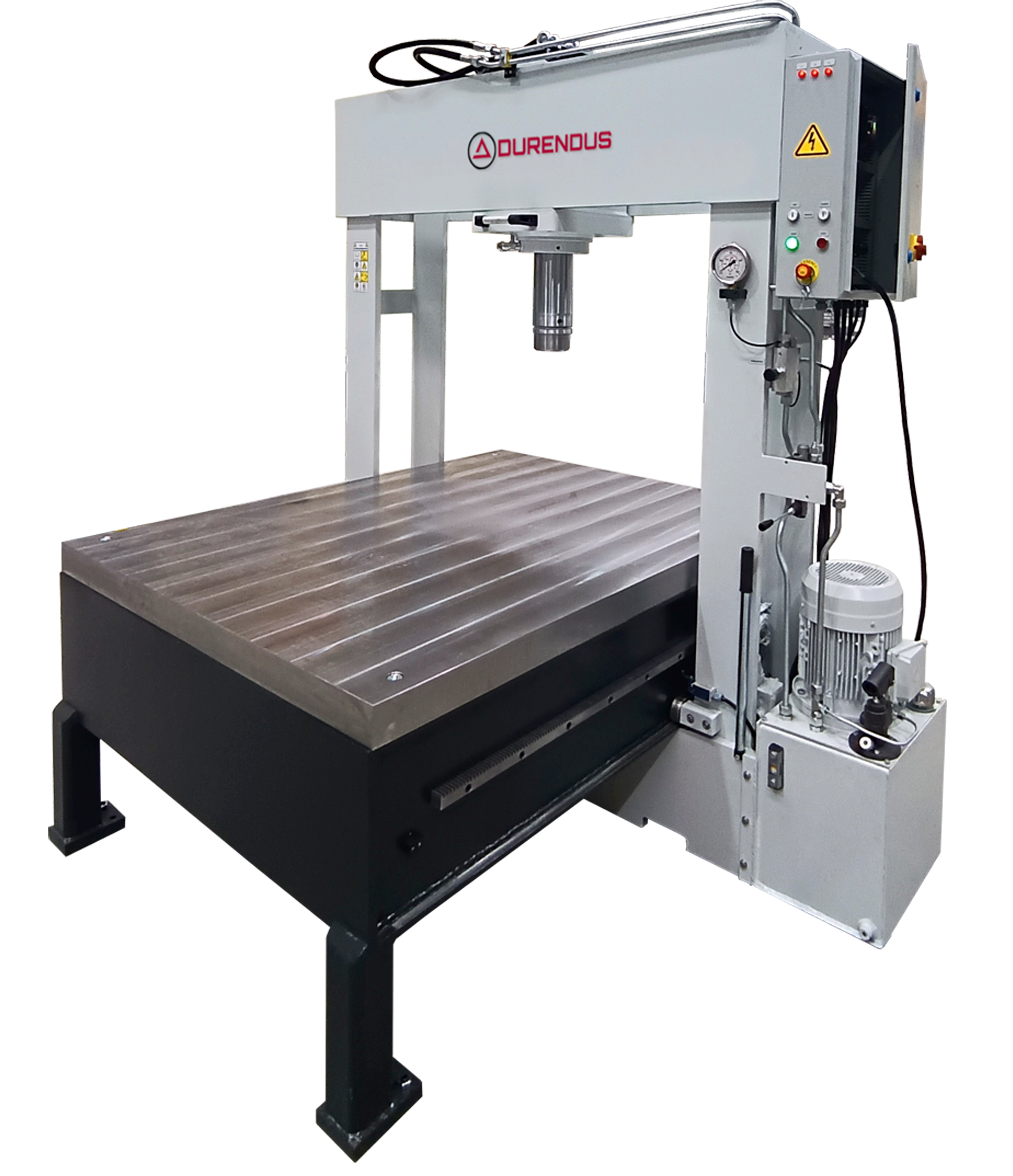

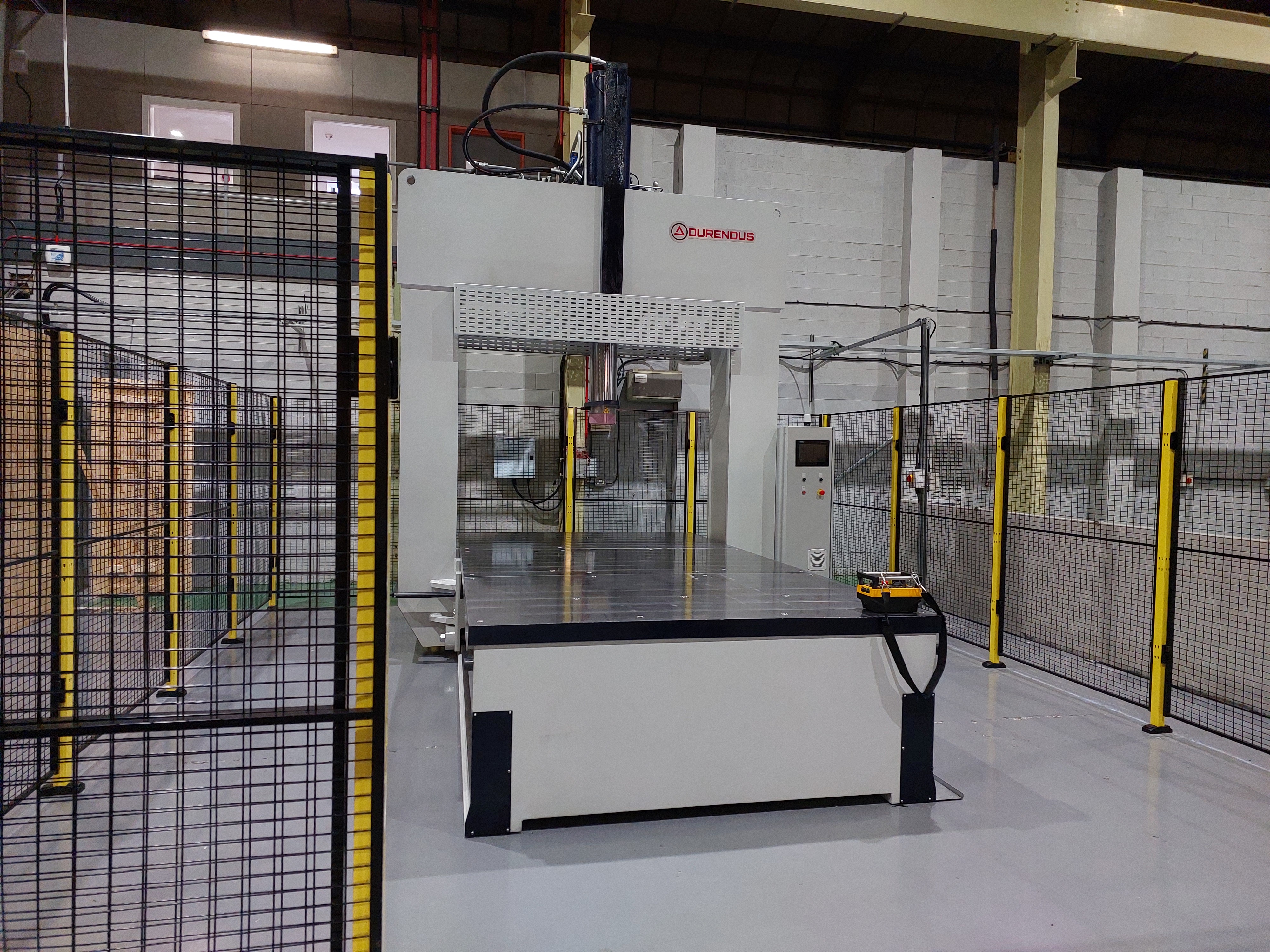

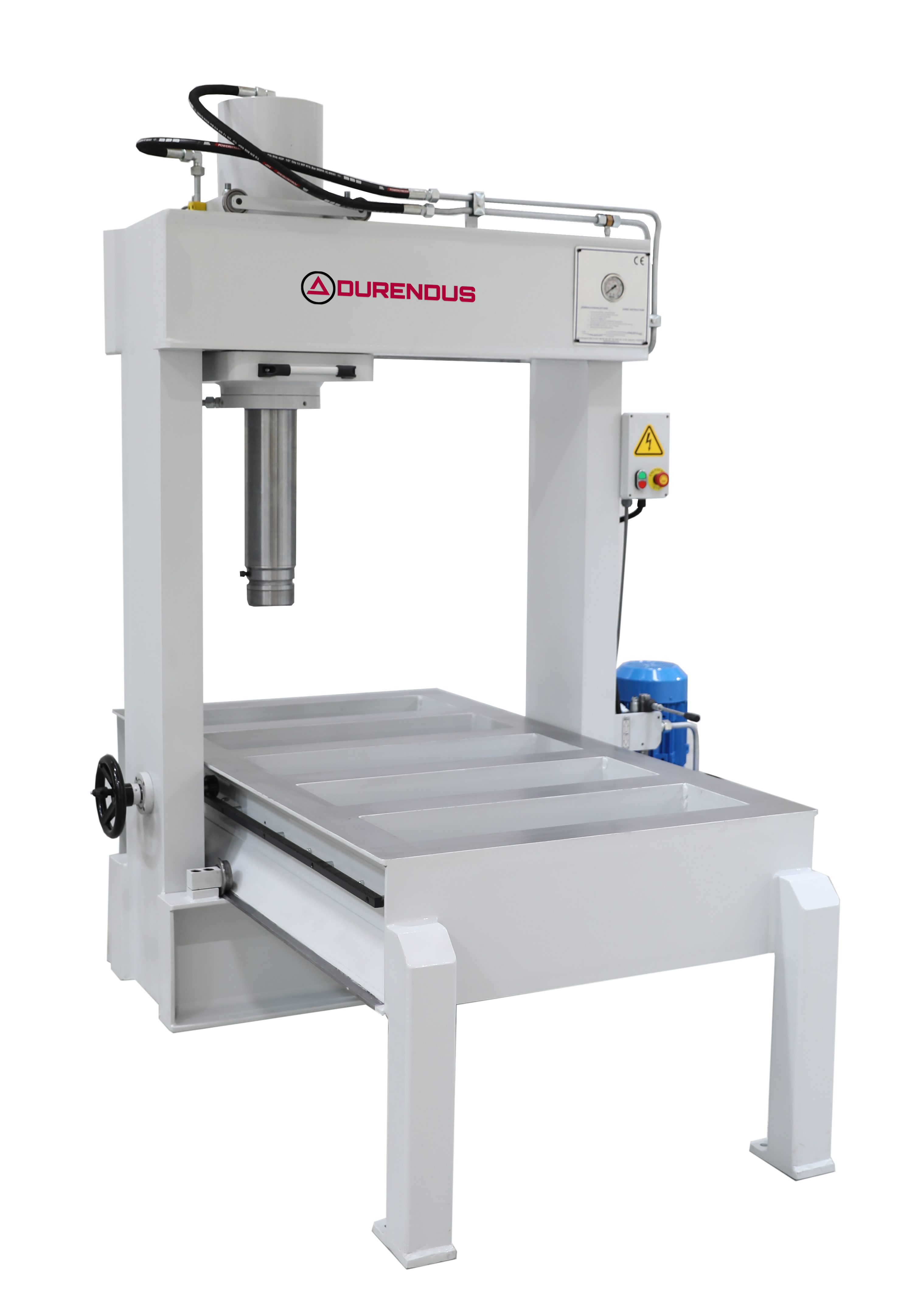

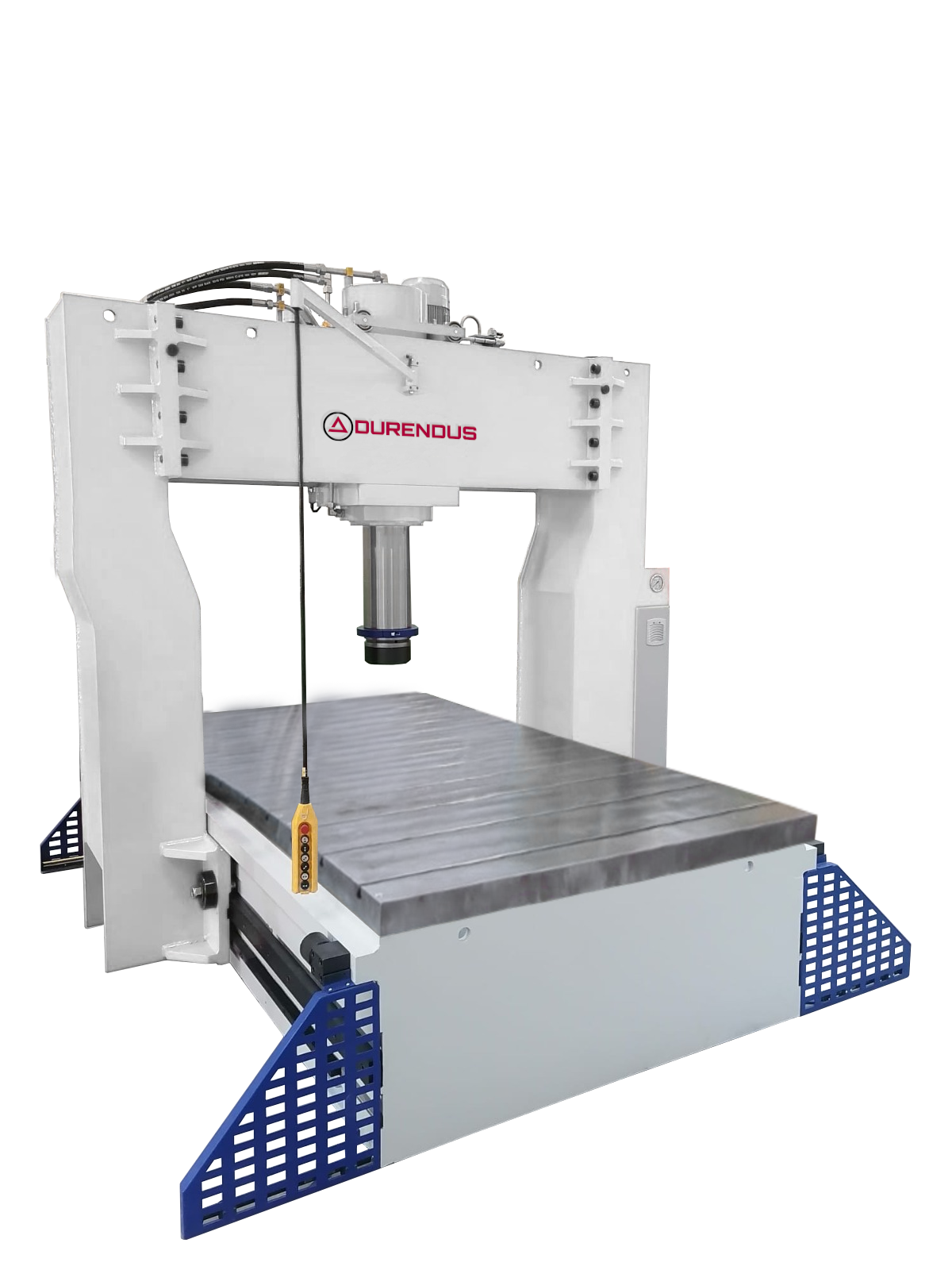

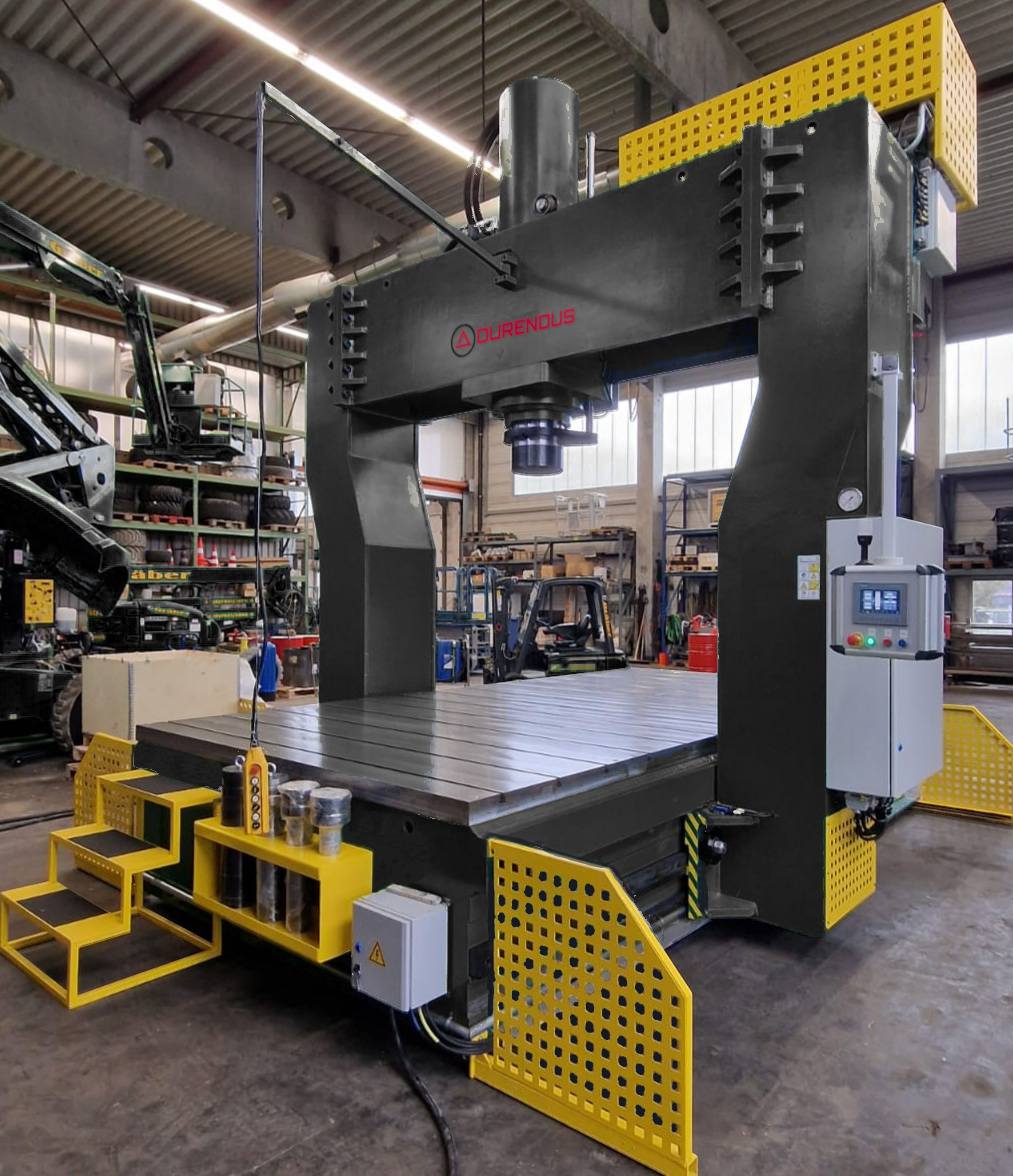

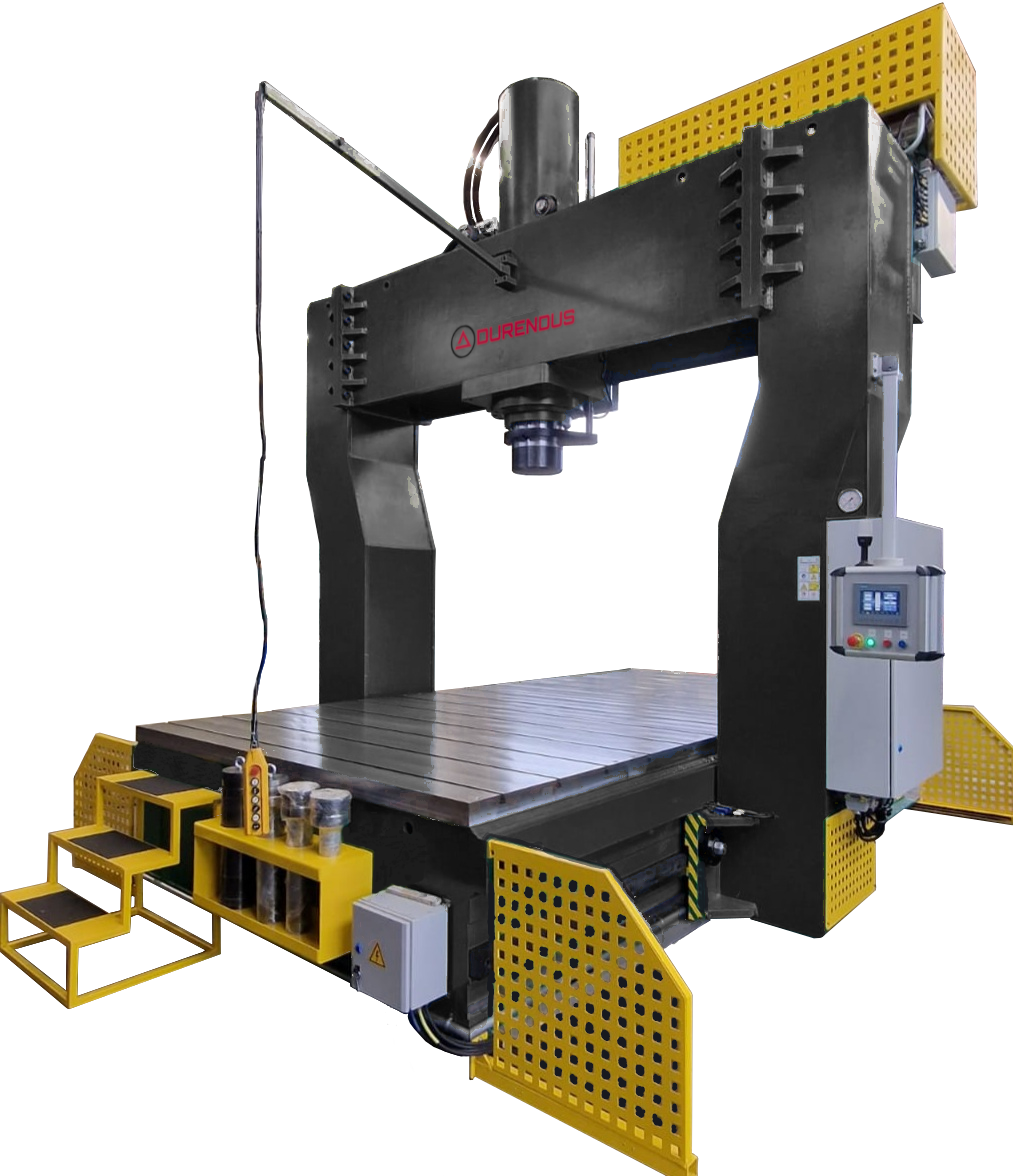

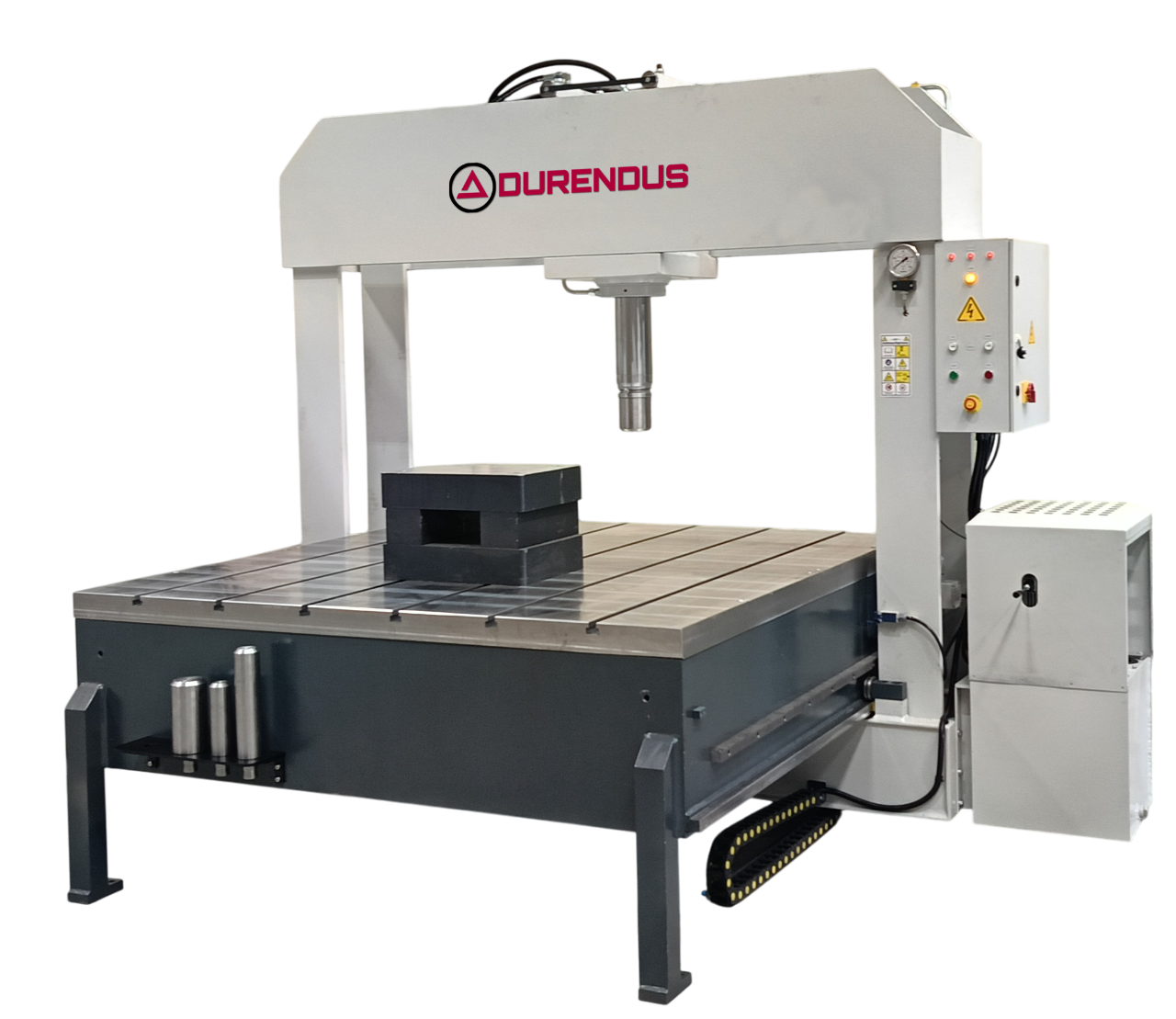

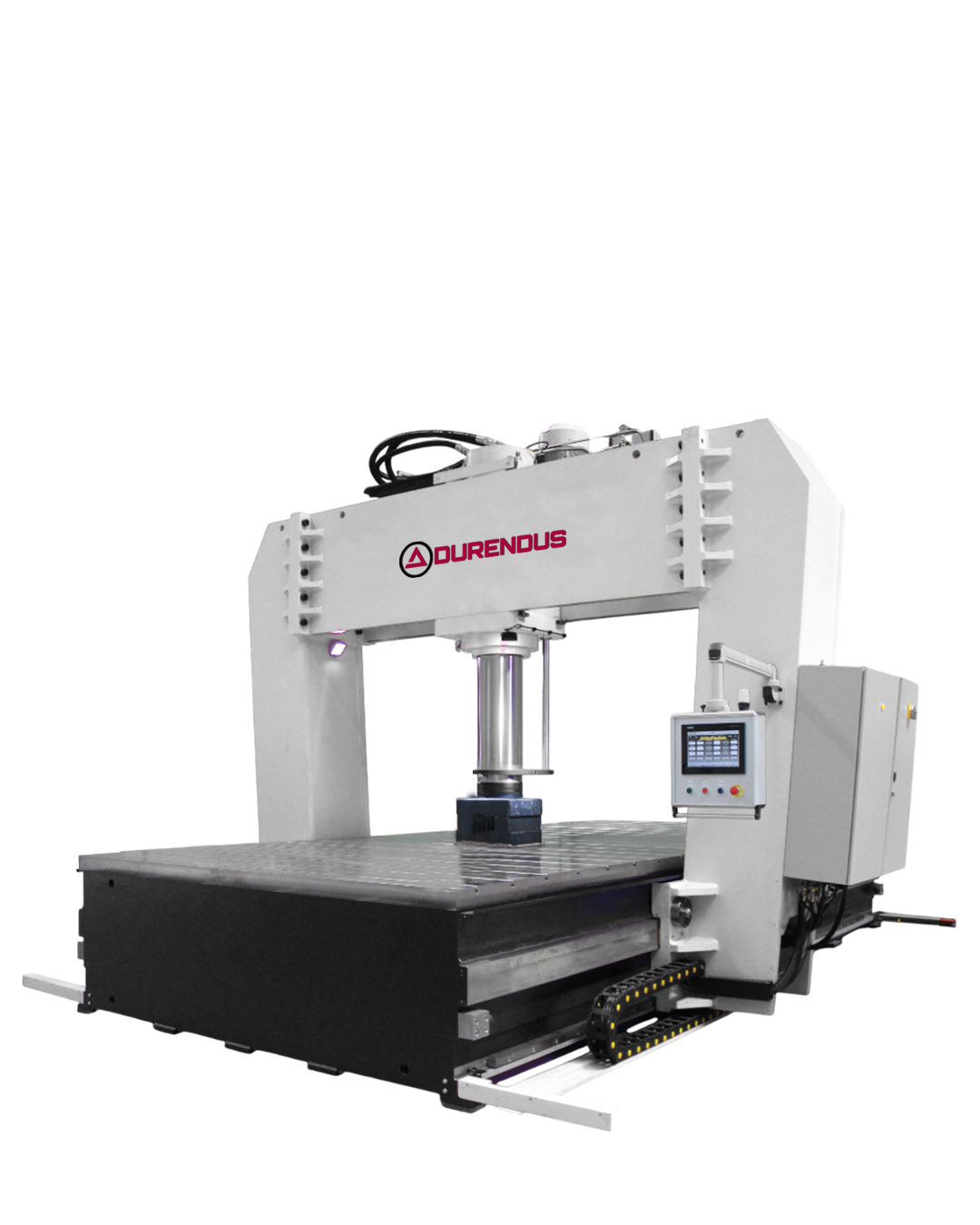

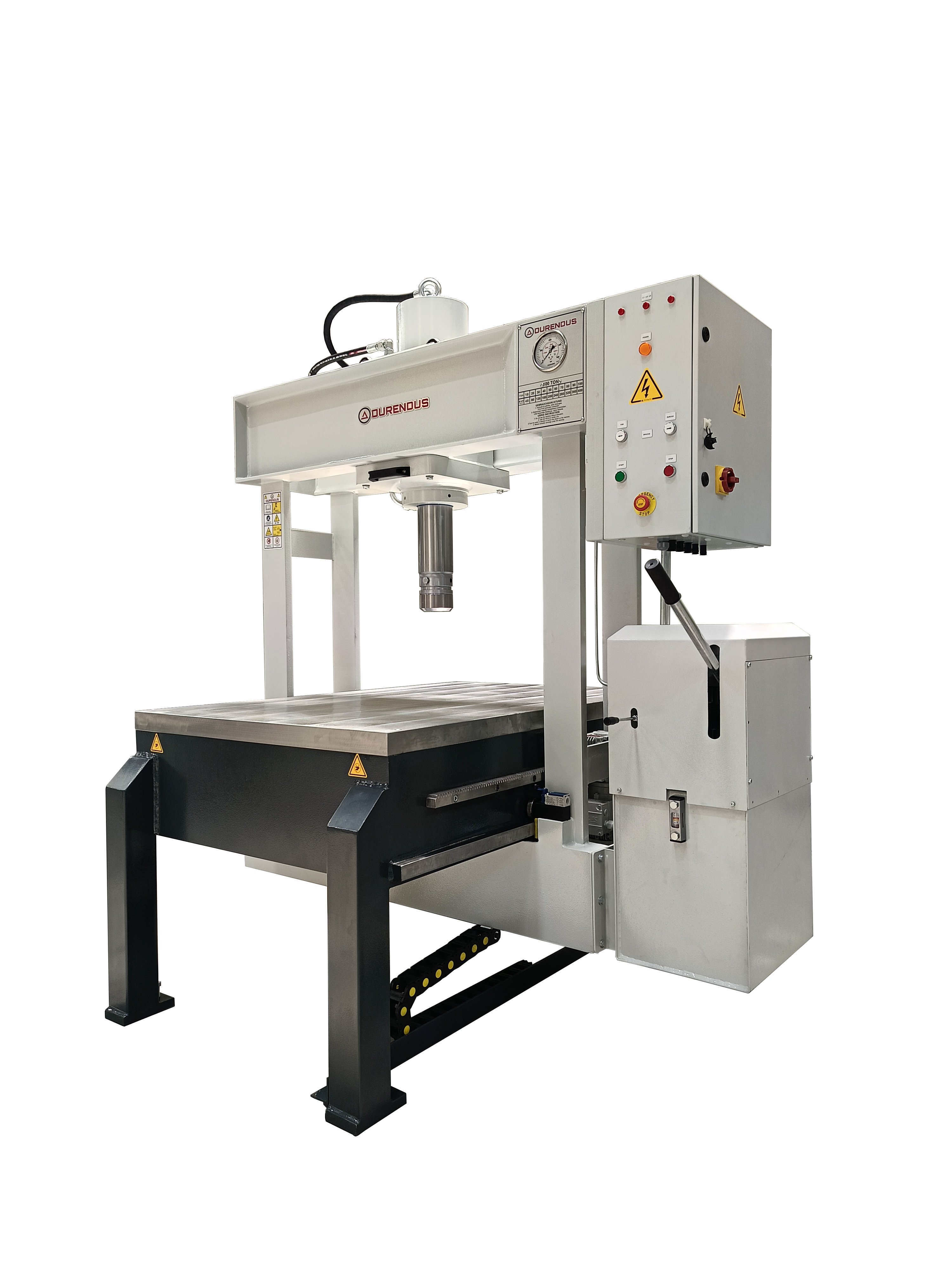

The DPS model is essential for rectifying metal curvature resulting from cutting processes like laser or oxygen plasma cutting, especially in welding applications. Designed specifically for straightening steel and iron materials, it accommodates diverse shapes like round and flat profiles. With three or four-axis movements, it ensures effective straightening, enhancing end-product quality. Its unique feature of three open edges provides flexibility, particularly advantageous for round-shaped materials, making it highly sought after, notably in the defense industry. Customizable in size, tonnage, and features, it offers tailored solutions aligning with customer preferences. Recognized for exceptional functionality and suitability for unconventional tasks, its versatility in various sizes, tonnages, and features makes it a practical choice in metalworking processes, contributing to efficiency and precision in modern industries.
