| MODEL / TON | DSM100 | DSM200 | DSM300 | DSM400 | DSM500 | |
|---|---|---|---|---|---|---|
| Press Force | kN. | 1000 | 2000 | 3000 | 4000 | 5000 |
| Table Size | mm. | 800x1000 | 800x1000 | 1000x1200 | 1200x1400 | 1200x1500 |
| Stroke | mm. | 500 | 600 | 800 | 800 | 1000 |
| Daylight | mm. | 500 | 600 | 800 | 800 | 1000 |
| Main Motor | kW. | 22 | 22 | 22 | 30 | 30 |
| Main Pump | lt. | 48 | 48 | 87 | 116 | 116 |
| Descending Speed | mm./sec. | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm./sec. | 15 | 8 | 10 | 10 | 8 |
| Return Speed | mm./sec. | 140 | 140 | 140 | 140 | 140 |
| Weight | kg. | 8000 | 9500 | 11000 | 12500 | 14000 |
| Overall Dimensions | mm. | 2200x2100x4200 | 2200x2100x4200 | 2400x2300x4500 | 2600x2500x4700 | 2600x2500x4900 |
| *For custom specifications or special orders, please contact us directly. | ||||||

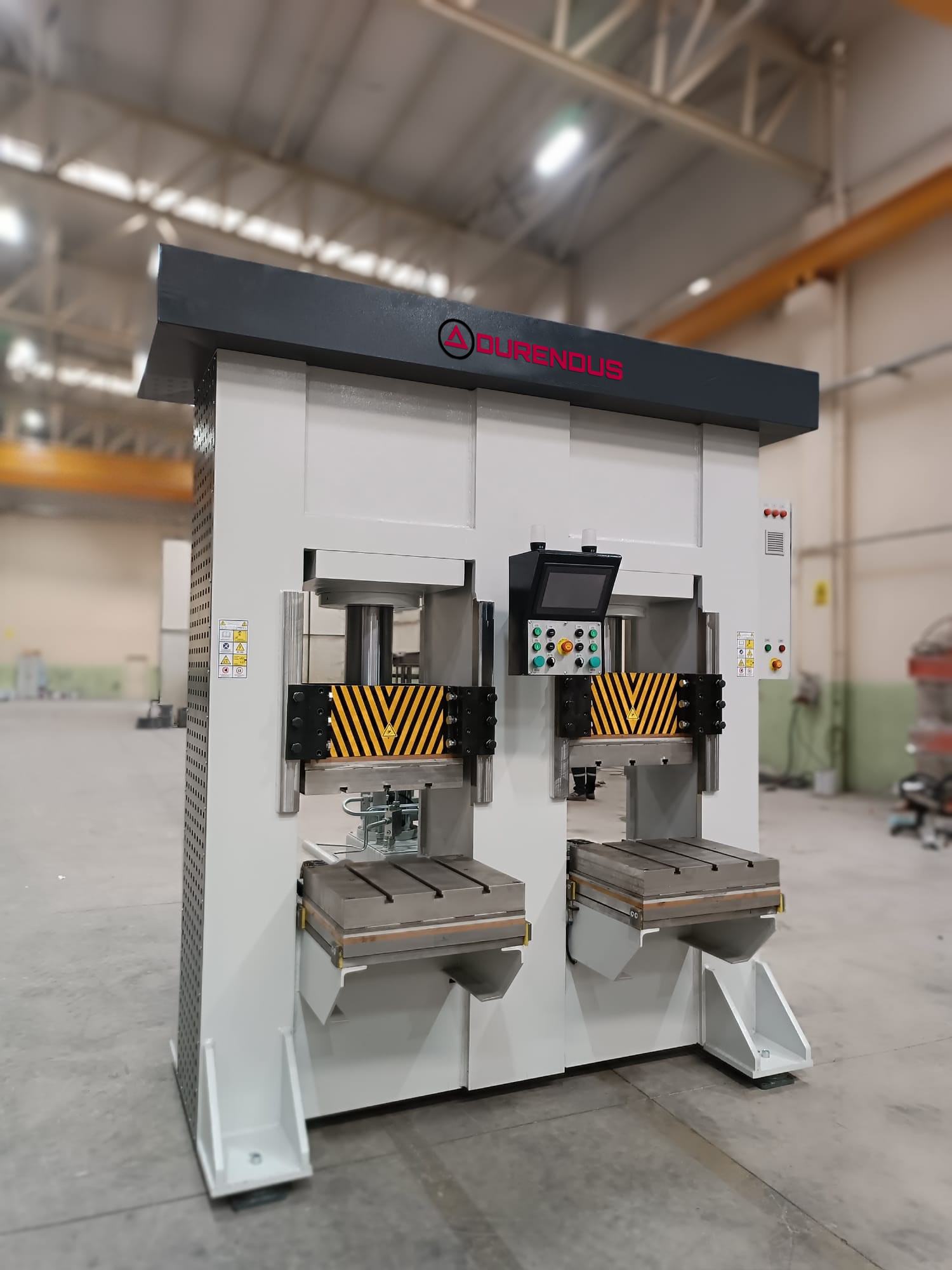

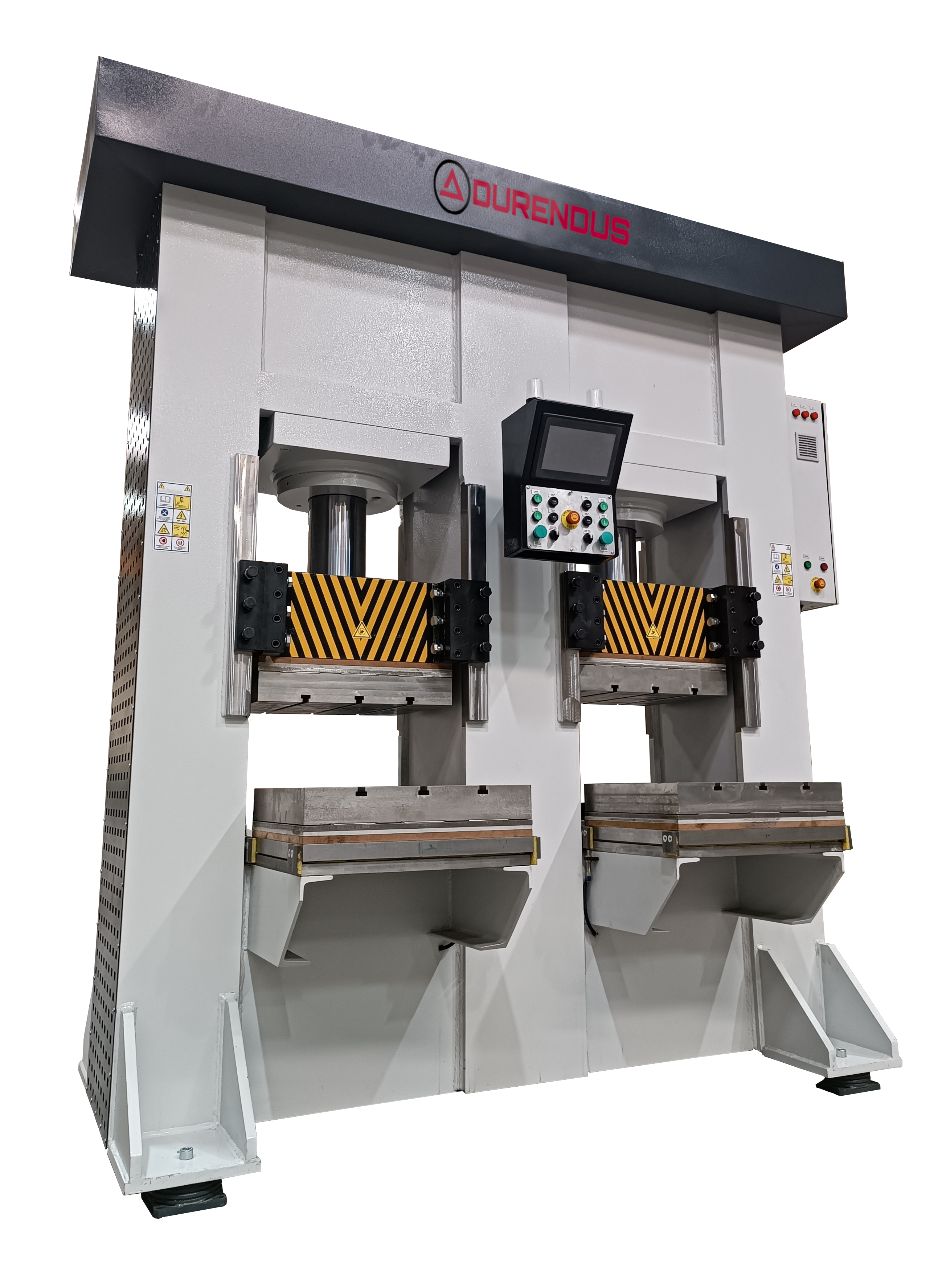

Presses designed for shaping hot molds play a crucial role in forming rubber-like materials in manufacturing processes. Their unique ability to accommodate hot molds and apply pressure ensures precise shaping, making them essential tools in various applications. Control over parameters such as waiting time, temperature rates, pressure force, and air discharge is critical for flawless mold-forming. These presses offer structural versatility, allowing for tailored solutions to meet specific manufacturing needs, enhancing efficiency. Customizable in size, tonnage, and features, they provide flexibility to address unique project demands, reflecting a commitment to customer satisfaction and delivering cutting-edge solutions for manufacturing excellence.
Standard Features
Optional Features
